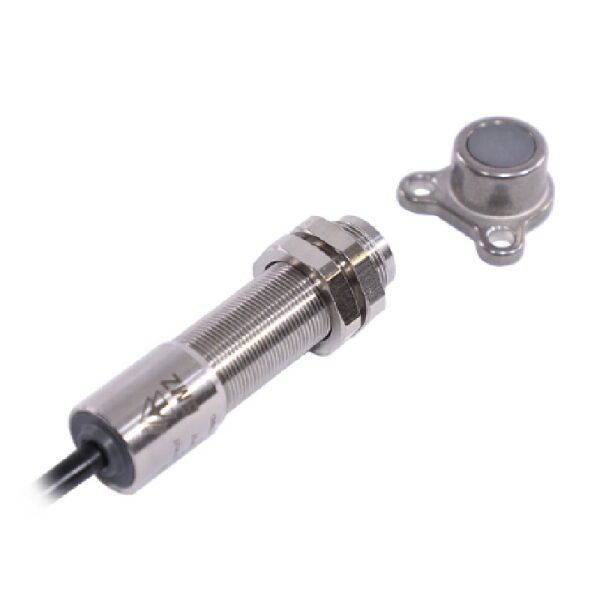

RFID Non-Contact Safety Interlock Switch with OSSD (BMZ:M18)
The BMZ non-contact machine guard safety switch features RFID-coded sensor and OSSD PNP outputs, meeting high-level coding requirements and Type 4 compliance with ISO14119. The M18 barrel is robust and versatile, suitable for installation directly into machine guard frames.
- Housing/Fixing
- M18 Threaded Barrel
- Contacts
- 2 OSSD Outputs (PNP) + 1 Auxiliary Output (PNP)
- Sensing Distance
- 8mm ON / 20mm OFF
- Connection
- Pre-Wired or M12 8-Pole Quick Connect
- Indication
- Three LED’s for Guard, Code, Input and Output Status
- Switching capability
- 0.2A (Requires 24Vdc supply to operate)
Informații privind UL508
Maximum Temperature +50 °C
Maximum Output 24V.dc 100mA
Powered by Class 2 or equivalent.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 411101 | BMZ-U 5M |
| 411102 | BMZ-U 10M |
| 411103 | BMZ-U QC-M12 |
| 411001 | BMZ-M 5M |
| 411002 | BMZ-M 10M |
| 411003 | BMZ-M QC-M12 |
| 411200 | Replacement Actuator Master Coded |
