Robotics
Robotic cells, safe programming and access control
Industrial robots move fast and with great force, in a space the operator enters frequently for programming, tool changes or troubleshooting. The risk comes not only from the motion itself, but from its unpredictability: a robot can start a sequence at any moment, and the trajectory is not always obvious to someone inside the cell.

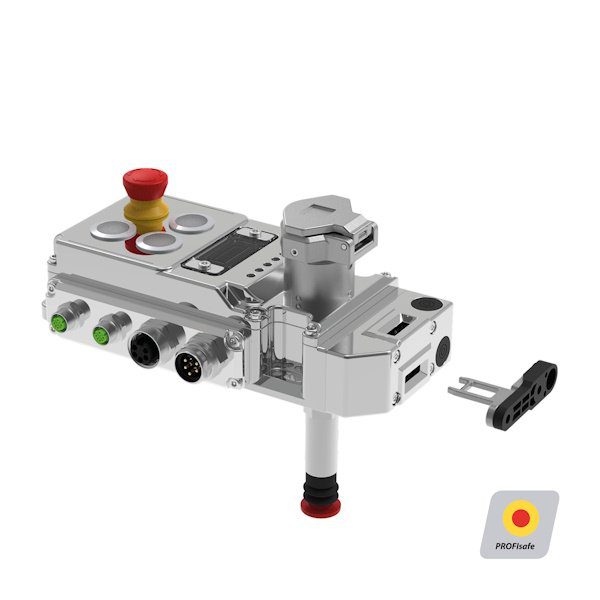

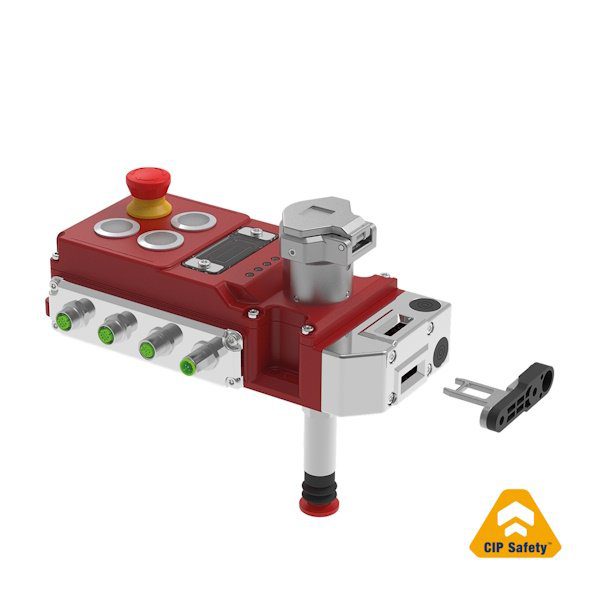

Effective protection combines three levels. Type 4 guard locking interlocks control access and keep the door closed until motion fully stops. Emergency stop must be accessible from any point in the cell, including from inside. And for interventions requiring presence in the hazardous zone, three-position enabling devices allow controlled machine operation.
The three-position principle is essential: the machine runs only while the switch is held in the middle position. Both sudden release and full squeeze — typical panic reactions — immediately stop motion.
Sector-specific requirements
- ■Type 4 guard locking to ISO 14119
- ■Three-position enabling devices for work inside the cell
- ■Emergency stop with OSSD outputs for series connection
- ■Access request functions integrated at the entry point
- ■Fast diagnostics to identify the cause of a stop
- ■Integration into PROFIsafe or CIP Safety networks
Applications and products
Recommended products
Common part codes in this sector
Advice for your sector
We help with risk assessment, product selection and performance level sizing to EN ISO 13849-1.
