CPC

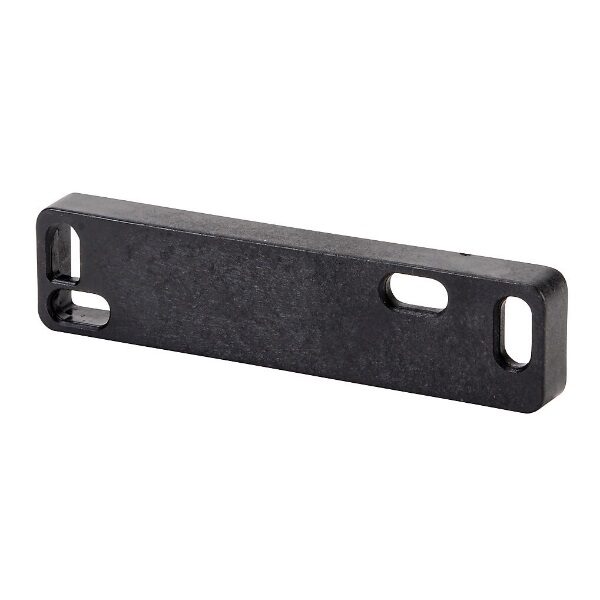

Coded Magnetic Non-Contact Safety Interlock Switch
IDECODE Non-Contact safety interlock switches provide a reliable and convenient safety solution for industrial applications, featuring a solid-state design with high switching reliability, voltage-free safety outputs and magnetically coded actuator.
- Housing/Fixing
- Industry Standard, Slim Line
- Contacts
- Up to 3 N/C or 2 N/C + 1 N/O
- Sensing Distance
- Wide 10mm operation
- Connection
- Pre-Wired or M12 8-Pole Quick Connect
- Indication
- Single Colour LED – Green when door closed
- Switching capability
- 0.2A (Requires 24Vdc supply to operate)
LED located on the top of the switch
Informații privind UL508
Type 1 Enclosures. Maximum temperature: 50ºC plastic versions, 70ºC S/Steel versions. Maximum output 24V.dc 100mA. Powered by Class 2 or equivalent.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Safety | Contacte auxiliare | Supply | Conectare |
|---|---|---|---|---|---|
| 115001 | CPC 2NC 2M with LED | 2 NC | 0 | 24VDC | 2M PRE-WIRED |
| 115002 | CPC 2NC 5M with LED | 2 NC | 0 | 24VDC | 5M PRE-WIRED |
| 115003 | CPC 2NC 10M with LED | 2 NC | 0 | 24VDC | 10M PRE-WIRED |
| 115004 | CPC 2NC QC-M12 8way with LED | 2 NC | 0 | 24VDC | 250MM PIGTAIL M12-QC 8-PIN |
| 115005 | CPC 2NC 1NO 2M with LED | 2 NC | 1 NO | 24VDC | 2M PRE-WIRED |
| 115006 | CPC 2NC 1NO 5M with LED | 2 NC | 1 NO | 24VDC | 5M PRE-WIRED |
| 115007 | CPC 2NC 1NO 10M with LED | 2 NC | 1 NO | 24VDC | 10M PRE-WIRED |
| 115008 | CPC 2NC 1NO QC-M12 8way with LED | 2 NC | 1 NO | 24VDC | 250MM PIGTAIL M12-QC 8-PIN |
