SMC-H

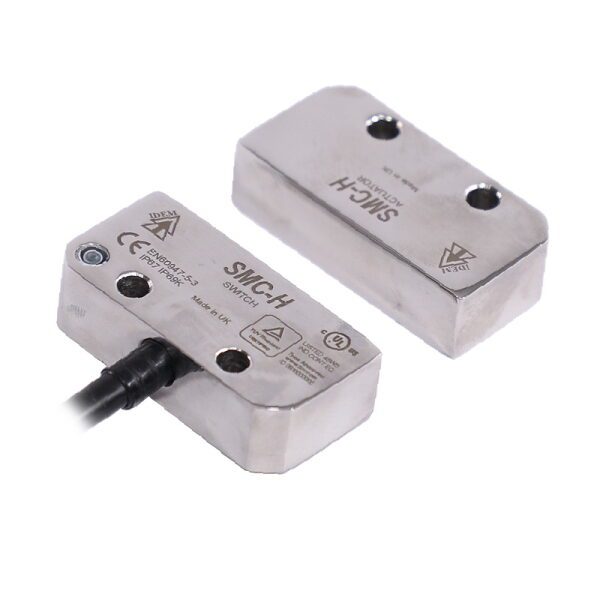

Coded Magnetic Non-Contact Safety Interlock Switch
The Hygiecode range are magnetically coded, non-contact safety interlock switches have been developed for use on machinery and equipment to ensure the safety of the operators and prevent accidents.
- Housing/Fixing
- Hygienic Mounting, 22mm Fixing Holes
- Contacts
- Up to 3 N/C or 2 N/C + 1 N/O
- Sensing Distance
- Wide 10mm operation
- Connection
- Pre-Wired or M12 8-Pole Quick Connect
- Indication
- Single Colour LED – Green when door closed
- Switching capability
- 0.2A (Requires 24Vdc supply to operate)
Suitable for Direct Contact Zones in accordance with EHEDG guidelines.
Through hole fixing that enables front mounting by hexagon head bolts to give no food trap areas.
Informații privind UL508
Type 1 Enclosures. Maximum temperature: 50ºC plastic versions, 70ºC S/Steel versions. Maximum output 24V.dc 100mA. Powered by Class 2 or equivalent.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 132001 | SMC-H 2M 2NC with LED |
| 132002 | SMC-H 5M 2NC with LED |
| 132003 | SMC-H 10M 2NC with LED |
| 132004 | SMC-H QC M12 8way 2NC with LED |
| 132005 | SMC-H 2M 2NC 1NO with LED |
| 132006 | SMC-H 5M 2NC 1NO with LED |
| 132007 | SMC-H 10M 2NC 1NO with LED |
| 132008 | SMC-H QC M12 8way 2NC 1NO with LED |
| 132105 | SMC-H 2M 3NC with LED |
| 132106 | SMC-H 5M 3NC with LED |
| 132107 | SMC-H 10M 3NC with LED |
| 132108 | SMC-H QC M12 8way 3NC with LED |
