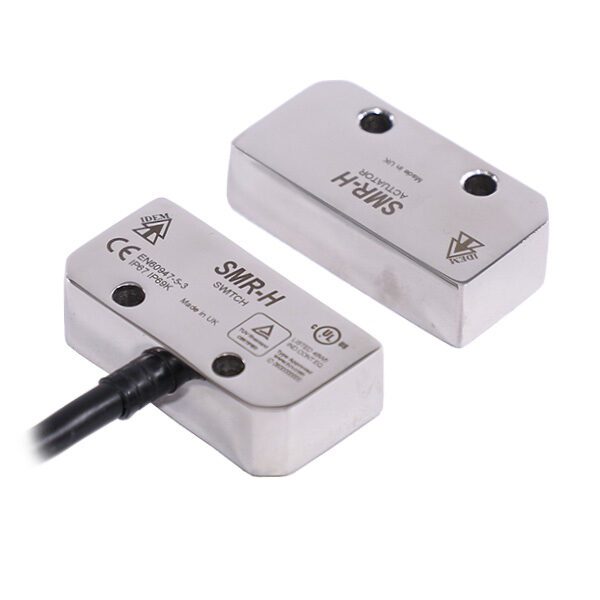

SMR-H
Magnetic Non-Contact Safety Interlock Switch
HYGIEMAG non-contact, magnetic safety interlock switches are designed for use on machinery and equipment to ensure the safety of the operators and prevent accidents. The SMR-H is housed in a robust, 316 stainless steel enclosure and tested to IP69K, suitable for washdown applications. (-H) versions feature two 5mm through holes. Hexagon head bolts can be used for ease of cleaning.
Note
Suitable for Direct Contact Zones in accordance with EHEDG guidelines.
Through hole fixing that enables front mounting by hexagon head bolts to give no food trap areas.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Safety | Contacte auxiliare | Conectare |
|---|---|---|---|---|
| 132009 | SMR-H 2M ‘2NC’ | 2NC | 0 | 2M PRE-WIRED |
| 132010 | SMR-H 5M ‘2NC’ | 2NC | 0 | 5M PRE-WIRED |
| 132011 | SMR-H 10M ‘2NC’ | 2NC | 0 | 10M PRE-WIRED |
| 132012 | SMR-H QC M12 8way ‘2NC’ | 2NC | 0 | 250mm Leaded M12 8way |
| 132013 | SMR-H 2M ‘2NC 1NO’ | 2NC | 1NO | 2M PRE-WIRED |
| 132014 | SMR-H 5M ‘2NC 1NO’ | 2NC | 1NO | 5M PRE-WIRED |
| 132015 | SMR-H 10M ‘2NC 1NO’ | 2NC | 1NO | 10M PRE-WIRED |
| 132016 | SMR-H QC M12 8way ‘2NC 1NO’ | 2NC | 1NO | 250mm Leaded M12 8way |
| 132031 | SMR-H 2M ‘3NC’ | 3NC | 0 | 2M PRE-WIRED |
| 132032 | SMR-H 5M ‘3NC’ | 3NC | 0 | 5M PRE-WIRED |
| 132033 | SMR-H 10M ‘3NC’ | 3NC | 0 | 10M PRE-WIRED |
| 132034 | SMR-H QC M12 8way ‘3NC’ | 3NC | 0 | 250mm Leaded M12 8way |
