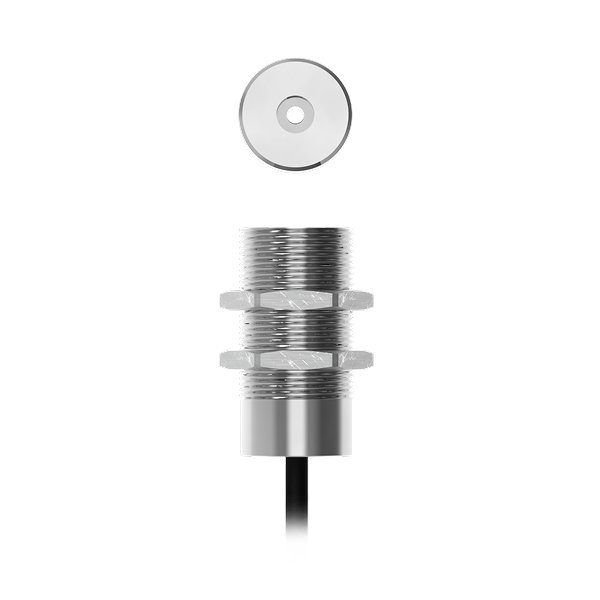

Magnetic Non-Contact Safety Interlock Switch (RMR: M30)
HYGIEMAG non-contact, magnetic safety interlock switches are designed for use on machinery and equipment to ensure the safety of the operators and prevent accidents. The RMR is housed in a robust, 316 stainless steel enclosure and tested to IP69K, suitable for washdown applications.
M30 Threaded Barrel with Stainless Steel Fixing Nuts
Contact Configurations up to 2NC + 1NO
1A ac/dc Switching Capability
Connectivity via Pre-Wired PVC Cable or M12 Quick Connect
Note
Suitable for Splash Zones in accordance with EHEDG guidelines.
Supplied with fixing nuts
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | SAFETY | Contacte auxiliare | Conectare |
|---|---|---|---|---|
| 134009 | RMR 2M ‘2NC’ | 2NC | 0 | 2M PRE-WIRED |
| 134010 | RMR 5M ‘2NC’ | 2NC | 0 | 5M PRE-WIRED |
| 134011 | RMR 10M ‘2NC’ | 2NC | 0 | 10M PRE-WIRED |
| 134012 | RMR QC M12 8way ‘2NC’ | 2NC | 0 | 250mm Leaded M12 8way |
| 134013 | RMR 2M ‘2NC 1NO’ | 2NC | 1NO | 2M PRE-WIRED |
| 134014 | RMR 5M ‘2NC 1NO’ | 2NC | 1NO | 5M PRE-WIRED |
| 134015 | RMR 10M ‘2NC 1NO’ | 2NC | 1NO | 10M PRE-WIRED |
| 134016 | RMR QC M12 8way ‘2NC 1NO’ | 2NC | 1NO | 250mm Leaded M12 8way |
