SMC-F

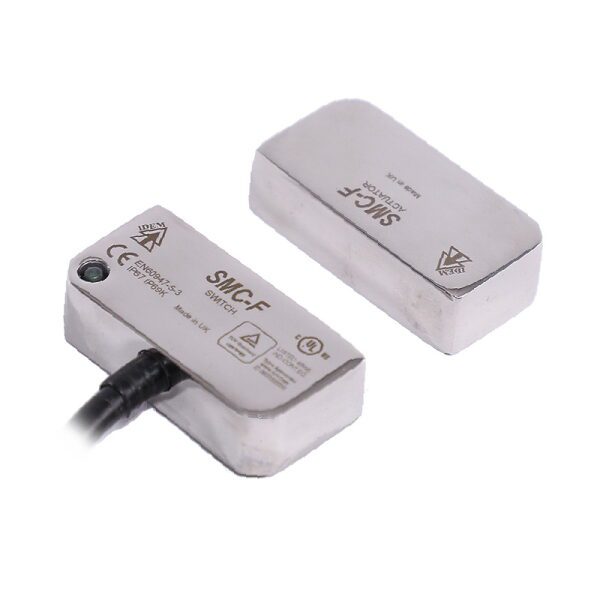

Coded Magnetic Non-Contact Safety Interlock Switch
The Hygiecode range are magnetically coded, non-contact safety interlock switches have been developed for use on machinery and equipment to ensure the safety of the operators and prevent accidents.
- Housing/Fixing
- Hygienic mounting, compact body
- Contacts
- Up to 3 N/C or 2 N/C + 1 N/O
- Sensing Distance
- Wide 10mm operation
- Connection
- Pre-Wired or M12 8-Pole Quick Connect
- Indication
- Single Colour LED – Green when door closed
- Switching capability
- 0.2A (Requires 24Vdc supply to operate)
Potrivit pentru zone cu contact direct, conform ghidurilor EHEDG.
Suitable for CIP / SIP cleaning with mounting holes at the rear thereby not creating food traps.
Informații privind UL508
Type 1 Enclosures. Maximum temperature: 50ºC plastic versions, 70ºC S/Steel versions. Maximum output 24V.dc 100mA. Powered by Class 2 or equivalent.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 137001 | SMC-F 2M 2NC with LED |
| 137002 | SMC-F 5M 2NC with LED |
| 137003 | SMC-F 10M 2NC with LED |
| 137004 | SMC-F QC M12 8way 2NC with LED |
| 137005 | SMC-F 2M 2NC 1NO with LED |
| 137006 | SMC-F 5M 2NC 1NO with LED |
| 137007 | SMC-F 10M 2NC 1NO with LED |
| 137008 | SMC-F QC M12 8way 2NC 1NO with LED |
| 137105 | SMC-F 2M 3NC with LED |
| 137106 | SMC-F 5M 3NC with LED |
| 137107 | SMC-F 10M 3NC with LED |
| 137108 | SMC-F QC M12 8way 3NC with LED |
