LPC

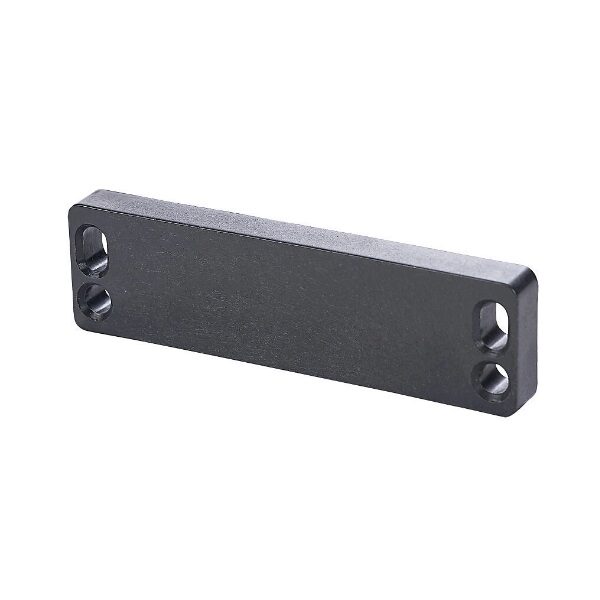

Coded Magnetic Non-Contact Safety Interlock Switch
IDECODE Non-Contact safety interlock switches provide a reliable and convenient safety solution for industrial applications, featuring a solid-state design with high switching reliability, voltage-free safety outputs and magnetically coded actuator.
- Housing/Fixing
- Narrow design for flush mounting
- Contacts
- Up to 3 N/C or 2 N/C + 1 N/O
- Sensing Distance
- Wide 10mm operation
- Connection
- Pre-Wired or M12 8-Pole Quick Connect
- Indication
- Single Colour LED – Green when door closed
- Switching capability
- 0.2A (Requires 24Vdc supply to operate)
Magnetic (10N) holding versions available for use with small guards
Informații privind UL508
Type 1 Enclosures. Maximum temperature: 50ºC plastic versions, 70ºC S/Steel versions. Maximum output 24V.dc 100mA. Powered by Class 2 or equivalent.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 110001 | LPC 2M ‘2NC’ with LED |
| 110002 | LPC 5M ‘2NC’ with LED |
| 110002-10N | LPC 5M ‘2NC’ with LED – 10N Holding |
| 110003 | LPC 10M ‘2NC’ with LED |
| 110004 | LPC QC M12 8way ‘2NC’ with LED |
| 110005 | LPC 2M ‘2NC 1NO’ with LED |
| 110006 | LPC 5M ‘2NC 1NO’ with LED |
| 110007 | LPC 10M ‘2NC 1NO’ with LED |
| 110008 | LPC QC M12 8way ‘2NC 1NO’ with LED |
| 110031 | LPC 2M ‘1NC 1NO’ with LED |
| 110032 | LPC 5M ‘1NC 1NO’ with LED |
| 110033 | LPC 10M ‘1NC 1NO’ with LED |
| 110034 | LPC QC M12 8way ‘1NC 1NO’ with LED |
| 110070 | LPC 2M ‘3NC’ with LED |
| 110071 | LPC 5M ‘3NC’ with LED |
| 110072 | LPC 10M ‘3NC’ with LED |
| 110073 | LPC QC M12 8way ‘3NC’ with LED |
