Coded Magnetic Non-Contact Safety Switch KOBRACODE

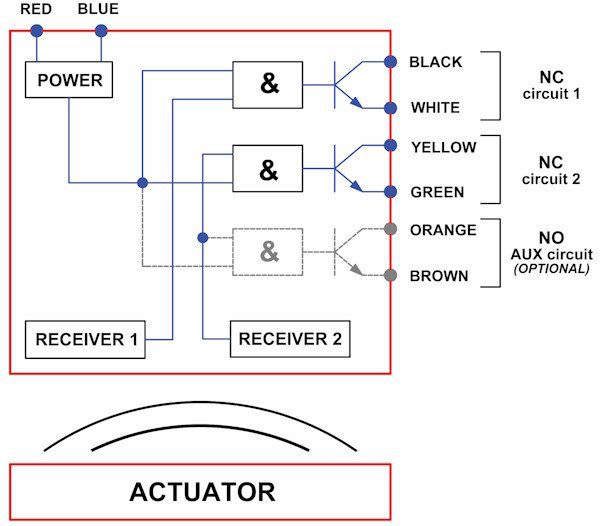

IDECODE Non-Contact safety interlock switches provide a reliable and convenient safety solution for industrial applications, featuring a solid-state design with high switching reliability, voltage-free safety outputs and magnetically coded actuator.

Housing/Fixing: Industry Standard, Tongue Switch Body Style
Contacts: Up to 2 N/C + 1 N/O
Sensing Distance: 8mm Operation

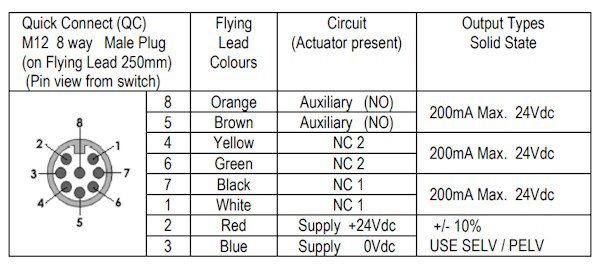

Connection: Pre-Wired or M12 8-Pole Quick Connect
Indication: Single Colour LED – Green when door closed
Switching capability: 0.2A (Requires 24Vdc supply to operate)

Informații privind UL508

Type 1 Enclosures. Maximum temperature: 50ºC plastic versions, 70ºC S/Steel versions. Maximum output 24V.dc 100mA. Powered by Class 2 or equivalent.

Cere ofertă pentru KPC Pagina oficială ↗

Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.

Glisați lateral pentru a vedea tot tabelul

Cod produs	Descriere	Safety	Contacte auxiliare	Supply	Conectare
120001	KPC 2NC 1NO 2M End with LED	2 NC	1 NO	24VDC	2M Pre-Wired (End Connection)
120002	KPC 2NC 1NO 5M End with LED	2 NC	1 NO	24VDC	5M Pre-Wired (End Connection)
120003	KPC 2NC 1NO 10M End with LED	2 NC	1 NO	24VDC	10M Pre-Wired (End Connection)
120012	KPC 2NC 1NO QC-M12 8way End with LED	2 NC	1 NO	24VDC	250MM Pigtail QC-M12 8way (End Connection)
120004	KPC 2NC 1NO 2M Left with LED	2 NC	1 NO	24VDC	2M Pre-Wired (Left Connection)
120005	KPC 2NC 1NO 5M Left with LED	2 NC	1 NO	24VDC	5M Pre-Wired (Left Connection)
120006	KPC 2NC 1NO 10M Left with LED	2 NC	1 NO	24VDC	10M Pre-Wired (Left Connection)
120007	KPC 2NC 1NO 2M Right with LED	2 NC	1 NO	24VDC	2M Pre-Wired (Right Connection)
120008	KPC 2NC 1NO 5M Right with LED	2 NC	1 NO	24VDC	5M Pre-Wired (Right Connection)
120009	KPC 2NC 1NO 10M Right with LED	2 NC	1 NO	24VDC	10M Pre-Wired (Right Connection)
