MPC

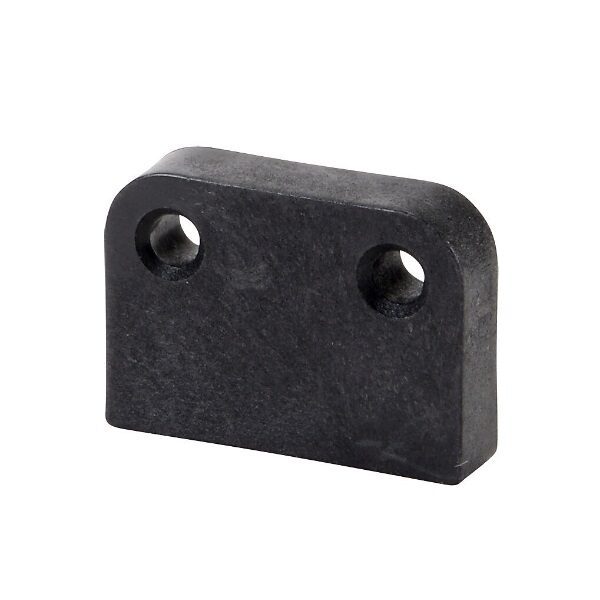

Coded Magnetic Non-Contact Safety Interlock Switch
IDECODE Non-Contact safety interlock switches provide a reliable and convenient safety solution for industrial applications, featuring a solid-state design with high switching reliability, voltage-free safety outputs and magnetically coded actuator.
- Housing/Fixing
- Compact Body, 22mm Fixing Holes
- Contacts
- Up to 3 N/C or 2 N/C + 1 N/O
- Sensing Distance
- 8mm operation
- Connection
- Pre-Wired or M12 8-Pole Quick Connect (Left or Right Cable Entry)
- Indication
- Single Colour LED – Green when door closed
- Switching capability
- 0.2A (Requires 24Vdc supply to operate)
Screw cap covers provided to prevent contamination from food deposits.
Informații privind UL508
Type 1 Enclosures. Maximum temperature: 50ºC plastic versions, 70ºC S/Steel versions. Maximum output 24V.dc 100mA. Powered by Class 2 or equivalent.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 114101 | MPC – Cable Right 2M 2NC with LED |
| 114102 | MPC – Cable Right 5M 2NC with LED |
| 114103 | MPC – Cable Right 10M 2NC with LED |
| 114104 | MPC – Cable Right QC M12 8way 2NC with LED |
| 114105 | MPC – Cable Right 2M 2NC 1NO with LED |
| 114106 | MPC – Cable Right 5M 2NC 1NO with LED |
| 114107 | MPC – Cable Right 10M 2NC 1NO with LED |
| 114108 | MPC – Cable Right QC M12 8way 2NC 1NO with LED |
| 114109 | MPC – Cable Left 2M 2NC with LED |
| 114110 | MPC – Cable Left 5M 2NC with LED |
| 114111 | MPC – Cable Left 10M 2NC with LED |
| 114112 | MPC – Cable Left QC M12 8way 2NC with LED |
| 114113 | MPC – Cable Left 2M 2NC 1NO with LED |
| 114114 | MPC – Cable Left 5M 2NC 1NO with LED |
| 114115 | MPC – Cable Left 10M 2NC 1NO with LED |
| 114116 | MPC – Cable Left QC M12 8way 2NC 1NO’ with LED |
| 114117 | MPC – Cable Right 2M 3NC with LED |
| 114118 | MPC – Cable Right 5M 3NC with LED |
| 114119 | MPC – Cable Right 10M 3NC with LED |
| 114120 | MPC – Cable Right QC M12 8way 3NC with LED |
| 114121 | MPC – Cable Left 2M 3NC with LED |
| 114122 | MPC – Cable Left 5M 3NC with LED |
| 114123 | MPC – Cable Left 10M 3NC with LED |
| 114124 | MPC – Cable Left QC M12 8way 3NC with LED |
| 114130 | MPC – Cable Right QC M8 4way 1NC with LED |
| 114131 | MPC – Cable Left QC M8 4way 1NC with LED |
