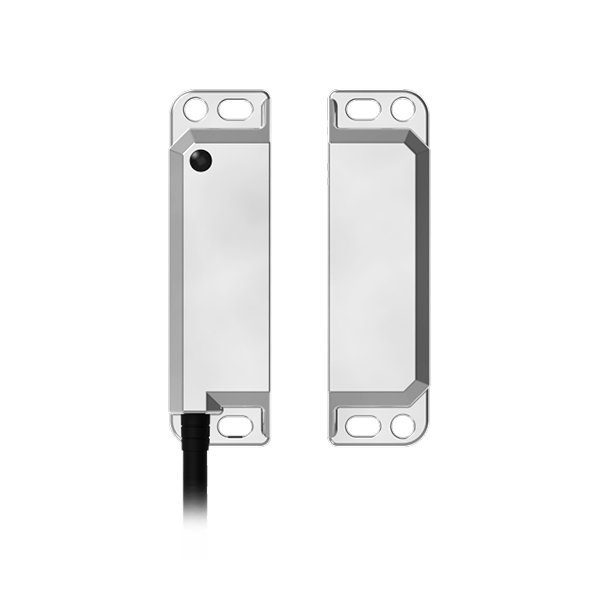

Coded Magnetic Non-Contact Safety Interlock Switch

HYGIECODE range are magnetically coded, non-contact safety interlock switches for use on machinery and equipment to prevent accidents. The coding is achieved using a complex magnet arrangement and hall effect sensors, reducing the likelihood of manipulation or defeat.

Housed in a Narrow Design for Flush Mounting

Contacte până la 3NC sau 2NC + 1NO

Distanță de detecție 10 mm

Connectivity via Pre-Wired or M12 8-Pole Quick Connect

Indication via Single Colour LED – Green when Door is Closed

Capacitate de comutare până la 0,2 A (necesită alimentare 24 V c.c.)

Potrivit pentru zone cu stropire, conform ghidurilor EHEDG

Informații privind UL508

Type 1 Enclosures. Maximum temperature: 50ºC plastic versions, 70ºC S/Steel versions. Maximum output 24V.dc 100mA. Powered by Class 2 or equivalent.

Cere ofertă pentru LMC Pagina oficială ↗

Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.

Cod produs	Descriere
133001	LMC 2M 2NC with LED
133002	LMC 5M 2NC with LED
133003	LMC 10M 2NC with LED
133004	LMC QC M12 8way 2NC with LED
133005	LMC 2M 2NC 1NO with LED
133006	LMC 5M 2NC 1NO with LED
133007	LMC 10M 2NC 1NO with LED
133007-10N	LMC 10M 2NC 1NO with LED – 10N Magnetic holding
133008	LMC QC M12 8way 2NC 1NO with LED
133017	LMC 2M 3NC with LED
133018	LMC 5M 3NC with LED
133019	LMC 10M 3NC with LED
133020	LMC QC M12 8way 3NC with LED
133021	LMC 2M 2NC without LED
133022	LMC 5M 2NC without LED
133023	LMC 10M 2NC without LED
133024	LMC QC M12 8way 2NC without LED
133025	LMC 2M 2NC 1NO without LED
133026	LMC 5M 2NC 1NO without LED
133027	LMC 10M 2NC 1NO without LED
133028	LMC QC M12 8way 2NC 1NO without LED
133111	LMC 10M 1NC 1NO + aux with LED
