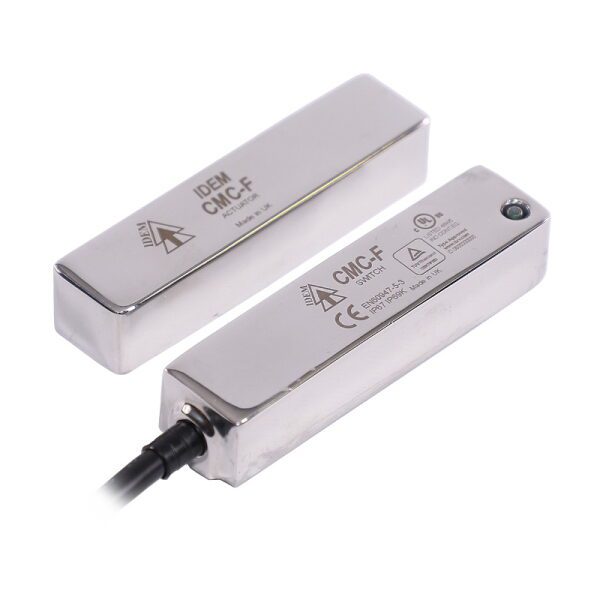

Coded Magnetic Non-Contact Safety Interlock Switch

HYGIECODE range are magnetically coded, non-contact safety interlock switches for use on machinery and equipment to prevent accidents. The coding is achieved using a complex magnet arrangement and hall effect sensors, reducing the likelihood of manipulation or defeat. The CMC-F features mounting holes at the rear which prevents contamination traps on the surface.

Housing in Hygienic, Slim Line Body

Contacts Configuration up to 3 N/C or 2 N/C + 1 N/O

Wide 10mm operation

Conectare prin cablu precablat sau conector rapid M12 cu 8 poli

Indicație prin LED monocrom — verde când ușa este închisă

Capacitate de comutare până la 0,2 A (necesită alimentare 24 V c.c.)

Suitable for use in Direct Contact Zones in Accordance with EHEDG Guidelines

Informații privind UL508

Type 1 Enclosures. Maximum temperature: 50ºC plastic versions, 70ºC S/Steel versions. Maximum output 24V.dc 100mA. Powered by Class 2 or equivalent.

Cere ofertă pentru CMC-F Pagina oficială ↗

Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.

Cod produs	Descriere
138001	CMC-F 2M 2NC with LED
138002	CMC-F 5M 2NC with LED
138003	CMC-F 10M 2NC with LED
138004	CMC-F QC M12 8way 2NC with LED
138005	CMC-F 2M 2NC 1NO with LED
138006	CMC-F 5M 2NC 1NO with LED
138007	CMC-F 10M 2NC 1NO with LED
138008	CMC-F QC M12 8way 2NC 1NO with LED
138105	CMC-F 2M 3NC with LED
138106	CMC-F 5M 3NC with LED
138107	CMC-F 10M 3NC with LED
138108	CMC-F QC M12 8way 3NC with LED
