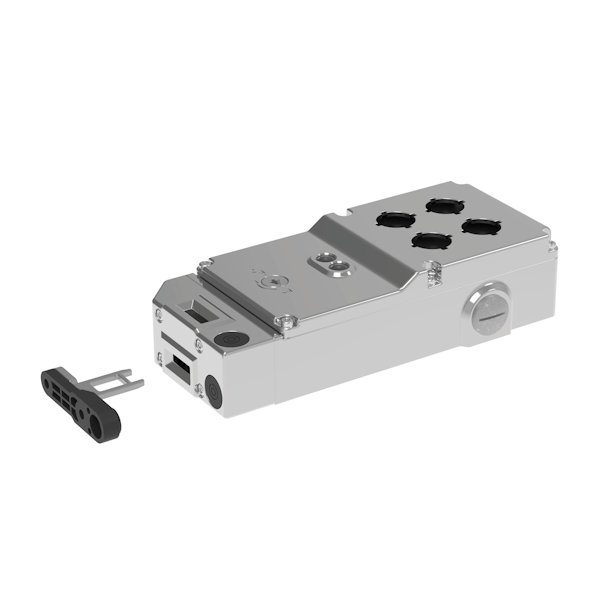

RFID Safety Gate Box 4 Station

UGB-KLT-SS-RFID provides high level RFID coded interlocking and machine control functions in one heavy duty housing. They can be easily fitted to access doors to provide guard locking, rear escape options and sliding or rotary handles to reduce the risk of operators being trapped inside a guarded area. The UGB-KLT-SS-RFID housing will incorporate 22mm push buttons, lamps or switches which can be added to provide machine request or control functions in one form factor.

NOTE: Pilot devices, handle accessories sold separately.

Body Material: Mirror Polished 316 Grade Stainless Steel
Ingress Protection: IP65
RFID Coding: Unique (can be retaught if lost or damaged)
Control Devices: 4
Connection: 3 x M20 or ½” NPT (Quick Connect Options Available)

Informații privind UL508

Type 1 enclosure. Maximum temperature 40°C. Use 16-28AWG copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. Safety Circuits (11-31 & 21-41) A300 Pilot Duty. 240V. 3A. (PF 0.38 or greater tested for 6,000 cycles endurance). Use one polymeric conduit connection. Not suitable for connection to rigid metal conduit. (Earth bonding terminal inside enclosure if required – use 16-12AWG conductors). Push Button ratings (Optional) 120 -240 Vac, 1.5 - 1.0 A 24 - 125 Vdc, 0.3 – 0.2 A

Request a quote for UGB4-KLT-SS-RFID Official page ↗

Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.

Glisați lateral pentru a vedea tot tabelul

Cod produs	Descriere	Canale de siguranță	Contacte auxiliare	Eliberare din spate	Deblocare manuală	Intrare cablu
521001	UGB4-KLT-SS-RFID Manual Override	2NC Lock / 2NC Guard	1 PNP Lock / 1 PNP Guard	No	Yes	M20
521003	UGB4-KLT-SS-RFID No Manual Override	2NC Lock / 2NC Guard	1 PNP Lock / 1 PNP Guard	No	No	M20
