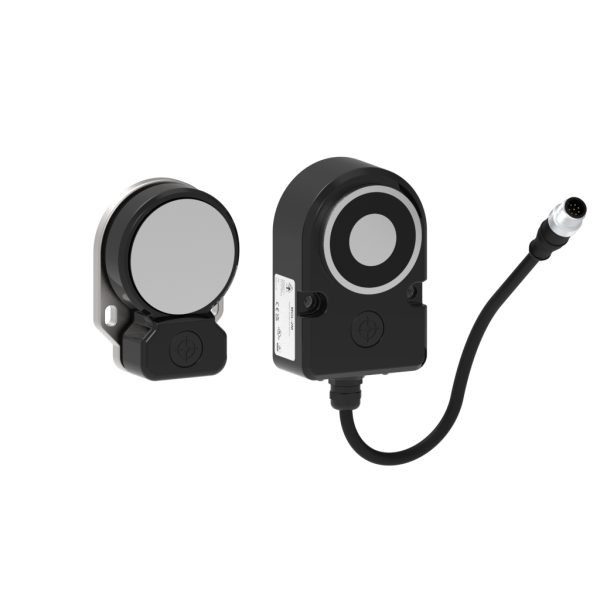

MGL-2M QC-M12
Electromagnetic RFID Switch 1000N
The MGL-2M is a magnetic guard locking safety switch with coded RFID technology, designed to provide high functional safety and reliable electromagnetic guard interlocking in industrial applications. Housed in a heavy-duty die-cast metal housing and equipped with a QC-M12 connector for quick installation, it is ideally suited to machine guarding systems requiring guard monitoring with a high level of tamper resistance.
Informații privind UL508
Type 1 Enclosures. Maximum temperature 40ºC. Maximum output 24V.dc 200mA. Powered by Class 2 or equivalent. WARNING: Hot surface – risk of burn if used at ambient temperature of +40C degrees. (Affix a warning label to the switch).
Notă importantă
As a power-to-lock device, the MGL range requires careful consideration in the event of power loss, particularly on machines where hazardous motion or risk remains present during run-down before the danger is fully removed.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere | RFID Coding | Residual Magnetism |
|---|---|---|---|
| 465006 | MGL-2M-M QC-M12 | Master Coded (can be re-taught) | Yes |
| 465006-ZR | MGL-2M-M QC-M12 (Zero Residual) | Master Coded (can be re-taught) | No |
| 465003 | MGL-2M-U QC-M12 | Uniquely Coded (cannot be re-taught) | Yes |
| 465003-ZR | MGL-2M-U QC-M12 (Zero Residual) | Uniquely Coded (cannot be re-taught) | No |
