M-ISB-CBX

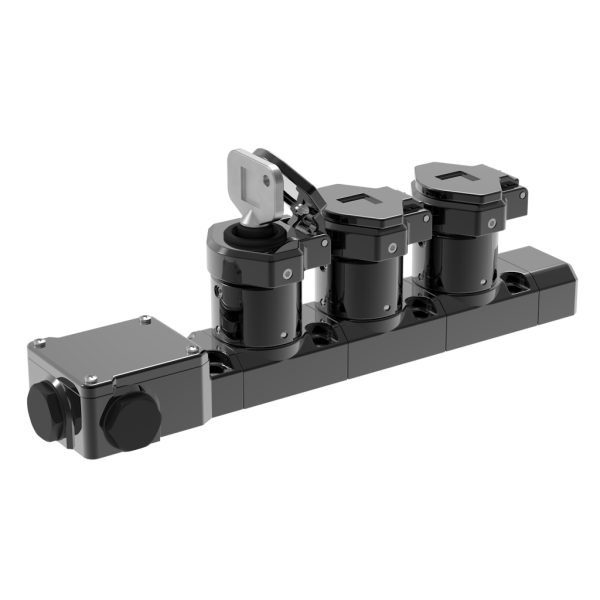

Vertical Key Exchange System with Integrated Control Switch
The M-ISB-CBX integrates control isolation and key exchange into a single, compact unit. Inserting or removing the isolation key (bottom key) opens the contacts and releases up to six keys, enabling controlled access to multiple machine access points.
Integrated 2NC/2NO positively operated contact block
Releases up to 6 keys, including the isolation key
Constructed from die-cast for harsh industrial environments
Note
Key sold separately
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Number of Keys | Configurație contacte | Conduit Entry | Keys Free | Keys Trapped |
|---|---|---|---|---|---|
| M-ISB-CBx2-22-M-0x2 | 2 | 2NC / 2NO | M20 | 0 | 2 |
| M-ISB-CBX3-22-M-0X3 | 3 | 2NC / 2NO | M20 | 0 | 3 |
| M-ISB-CBX4-22-M-0X4 | 4 | 2NC / 2NO | M20 | 0 | 4 |
| M-ISB-CBX5-22-M-0X5 | 5 | 2NC / 2NO | M20 | 0 | 5 |
| M-ISB-CBX6-22-M-0X6 | 6 | 2NC / 2NO | M20 | 0 | 6 |
| M-ISB-CBX2-22-M-1X1 | 2 | 2NC / 2NO | M20 | 1 | 1 |
| SS-ISB-CBX3-22-M-1X2 | 3 | 2NC / 2NO | M20 | 1 | 2 |
| M-ISB-CBX4-22-M-1X3 | 4 | 2NC / 2NO | M20 | 1 | 3 |
| M-ISB-CBX5-22-M-1X4 | 5 | 2NC / 2NO | M20 | 1 | 4 |
