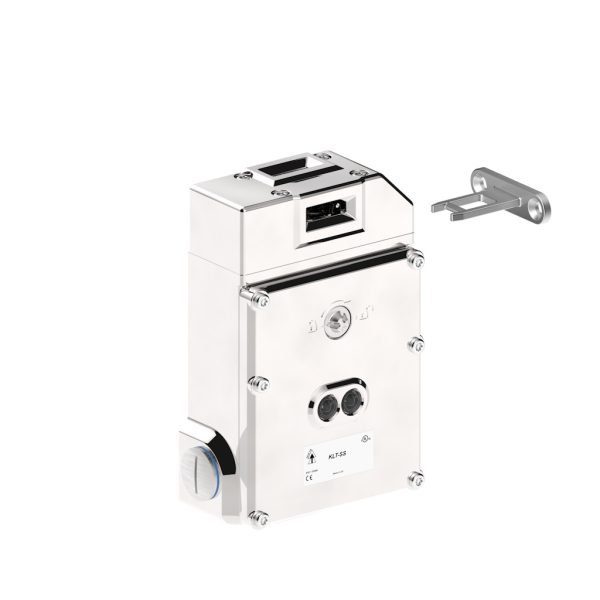

KLT-SS Guard Locking Safety Switch
The KLT-SS guard locking safety interlock features a hygienic, mirror polished 316 stainless steel body and a holding force of up to 3000N to keep medium to large guard doors closed until hazards have been removed. The KLT-SS has a low body profile with industry standard 73mm fixing centres, to enable easy retrofitting to new or existing guards.
Information with regard to UL Standards
Maximum temperature +40 °C
Terminal Torque e 6 lb ins. (0.7Nm)
Use 16-28AWG stranded copper conductors (rated 90°C).
Intended for same polarity use. A300 Pilot Duty. 240V. 3A
PF 0.38 or greater, tested for 6,000 cycles endurance
Use one polymeric conduit connection
Not suitable for connection to rigid metal conduit
(Earth bonding terminal inside enclosure if required)
Note
Internal selector switch to be used as either power feed to LED 2 or as a voltage free auxiliary circuit to indicate the lock status.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Tensiune | Connection Type | Actuator |
|---|---|---|---|---|
| 451001 | KLT-SS (Mechanical Only) M20 24v | 24V | M20 | No Actuator |
| 451001A | KLT-SS (Mechanical Only) M20 24v – Std Actuator | 24V | M20 | A – Standard Actuator |
| 451001F | KLT-SS (Mechanical Only) M20 24v – Flat Actuator | 24V | M20 | F – Flat Actuator |
| 451001HF | KLT-SS (Mechanical Only) M20 24v – HF Actuator | 24V | M20 | HF – Metal Flexible Actuator |
| 451001HFH | KLT-SS (Mechanical Only) M20 24v – HFH Actuator | 24V | M20 | HFH – Stainless Steel Flexible Actuator |
| 451002 | KLT-SS (Mechanical Only) ½”NPT 24v | 24V | ½NPT | No Actuator |
| 451002A | KLT-SS (Mechanical Only) ½”NPT 24v – Std Actuator | 24V | ½NPT | A – Standard Actuator |
| 451002F | KLT-SS (Mechanical Only) ½”NPT 24v – Flat Actuator | 24V | ½NPT | F – Flat Actuator |
| 451002HF | KLT-SS (Mechanical Only) ½”NPT 24v – HF Actuator | 24V | ½NPT | HF – Metal Flexible Actuator |
| 451002HFH | KLT-SS (Mechanical Only) ½”NPT 24v – HFH Actuator | 24V | ½NPT | HFH – Stainless Steel Flexible Actuator |
| 451004 | KLT-SS (Mechanical Only) M20 110v | 110V | M20 | No Actuator |
| 451004A | KLT-SS (Mechanical Only) M20 110v – Std Actuator | 110V | M20 | A – Standard Actuator |
| 451004F | KLT-SS (Mechanical Only) M20 110v – Flat Actuator | 110V | M20 | F – Flat Actuator |
| 451004HF | KLT-SS (Mechanical Only) M20 110v – HF Actuator | 110V | M20 | HF – Metal Flexible Actuator |
| 451004HFH | KLT-SS (Mechanical Only) M20 110v – HFH Actuator | 110V | M20 | HFH – Stainless Steel Flexible Actuator |
| 451005 | KLT-SS (Mechanical Only) ½”NPT 110v | 110V | ½NPT | No Actuator |
| 451005A | KLT-SS (Mechanical Only) ½”NPT 110v – Std Actuator | 110V | ½NPT | A – Standard Actuator |
| 451005A | KLT-SS (Mechanical Only) ½”NPT 110v – Std Actuator | 110V | ½NPT | A – Standard Actuator |
| 451005F | KLT-SS (Mechanical Only) ½”NPT 110v – Flat Actuator | 110V | ½NPT | F – Flat Actuator |
| 451005HF | KLT-SS (Mechanical Only) ½”NPT 110v – HF Actuator | 110V | ½NPT | HF – Metal Flexible Actuator |
| 451005HFH | KLT-SS (Mechanical Only) ½”NPT 110v – HFH Actuator | 110V | ½NPT | HFH – Stainless Steel Flexible Actuator |
| 451007 | KLT-SS (Mechanical Only) M20 230v | 230V | M20 | No Actuator |
| 451007A | KLT-SS (Mechanical Only) M20 230v – Std Actuator | 230V | M20 | A – Standard Actuator |
| 451007F | KLT-SS (Mechanical Only) M20 230v – Flat Actuator | 230V | M20 | F – Flat Actuator |
| 451007HF | KLT-SS (Mechanical Only) M20 230v – HF Actuator | 230V | M20 | HF – Metal Flexible Actuator |
| 451007HFH | KLT-SS (Mechanical Only) M20 230v – HFH Actuator | 230V | M20 | HFH – Stainless Steel Flexible Actuator |
| 451008 | KLT-SS (Mechanical Only) ½”NPT 230v | 230V | ½NPT | No Actuator |
| 451008A | KLT-SS (Mechanical Only) ½”NPT 230v – Std Actuator | 230V | ½NPT | A – Standard Actuator |
| 451008F | KLT-SS (Mechanical Only) ½”NPT 230v – Flat Actuator | 230V | ½NPT | F – Flat Actuator |
| 451008HF | KLT-SS (Mechanical Only) ½”NPT 230v – HF Actuator | 230V | ½NPT | HF – Metal Flexible Actuator |
| 451008HFH | KLT-SS (Mechanical Only) ½”NPT 230v – HFH Actuator | 230V | ½NPT | HFH – Stainless Steel Flexible Actuator |
