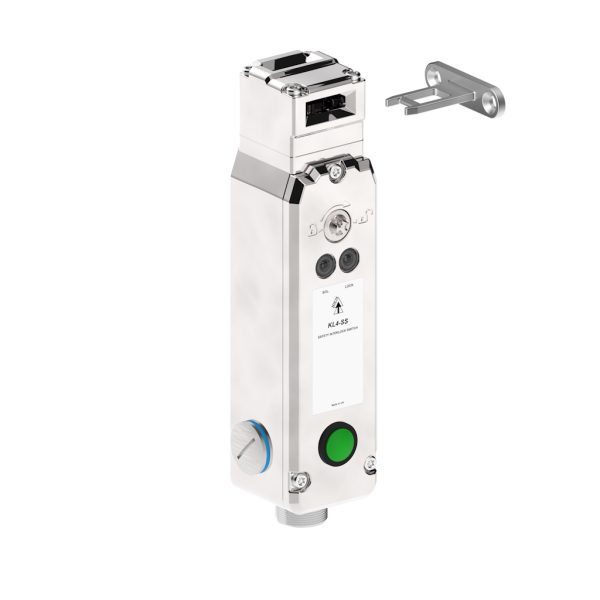

KL4-SS QC-M23 Guard Locking Safety Switch with M23 Quick Connect and Optional Pushbutton
The KL4-SS guard locking safety interlock is housed in a mirror-polished 316 stainless steel body and provides a holding force of up to 3000 N. Designed for medium to large guard doors, it helps keep guards securely closed until hazardous motion has stopped or the hazard has been removed.
The KL4-SS is available with a momentary pushbutton mounted in the lid, featuring a single set of changeover contacts for additional control or signalling functionality.
Body manufactured from Mirror Polished 316 Grade Stainless Steel
Holding Force up to F1Max 3000N (300Kg)
Actuation via Rotating head for up to 8 entry positions
Ingress Protection up to IP69K
Connectivity via M23 Quick Connect 12-PIN Male
Information with regard to UL Standards
Maximum temperature +40 °C
Terminal Torque e 6 lb ins. (0.7Nm)
Use 16-28AWG stranded copper conductors (rated 90°C).
Intended for same polarity use. A300 Pilot Duty. 240V. 3A
PF 0.38 or greater, tested for 6,000 cycles endurance
Use one polymeric conduit connection.
Not suitable for connection to rigid metal conduit
(Earth bonding terminal inside enclosure if required).
Note
Internal selector switch to be used as either power feed to LED 2 or as a voltage free auxiliary circuit to indicate the lock status.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Tensiune | Connection Type | Auxiliary Override | Actuator | Pushbutton |
|---|---|---|---|---|---|---|
| 209003 | KL4-SS QC-M23 24V (std release) | 24V | QC-M23 | Lid and Side | No Actuator | No |
| 209003-PB | KL4-SS QC-M23 24V (std release) c/w Pushbutton | 24V | QC-M23 | Lid and Side | No Actuator | Yes |
| 209003A | KL4-SS QC-M23 24V (std release) – std actuator | 24V | QC-M23 | Lid and Side | A – Standard Actuator | No |
| 209003A-PB | KL4-SS QC-M23 24V (std release) c/w Pushbutton – std actuator | 24V | QC-M23 | Lid and Side | A – Standard Actuator | Yes |
| 209003F | KL4-SS QC-M23 24V (std release) – flat actuator | 24V | QC-M23 | Lid and Side | F – Flat Actuator | No |
| 209003F-PB | KL4-SS QC-M23 24V (std release) c/w Pushbutton – flat actuator | 24V | QC-M23 | Lid and Side | F – Flat Actuator | Yes |
| 209003HF | KL4-SS QC-M23 24V (std release) – HF actuator | 24V | QC-M23 | Lid and Side | HF – Metal Flexible Actuator | No |
| 209003HF-PB | KL4-SS QC-M23 24V (std release) c/w Pushbutton – HF actuator | 24V | QC-M23 | Lid and Side | HF – Metal Flexible Actuator | Yes |
| 209003HFH | KL4-SS QC-M23 24V (std release) – HFH actuator | 24V | QC-M23 | Lid and Side | HFH – Stainless Steel Flexible Actuator | No |
| 209003HFH-PB | KL4-SS QC-M23 24V (std release) c/w Pushbutton – HFH actuator | 24V | QC-M23 | Lid and Side | HFH – Stainless Steel Flexible Actuator | Yes |
| 209303 | KL4-SS QC-M23 24V (no release) | 24V | QC-M23 | No Release | No Actuator | No |
| 209303-PB | KL4-SS QC-M23 24V (no release) c/w Pushbutton | 24V | QC-M23 | No Release | No Actuator | Yes |
| 209303A | KL4-SS QC-M23 24V (no release) – std actuator | 24V | QC-M23 | No Release | A – Standard Actuator | No |
| 209303A-PB | KL4-SS QC-M23 24V (no release) c/w Pushbutton – std actuator | 24V | QC-M23 | No Release | A – Standard Actuator | Yes |
| 209303F | KL4-SS QC-M23 24V (no release) – flat actuator | 24V | QC-M23 | No Release | F – Flat Actuator | No |
| 209303F-PB | KL4-SS QC-M23 24V (no release) c/w Pushbutton – flat actuator | 24V | QC-M23 | No Release | F – Flat Actuator | Yes |
| 209303HF | KL4-SS QC-M23 24V (no release) – HF actuator | 24V | QC-M23 | No Release | HF – Metal Flexible Actuator | No |
| 209303HF-PB | KL4-SS QC-M23 24V (no release) c/w Pushbutton – HF actuator | 24V | QC-M23 | No Release | HF – Metal Flexible Actuator | Yes |
| 209303HFH | KL4-SS QC-M23 24V (no release) – HFH actuator | 24V | QC-M23 | No Release | HFH – Stainless Steel Flexible Actuator | No |
| 209303HFH-PB | KL4-SS QC-M23 24V (no release) c/w Pushbutton – HFH actuator | 24V | QC-M23 | No Release | HFH – Stainless Steel Flexible Actuator | Yes |
| 209403 | KL4-SS QC-M23 24V (lid release) | 24V | QC-M23 | Lid Only | No Actuator | No |
| 209403-PB | KL4-SS QC-M23 24V (lid release) c/w Pushbutton | 24V | QC-M23 | Lid Only | No Actuator | Yes |
| 209403A | KL4-SS QC-M23 24V (lid release) – std actuator | 24V | QC-M23 | Lid Only | A – Standard Actuator | No |
| 209403A-PB | KL4-SS QC-M23 24V (lid release) c/w Pushbutton – std actuator | 24V | QC-M23 | Lid Only | A – Standard Actuator | Yes |
| 209403F | KL4-SS QC-M23 24V (lid release) – flat actuator | 24V | QC-M23 | Lid Only | F – Flat Actuator | No |
| 209403F-PB | KL4-SS QC-M23 24V (lid release) c/w Pushbutton – flat actuator | 24V | QC-M23 | Lid Only | F – Flat Actuator | Yes |
| 209403HF | KL4-SS QC-M23 24V (lid release) – HF actuator | 24V | QC-M23 | Lid Only | HF – Metal Flexible Actuator | No |
| 209403HF-PB | KL4-SS QC-M23 24V (lid release) c/w Pushbutton – HF actuator | 24V | QC-M23 | Lid Only | HF – Metal Flexible Actuator | Yes |
| 209403HFH | KL4-SS QC-M23 24V (lid release) – HFH actuator | 24V | QC-M23 | Lid Only | HFH – Stainless Steel Flexible Actuator | No |
| 209403HFH-PB | KL4-SS QC-M23 24V (lid release) c/w Pushbutton – HFH actuator | 24V | QC-M23 | Lid Only | HFH – Stainless Steel Flexible Actuator | Yes |
| 209006 | KL4-SS QC-M23 110V (std release) | 110V | QC-M23 | Lid and Side | No Actuator | No |
| 209006-PB | KL4-SS QC-M23 110V (std release) c/w Pushbutton | 110V | QC-M23 | Lid and Side | No Actuator | Yes |
| 209006A | KL4-SS QC-M23 110V (std release) – std actuator | 110V | QC-M23 | Lid and Side | A – Standard Actuator | No |
| 209006A-PB | KL4-SS QC-M23 110V (std release) c/w Pushbutton – std actuator | 110V | QC-M23 | Lid and Side | A – Standard Actuator | Yes |
| 209006F | KL4-SS QC-M23 110V (std release) – flat actuator | 110V | QC-M23 | Lid and Side | F – Flat Actuator | No |
| 209006F-PB | KL4-SS QC-M23 110V (std release) c/w Pushbutton – flat actuator | 110V | QC-M23 | Lid and Side | F – Flat Actuator | Yes |
| 209006HF | KL4-SS QC-M23 110V (std release) – HF actuator | 110V | QC-M23 | Lid and Side | HF – Metal Flexible Actuator | No |
| 209006HF-PB | KL4-SS QC-M23 110V (std release) c/w Pushbutton – HF actuator | 110V | QC-M23 | Lid and Side | HF – Metal Flexible Actuator | Yes |
| 209006HFH | KL4-SS QC-M23 110V (std release) – HFH actuator | 110V | QC-M23 | Lid and Side | HFH – Stainless Steel Flexible Actuator | No |
| 209006HFH-PB | KL4-SS QC-M23 110V (std release) c/w Pushbutton – HFH actuator | 110V | QC-M23 | Lid and Side | HFH – Stainless Steel Flexible Actuator | Yes |
| 209306 | KL4-SS QC-M23 110V (no release) | 110V | QC-M23 | No Release | No Actuator | No |
| 209306-PB | KL4-SS QC-M23 110V (no release) c/w Pushbutton | 110V | QC-M23 | No Release | No Actuator | Yes |
| 209306A | KL4-SS QC-M23 110V (no release) – std actuator | 110V | QC-M23 | No Release | A – Standard Actuator | No |
| 209306A-PB | KL4-SS QC-M23 110V (no release) c/w Pushbutton – std actuator | 110V | QC-M23 | No Release | A – Standard Actuator | Yes |
| 209306F | KL4-SS QC-M23 110V (no release) – flat actuator | 110V | QC-M23 | No Release | F – Flat Actuator | No |
| 209306F-PB | KL4-SS QC-M23 110V (no release) c/w Pushbutton – flat actuator | 110V | QC-M23 | No Release | F – Flat Actuator | Yes |
| 209306HF | KL4-SS QC-M23 110V (no release) – HF actuator | 110V | QC-M23 | No Release | HF – Metal Flexible Actuator | No |
| 209306HF-PB | KL4-SS QC-M23 110V (no release) c/w Pushbutton – HF actuator | 110V | QC-M23 | No Release | HF – Metal Flexible Actuator | Yes |
| 209306HFH | KL4-SS QC-M23 110V (no release) – HFH actuator | 110V | QC-M23 | No Release | HFH – Stainless Steel Flexible Actuator | No |
| 209306HFH-PB | KL4-SS QC-M23 110V (no release) c/w Pushbutton – HFH actuator | 110V | QC-M23 | No Release | HFH – Stainless Steel Flexible Actuator | Yes |
| 209406 | KL4-SS QC-M23 110V (lid release) | 110V | QC-M23 | Lid Only | No Actuator | No |
| 209406-PB | KL4-SS QC-M23 110V (lid release) c/w Pushbutton | 110V | QC-M23 | Lid Only | No Actuator | Yes |
| 209406A | KL4-SS QC-M23 110V (lid release) – std actuator | 110V | QC-M23 | Lid Only | A – Standard Actuator | No |
| 209406A-PB | KL4-SS QC-M23 110V (lid release) c/w Pushbutton – std actuator | 110V | QC-M23 | Lid Only | A – Standard Actuator | Yes |
| 209406F | KL4-SS QC-M23 110V (lid release) – flat actuator | 110V | QC-M23 | Lid Only | F – Flat Actuator | No |
| 209406F-PB | KL4-SS QC-M23 110V (lid release) c/w Pushbutton – flat actuator | 110V | QC-M23 | Lid Only | F – Flat Actuator | Yes |
| 209406HF | KL4-SS QC-M23 110V (lid release) – HF actuator | 110V | QC-M23 | Lid Only | HF – Metal Flexible Actuator | No |
| 209406HF-PB | KL4-SS QC-M23 110V (lid release) c/w Pushbutton – HF actuator | 110V | QC-M23 | Lid Only | HF – Metal Flexible Actuator | Yes |
| 209406HFH | KL4-SS QC-M23 110V (lid release) – HFH actuator | 110V | QC-M23 | Lid Only | HFH – Stainless Steel Flexible Actuator | No |
| 209406HFH-PB | KL4-SS QC-M23 110V (lid release) c/w Pushbutton – HFH actuator | 110V | QC-M23 | Lid Only | HFH – Stainless Steel Flexible Actuator | Yes |
| 209009 | KL4-SS QC-M23 230V (std release) | 230V | QC-M23 | Lid and Side | No Actuator | No |
| 209009-PB | KL4-SS QC-M23 230V (std release) c/w Pushbutton | 230V | QC-M23 | Lid and Side | No Actuator | Yes |
| 209009A | KL4-SS QC-M23 230V (std release) – std actuator | 230V | QC-M23 | Lid and Side | A – Standard Actuator | No |
| 209009A-PB | KL4-SS QC-M23 230V (std release) c/w Pushbutton – std actuator | 230V | QC-M23 | Lid and Side | A – Standard Actuator | Yes |
| 209009F | KL4-SS QC-M23 230V (std release) – flat actuator | 230V | QC-M23 | Lid and Side | F – Flat Actuator | No |
| 209009F-PB | KL4-SS QC-M23 230V (std release) c/w Pushbutton – flat actuator | 230V | QC-M23 | Lid and Side | F – Flat Actuator | Yes |
| 209009HF | KL4-SS QC-M23 230V (std release) – HF actuator | 230V | QC-M23 | Lid and Side | HF – Metal Flexible Actuator | No |
| 209009HF-PB | KL4-SS QC-M23 230V (std release) c/w Pushbutton – HF actuator | 230V | QC-M23 | Lid and Side | HF – Metal Flexible Actuator | Yes |
| 209009HFH | KL4-SS QC-M23 230V (std release) – HFH actuator | 230V | QC-M23 | Lid and Side | HFH – Stainless Steel Flexible Actuator | No |
| 209009HFH-PB | KL4-SS QC-M23 230V (std release) c/w Pushbutton – HFH actuator | 230V | QC-M23 | Lid and Side | HFH – Stainless Steel Flexible Actuator | Yes |
| 209309 | KL4-SS QC-M23 230V (no release) | 230V | QC-M23 | No Release | No Actuator | No |
| 209309-PB | KL4-SS QC-M23 230V (no release) c/w Pushbutton | 230V | QC-M23 | No Release | No Actuator | Yes |
| 209309A | KL4-SS QC-M23 230V (no release) – std actuator | 230V | QC-M23 | No Release | A – Standard Actuator | No |
| 209309A-PB | KL4-SS QC-M23 230V (no release) c/w Pushbutton – std actuator | 230V | QC-M23 | No Release | A – Standard Actuator | Yes |
| 209309F | KL4-SS QC-M23 230V (no release) – flat actuator | 230V | QC-M23 | No Release | F – Flat Actuator | No |
| 209309F-PB | KL4-SS QC-M23 230V (no release) c/w Pushbutton – flat actuator | 230V | QC-M23 | No Release | F – Flat Actuator | Yes |
| 209309HF | KL4-SS QC-M23 230V (no release) – HF actuator | 230V | QC-M23 | No Release | HF – Metal Flexible Actuator | No |
| 209309HF-PB | KL4-SS QC-M23 230V (no release) c/w Pushbutton – HF actuator | 230V | QC-M23 | No Release | HF – Metal Flexible Actuator | Yes |
| 209309HFH | KL4-SS QC-M23 230V (no release) – HFH actuator | 230V | QC-M23 | No Release | HFH – Stainless Steel Flexible Actuator | No |
| 209309HFH-PB | KL4-SS QC-M23 230V (no release) c/w Pushbutton – HFH actuator | 230V | QC-M23 | No Release | HFH – Stainless Steel Flexible Actuator | Yes |
| 209409 | KL4-SS QC-M23 230V (lid release) | 230V | QC-M23 | Lid Only | No Actuator | No |
| 209409-PB | KL4-SS QC-M23 230V (lid release) c/w Pushbutton | 230V | QC-M23 | Lid Only | No Actuator | Yes |
| 209409A | KL4-SS QC-M23 230V (lid release) – std actuator | 230V | QC-M23 | Lid Only | A – Standard Actuator | No |
| 209409A-PB | KL4-SS QC-M23 230V (lid release) c/w Pushbutton – std actuator | 230V | QC-M23 | Lid Only | A – Standard Actuator | Yes |
| 209409F | KL4-SS QC-M23 230V (lid release) – flat actuator | 230V | QC-M23 | Lid Only | F – Flat Actuator | No |
| 209409F-PB | KL4-SS QC-M23 230V (lid release) c/w Pushbutton – flat actuator | 230V | QC-M23 | Lid Only | F – Flat Actuator | Yes |
| 209409HF | KL4-SS QC-M23 230V (lid release) – HF actuator | 230V | QC-M23 | Lid Only | HF – Metal Flexible Actuator | No |
| 209409HF-PB | KL4-SS QC-M23 230V (lid release) c/w Pushbutton – HF actuator | 230V | QC-M23 | Lid Only | HF – Metal Flexible Actuator | Yes |
| 209409HFH | KL4-SS QC-M23 230V (lid release) – HFH actuator | 230V | QC-M23 | Lid Only | HFH – Stainless Steel Flexible Actuator | No |
| 209409HFH-PB | KL4-SS QC-M23 230V (lid release) c/w Pushbutton – HFH actuator | 230V | QC-M23 | Lid Only | HFH – Stainless Steel Flexible Actuator | Yes |
