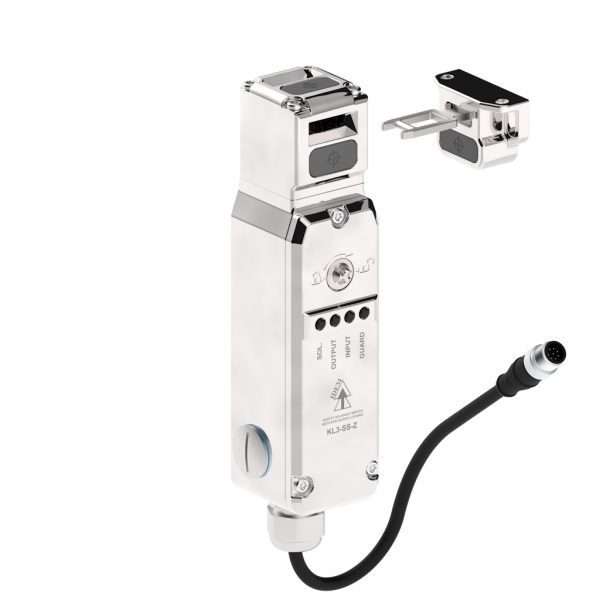

KL3-SS-Z QC-M12 Guard Locking Safety Switch with RFID, OSSD and M12 Quick Connect
The KL3-SS-Z QC M12 guard-locking RFID safety interlock with OSSD outputs features a robust 316 stainless steel enclosure with a mirror-polished finish for enhanced hygienic performance. Its robust design provides a holding force of up to 3000 N, helping keep medium to large guard doors securely closed until hazards have been removed.
The OSSD outputs allow up to 30 devices to be connected in series while maintaining a high level of functional safety. Integrated LEDs provide clear diagnostics for device status, including solenoid state, guard position, and input/output status.
Information with regard to UL Standards
Type 1 enclosure. Use Class 2 power supply or equivalent. Maximum temperature 40°C. Use 16-28AWG copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. Safety Circuits (11-12 & 21-22) 24V.dc 200mA max. Use one polymeric conduit connection. Not suitable for connection to rigid metal conduit. (Earth bonding terminal inside metal enclosures (if required). Use 16-12AWG conductors)
Note
Suitable for Splash Zones in accordance with EHEDG guidelines.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Tensiune | Connection Type | Auxiliary Override | Actuator |
|---|---|---|---|---|---|
| 456003AZ | KL3-SS-Z QC-M12 (manual release lid and side) – Std Actuator | 24V | QC-M12 | Lid and Side | AZ – Standard RFID Actuator |
| 456003HFZ | KL3-SS-Z QC-M12 (manual release lid and side) – Heavy Duty Actuator | 24V | QC-M12 | Lid and Side | HFZ – Stainless Steel Flexible RFID Actuator |
| 456303AZ | KL3-SS-Z QC-M12 (no release) – Std Actuator | 24V | QC-M12 | No Release | AZ – Standard RFID Actuator |
| 456303HFZ | KL3-SS-Z QC-M12 (no release) – Heavy Duty Actuator | 24V | QC-M12 | No Release | HFZ – Stainless Steel Flexible RFID Actuator |
| 456403AZ | KL3-SS-Z QC-M12 (lid only release) – Std Actuator | 24V | QC-M12 | Lid Only | AZ – Standard RFID Actuator |
| 456403HFZ | KL3-SS-Z QC-M12 (lid only release) – Heavy Duty Actuator | 24V | QC-M12 | Lid Only | HFZ – Stainless Steel Flexible RFID Actuator |
