KM-SS

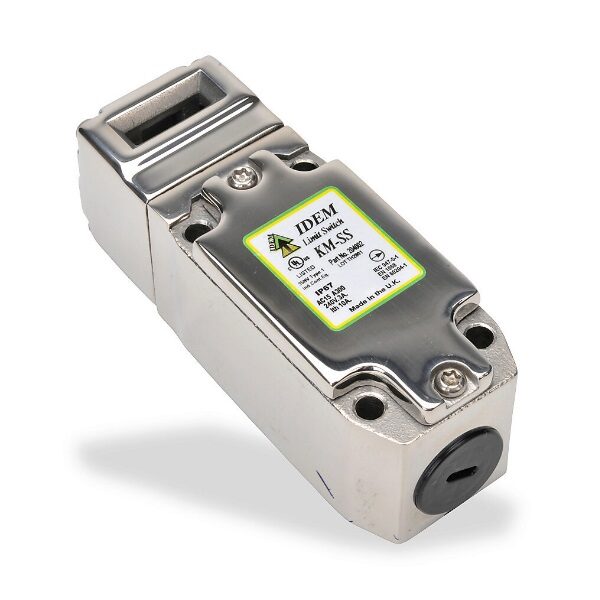

Tongue Interlock Safety Switch HYGIECAM

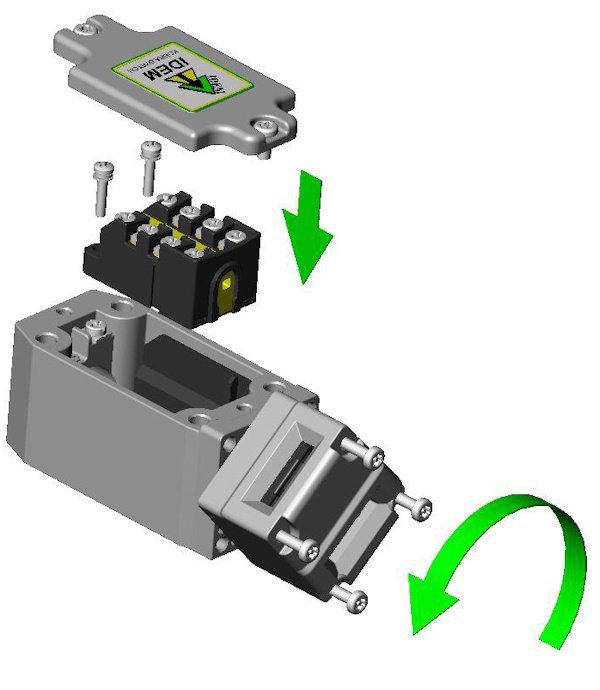

KM-SS features a slimline, IP69K 316 stainless steel housing, designed to cope with the rigorous applications of the Food Processing and Packaging, Pharmaceutical and Petro-Chemical Industries. The head can be rotated to give up to eight actuator entry positions.

Housing/Fixing: Industry standard housing with 30mm fixing holes
Material: Mirror Polished Ra10, 316 Stainless Steel
Contacts: 3 N/C, 2 N/C + 1 N/O, 2 N/C + 2 N/O or 4 N/C
Connection: Wired or M12 Quick Connect

Information with regard to UL Standards

Electrical Rating Pilot Duty A300 240V.ac 3A. 6,000 cycles

Maximum ambient temperature +80 °C

Use 16 - 12AWG stranded copper insulated conductors rated 90ºC minimum. (75C. ampacity)

Terminal tightening torque 7ibs ins (0.8Nm)

Intended for same polarity use and one polymeric conduit connection

Not suitable for connection to a rigid metal conduit system

(Earth bonding terminal inside enclosure if required – use 16-12AWG conductors)

Request a quote for KM-SS Official page ↗

Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.

Product Type	Cod produs	Descriere
KM-SS	204001	KM-SS M20 2NC 1NO
KM-SS	204001-40N	KM-SS M20 2NC 1NO- 40N
KM-SS	204001A	KM-SS M20 2NC 1NO – std actuator
KM-SS	204001F	KM-SS M20 2NC 1NO – flat actuator
KM-SS	204001HF	KM-SS M20 2NC 1NO – HF actuator
KM-SS	204001HFH	KM-SS M20 2NC 1NO – HFH actuator
KM-SS	204001PF	KM-SS M20 2NC 1NO – PF actuator
KM-SS	204002	KM-SS ½NPT 2NC 1NO
KM-SS	204002A	KM-SS ½NPT 2NC 1NO – std actuator
KM-SS	204002F	KM-SS ½NPT 2NC 1NO – flat actuator
KM-SS	204002HF	KM-SS ½NPT 2NC 1NO – HF actuator
KM-SS	204002HFH	KM-SS ½NPT 2NC 1NO – HFH Actuator
KM-SS	204002PF	KM-SS ½NPT 2NC 1NO – PF actuator
KM-SS	204003	KM-SS QC M23 12way 2NC 1NO
KM-SS	204003A	KM-SS QC M23 12way 2NC 1NO – std actuator
KM-SS	204003F	KM-SS QC M23 12way 2NC 1NO – flat actuator
KM-SS	204003HF	KM-SS QC M23 12way 2NC 1NO – HF actuator
KM-SS	204003HFH	KM-SS QC M23 12way 2NC 1NO – HFH actuator
KM-SS	204003PF	KM-SS QC M23 12way 2NC 1NO – PF actuator
KM-SS	204004	KM-SS M20 3NC
KM-SS	204004A	KM-SS M20 3NC – std actuator
KM-SS	204004F	KM-SS M20 3NC – flat actuator
KM-SS	204004HF	KM-SS M20 3NC – HF actuator
KM-SS	204004HFH	KM-SS M20 3NC – HFH actuator
KM-SS	204004PF	KM-SS M20 3NC – PF actuator
KM-SS	204005	KM-SS ½NPT 3NC
KM-SS	204005A	KM-SS ½NPT 3NC – std actuator
KM-SS	204005F	KM-SS ½NPT 3NC – flat actuator
KM-SS	204005HF	KM-SS ½NPT 3NC – HF actuator
KM-SS	204005HFH	KM-SS ½NPT 3NC – HFH actuator
KM-SS	204005PF	KM-SS ½NPT 3NC – PF actuator
KM-SS	204006	KM-SS QC M23 12way 3NC
KM-SS	204006A	KM-SS QC M23 12way 3NC – std actuator
KM-SS	204006F	KM-SS QC M23 12way 3NC – flat actuator
KM-SS	204006HF	KM-SS QC M23 12way 3NC – HF actuator
KM-SS	204006HFH	KM-SS QC M23 12way 3NC – HFH actuator
KM-SS	204006PF	KM-SS QC M23 12way 3NC – PF actuator
KM-SS	204007	KM-SS M20 3NC 1NO
KM-SS	204007A	KM-SS M20 3NC 1NO – std actuator
KM-SS	204007F	KM-SS M20 3NC 1NO – flat actuator
KM-SS	204007HF	KM-SS M20 3NC 1NO – HF actuator
KM-SS	204007HFH	KM-SS M20 3NC 1NO – HFH actuator
KM-SS	204007PF	KM-SS M20 3NC 1NO – PF actuator
KM-SS	204008	KM-SS ½NPT 3NC 1NO
KM-SS	204008A	KM-SS ½NPT 3NC 1NO – std actuator
KM-SS	204008F	KM-SS ½NPT 3NC 1NO – flat actuator
KM-SS	204008HF	KM-SS ½NPT 3NC 1NO – HF actuator
KM-SS	204008HFH	KM-SS ½NPT 3NC 1NO – HFH actuator
KM-SS	204008PF	KM-SS ½NPT 3NC 1NO – PF actuator
KM-SS	204009	KM-SS QC M23 12way 3NC 1NO
KM-SS	204009A	KM-SS QC M23 12way 3NC 1NO – std actuator
KM-SS	204009F	KM-SS QC M23 12way 3NC 1NO – flat actuator
KM-SS	204009HF	KM-SS QC M23 12way 3NC 1NO – HF actuator
KM-SS	204009HFH	KM-SS QC M23 12way 3NC 1NO – HFH actuator
KM-SS	204009PF	KM-SS QC M23 12way 3NC 1NO – PF actuator
KM-SS	204010	KM-SS M20 2NC 2NO
KM-SS	204010A	KM-SS M20 2NC 2NO – std actuator
KM-SS	204010F	KM-SS M20 2NC 2NO – flat actuator
KM-SS	204010HF	KM-SS M20 2NC 2NO – HF actuator
KM-SS	204010HFH	KM-SS M20 2NC 2NO – HFH actuator
KM-SS	204010PF	KM-SS M20 2NC 2NO – PF actuator
KM-SS	204011	KM-SS ½NPT 2NC 2NO
KM-SS	204011A	KM-SS ½NPT 2NC 2NO – std actuator
KM-SS	204011F	KM-SS ½NPT 2NC 2NO – flat actuator
KM-SS	204011HF	KM-SS ½NPT 2NC 2NO – HF actuator
KM-SS	204011HFH	KM-SS ½NPT 2NC 2NO – HFH actuator
KM-SS	204011PF	KM-SS ½NPT 2NC 2NO – PF actuator
KM-SS	204012	KM-SS QC M23 12way 2NC 2NO
KM-SS	204012A	KM-SS QC M23 12way 2NC 2NO – std actuator
KM-SS	204012F	KM-SS QC M23 12way 2NC 2NO – flat actuator
KM-SS	204012HF	KM-SS QC M23 12way 2NC 2NO – HF actuator
KM-SS	204012HFH	KM-SS QC M23 12way 2NC 2NO – HFH actuator
KM-SS	204012PF	KM-SS QC M23 12way 2NC 2NO – PF actuator
KM-SS	204013	KM-SS M20 4NC
KM-SS	204013A	KM-SS M20 4NC – std actuator
KM-SS	204013F	KM-SS M20 4NC – flat actuator
KM-SS	204013HF	KM-SS M20 4NC – HF actuator
KM-SS	204013HFH	KM-SS M20 4NC – HFH actuator
KM-SS	204013PF	KM-SS M20 4NC – PF actuator
KM-SS	204014	KM-SS ½NPT 4NC
KM-SS	204014A	KM-SS ½NPT 4NC – std actuator
KM-SS	204014F	KM-SS ½NPT 4NC – flat actuator
KM-SS	204014HF	KM-SS ½NPT 4NC – HF actuator
KM-SS	204014HFH	KM-SS ½NPT 4NC – HFH actuator
KM-SS	204014PF	KM-SS ½NPT 4NC – PF actuator
KM-SS	204015	KM-SS QC M23 12way 4NC
KM-SS	204015A	KM-SS QC M23 12way 4NC – std actuator
KM-SS	204015F	KM-SS QC M23 12way 4NC – flat actuator
KM-SS	204015HF	KM-SS QC M23 12way 4NC – HF Actuator
KM-SS	204015HFH	KM-SS QC M23 12way 4NC – HFH Actuator
KM-SS	204015PF	KM-SS QC M23 12way 4NC – PF actuator
KM-SS	204021	KM-SS QC M12 8way 2NC 1NO
KM-SS	204021A	KM-SS QC M12 8way 2NC 1NO – std actuator
KM-SS	204021F	KM-SS QC M12 8way 2NC 1NO – flat actuator
KM-SS	204021HF	KM-SS QC M12 8way 2NC 1NO – HF actuator
KM-SS	204021HFH	KM-SS QC M12 8way 2NC 1NO – HFH actuator
KM-SS	204021PF	KM-SS QC M12 8way 2NC 1NO – PF actuator
KM-SS	204022	KM-SS QC M12 8way 3NC
KM-SS	204022A	KM-SS QC M12 8way 3NC – std actuator
KM-SS	204022F	KM-SS QC M12 8way 3NC – flat actuator
KM-SS	204022HF	KM-SS QC M12 8way 3NC – HF actuator
KM-SS	204022HFH	KM-SS QC M12 8way 3NC – HFH actuator
KM-SS	204022PF	KM-SS QC M12 8way 3NC – PF actuator
