HLM-SS-AL

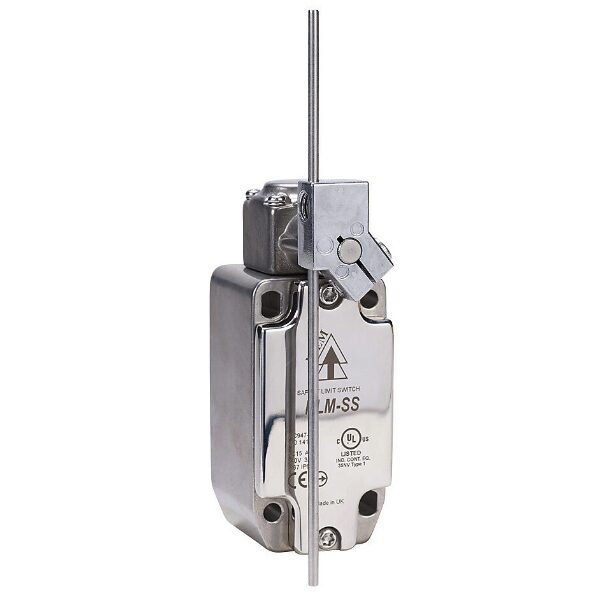

Stainless Steel Safety Limit Switch with Lever Arm
The lever arm limit switches from IDEM Safety are designed to be mounted for position sensing of moving applications e.g., guard doors, conveyors, machine beds, elevators etc. The internal contact block is positively operated to comply with IEC 60947-5-1.
- Material
- 316 Stainless Steel with Mirror Polished Lid
- Actuation
- Lever Arm
- Ingress Protection
- IP69K
Information with regard to UL Standards
Type 1 Enclosures. Use 16 - 12AWG copper conductors, rated 75ºC minimum. Intended for same polarity use. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 240V. 10A. carry only. Wire range: 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) Earth bonding terminal inside enclosure if required.
Note
Gold plated contacts are available for circuits with low power (5V 5mA).
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 175251 | HLM-SS Lever Arm M20 2NC 2NO |
| 175252 | HLM-SS Lever Arm ½NPT 2NC 2NO |
| 175253 | HLM-SS Lever Arm QC-M23 2NC 2NO |
| 175254 | HLM-SS Lever Arm M20 3NC 1NO |
| 175254-GC | HLM-SS Lever Arm M20 3NC 1NO – with Gold Contacts |
| 175255 | HLM-SS Lever Arm ½NPT 3NC 1NO |
| 175256 | HLM-SS Lever Arm QC-M23 3NC 1NO |
| 175257 | HLM-SS Lever Arm M20 4NC |
| 175258 | HLM-SS Lever Arm ½NPT 4NC |
| 175259 | HLM-SS Lever Arm QC-M23 4NC |
| 175260 | HLM-SS Lever Arm M20 1NC 1NO Snap |
| 175261 | HLM-SS Lever Arm ½NPT 1NC 1NO Snap |
| 175262 | HLM-SS Lever Arm QC-M23 1NC 1NO Snap |
