GLS

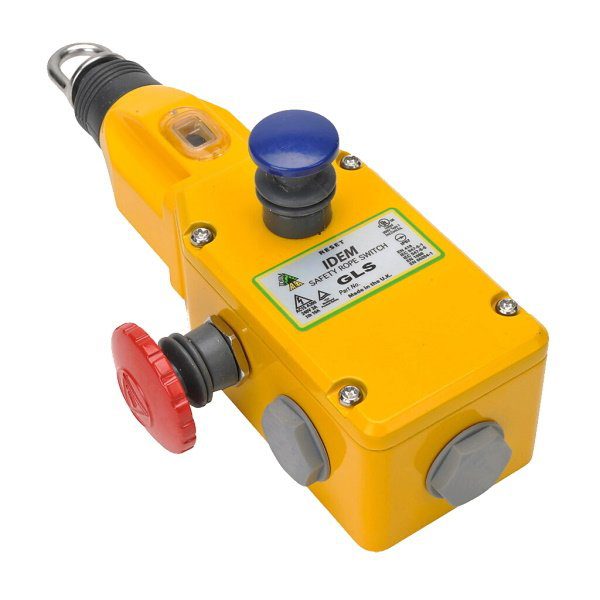

Guardian Line Standard Duty Rope Safety Switch

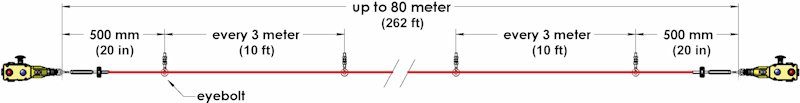

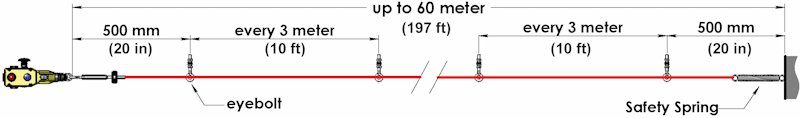

The GLS standard duty safety rope pull switch has been designed to protect medium to long conveyor lengths, where protection is required up to 100m (using 2 switches) or up to 80m (using 1 switch).
- Body Material
- Die-Cast Metal; Painted Yellow
- Ingress Protection
- IP67
- Contacts
- 3-Pole or 4-Pole Contacts
- Cable Length (1 Switch)
- 80m
- Cable Length (2 Switches)
- 100m
Informații privind UL508
Type 1 Enclosures. Temperature rating 80C. Use 16 - 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range: 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
Note
FZ models for temperatures down to -40°C.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 142001 | GLS M20 2NC 1NO |
| 142001-FZ | GLS M20 2NC 1NO (-40° version) |
| 142001-QCM12 | GLS QC M12 2NC 1NO |
| 142002 | GLS ½NPT 2NC 1NO |
| 142002-FZ | GLS ½NPT 2NC 1NO (-40° version) |
| 142009 | GLS M20 2NC 1NO E Stop |
| 142009-QCM12 | GLS QC M12 2NC 1NO E Stop |
| 142009FZ | GLS M20 2NC 1NO EStop – Special low temp version |
| 142010 | GLS ½NPT 2NC 1NO E Stop |
| 142010-FZ | GLS ½NPT 2NC 1NO E Stop (-40° version) |
| 142050 | GLS M20 3NC 1NO |
| 142050-FZ | GLS M20 3NC 1NO (-40° version) |
| 142050-QCM23 | GLS QC M23 3NC 1NO |
| 142051 | GLS ½NPT 3NC 1NO |
| 142051-FZ | GLS ½NPT 3NC 1NO (-40° version) |
| 142052 | GLS M20 2NC 2NO |
| 142052-FZ | GLS M20 2NC 2NO (-40° version) |
| 142052-QCM23 | GLS QC M23 2NC 2NO |
| 142053 | GLS ½NPT 2NC 2NO |
| 142053-FZ | GLS ½NPT 2NC 2NO (-40° version) |
| 142054 | GLS M20 4NC |
| 142054-FZ | GLS M20 4NC (-40° version) |
| 142055 | GLS ½NPT 4NC |
| 142055-FZ | GLS ½NPT 4NC (-40° version) |
| 142062 | GLS M20 3NC 1NO E Stop |
| 142062-FZ | GLS M20 3NC 1NO E Stop (-40° version) |
| 142062-QCM23 | GLS QC M23 3NC 1NO E Stop |
| 142063 | GLS ½NPT 3NC 1NO E Stop |
| 142063-FZ | GLS ½NPT 3NC 1NO E Stop (-40° version) |
| 142064 | GLS M20 2NC 2NO E Stop |
| 142064-FZ | GLS M20 2NC 2NO E Stop (-40° version) |
| 142064-QCM23 | GLS QC M23 2NC 2NO E Stop |
| 142065 | GLS ½NPT 2NC 2NO E Stop |
| 142065-FZ | GLS ½NPT 2NC 2NO E Stop (-40° version) |
| 142066 | GLS M20 4NC E Stop |
| 142066-FZ | GLS M20 4NC E Stop (-40° version) |
| 142067 | GLS ½NPT 4NC E Stop |
| 142067-FZ | GLS ½NPT 4NC E Stop (-40° version) |
