GLM-SS

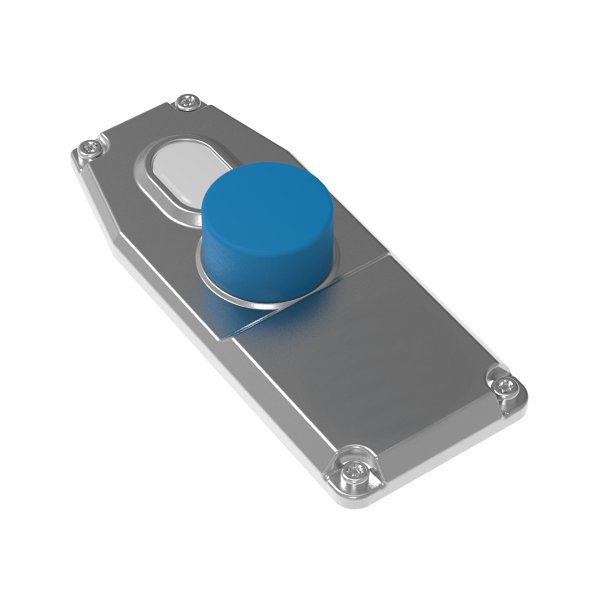

Guardian Line Mini Duty Rope Pull Safety Switches

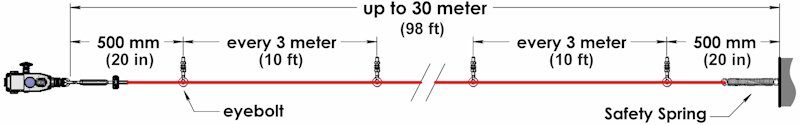

The GLM-SS mini duty safety rope pull switch has been designed to protect short to medium conveyor lengths, where protection is required up to 50m (using 2 switches) or up to 30m (using 1 switch).
- Body Material
- Stainless Steel 316
- Ingress Protection
- IP69K
- Contacts
- 3-Pole or 4-Pole Contacts
- Cable Length (1 Switch)
- 30m
- Cable Length (2 Switches)
- 50m
Informații privind UL508
Type 1 Enclosures. Temperature rating 80C. Use 16 - 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range: 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 148001 | GLM-SS M20 2NC 1NO |
| 148002 | GLM-SS ½NPT 2NC 1NO |
| 148003 | GLM-SS M20 3NC |
| 148004 | GLM-SS ½NPT 3NC |
| 148005 | GLM-SS M20 2NC 1NO E Stop |
| 148006 | GLM-SS ½NPT 2NC 1NO E Stop |
| 148007 | GLM-SS M20 3NC E Stop |
| 148008 | GLM-SS ½NPT 3NC E Stop |
| 148050 | GLM-SS M20 3NC 1NO |
| 148051 | GLM-SS ½NPT 3NC 1NO |
| 148052 | GLM-SS M20 2NC 2NO |
| 148053 | GLM-SS ½NPT 2NC 2NO |
| 148054 | GLM-SS M20 4NC |
| 148055 | GLM-SS ½NPT 4NC |
| 148056 | GLM-SS M20 3NC 1NO E Stop |
| 148057 | GLM-SS ½NPT 3NC 1NO E Stop |
| 148058 | GLM-SS M20 2NC 2NO E Stop |
| 148059 | GLM-SS ½NPT 2NC 2NO E Stop |
| 148060 | GLM-SS M20 4NC E Stop |
| 148061 | GLM-SS ½NPT 4NC E Stop |
