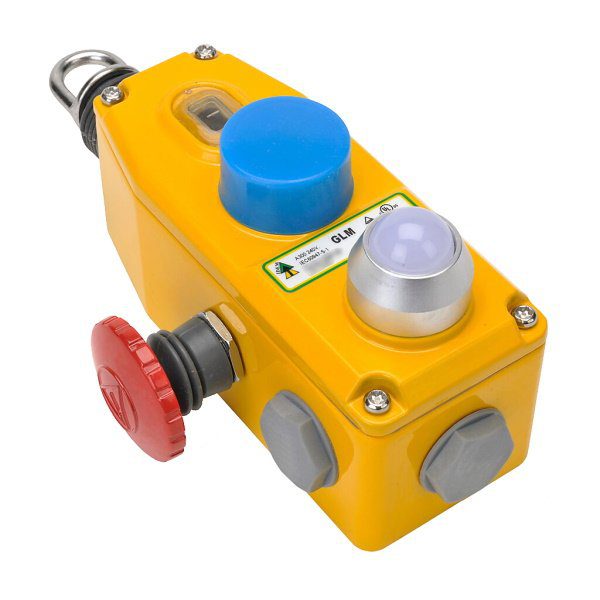

Guardian Line Mini Duty Rope Pull Safety Switches with Indication (GLM with LED)

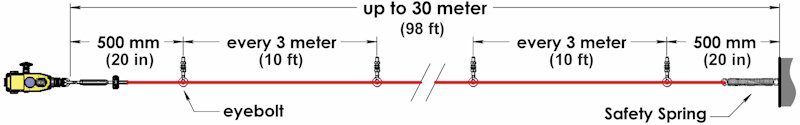

The GLM mini duty safety rope pull switch has been designed to protect short to medium conveyor lengths, where protection is required up to 50m (using 2 switches) or up to 30m (using 1 switch).
- Body Material
- Die-Cast Metal; Painted Yellow
- Ingress Protection
- IP67
- Contacts
- 3-Pole or 4-Pole Contacts
- LED Voltage
- 24Vdc, 110Vac or 230Vac
- Cable Length (1 Switch)
- 30m
- Cable Length (2 Switches)
- 50m
Informații privind UL508
Type 1 Enclosures. Temperature rating 80C. Use 16 - 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range: 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 143062-AS | GLM M20 3NC 1NO Steady LED 24V |
| 143062A | GLM M20 3NC 1NO LED 24V |
| 143062B | GLM M20 3NC 1NO LED 110V |
| 143062C | GLM M20 3NC 1NO LED 230V |
| 143063A | GLM ½NPT 3NC 1NO LED 24V |
| 143063B | GLM ½NPT 3NC 1NO LED 110V |
| 143063C | GLM ½NPT 3NC 1NO LED 230V |
| 143064A | GLM M20 2NC 2NO LED 24V |
| 143064B | GLM M20 2NC 2NO LED 110V |
| 143064C | GLM M20 2NC 2NO LED 230V |
| 143065A | GLM ½NPT 2NC 2NO 24V |
| 143065B | GLM ½NPT 2NC 2NO 110V |
| 143065C | GLM ½NPT 2NC 2NO 230V |
| 143066-AS | GLM M20 3NC 1NO E Stop & Steady LED 24V |
| 143066A | GLM M20 3NC 1NO E Stop & LED 24V |
| 143066B | GLM M20 3NC 1NO E Stop & LED 110V |
| 143066C | GLM M20 3NC 1NO E Stop & LED 230V |
| 143067-AS | GLM ½”NPT 3NC 1NO E Stop & Steady LED 24V |
| 143067-BS | GLM ½”NPT 3NC 1NO E Stop & Steady LED 110V |
| 143067A | GLM ½NPT 3NC 1NO E Stop & LED 24V |
| 143067B | GLM ½NPT 3NC 1NO E Stop & LED 110V |
| 143067C | GLM ½NPT 3NC 1NO E Stop & LED 230V |
| 143068-AS | GLM M20 2NC 2NO E Stop & LED 24V |
| 143068A | GLM M20 2NC 2NO E Stop & LED 24V |
| 143068B | GLM M20 2NC 2NO E Stop & LED 110V |
| 143068C | GLM M20 2NC 2NO E Stop & LED 230V |
| 143069A | GLM ½NPT 2NC 2NO E Stop & LED 24V |
| 143069B | GLM ½NPT 2NC 2NO E Stop & LED 110V |
| 143069C | GLM ½NPT 2NC 2NO E Stop & LED 230V |
