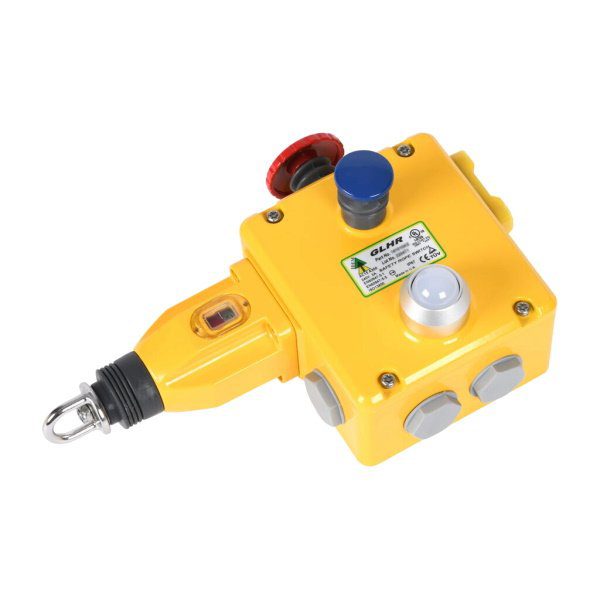

Guardian Line Heavy Duty Safety Rope Pull Switches with Indication (GLHR with LED)
The GLHR heavy duty safety rope pull switch has been designed to protect long conveyor lengths, where protection is required up to 125m (using 2 switches) or up to 100m (using 1 switch). The GLHR can be used on its own or in combination with the GLHD to connect up to 125m rope span from the right side.
- Body Material
- Die-Cast Metal; Painted Yellow
- Ingress Protection
- IP67
- Contacts
- 4NC + 2NO
- LED Voltage
- 24Vdc, 110Vac or 230Vac
- Cable Length (1 Switch)
- 100m right
- Cable Length (2 Switches)
- 125m right
Informații privind UL508
Type 1 Enclosures. Temperature rating 80C. Use 16 - 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range: 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
Note
FZ models for temperatures down to -40°C.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 141009-AS | GLHR M20 4NC 2NO E Stop & LED Steady Red & Green 24V |
| 141009-BS | GLHR M20 4NC 2NO E Stop & LED 110V Steady Red & Green |
| 141009A | GLHR M20 4NC 2NO E Stop & LED 24V |
| 141009A-FZ | GLHR M20 4NC 2NO E Stop & LED 24V |
| 141009AS-FZ | GLHR M20 4NC 2NO E Stop & Steady LED 24V |
| 141009B | GLHR M20 4NC 2NO E Stop & LED 110V |
| 141009B-FZ | GLHR M20 4NC 2NO E Stop & LED 110v/120v |
| 141009C | GLHR M20 4NC 2NO E Stop & LED 230V |
| 141009C-FZ | GLHR M20 4NC 2NO E Stop & LED 230V |
| 141010A | GLHR ½NPT 4NC 2NO E Stop & LED 24V |
| 141010A-FZ | GLHR ½NPT 4NC 2NO E Stop & LED 24V |
| 141010B | GLHR ½NPT 4NC 2NO E Stop & LED 110V |
| 141010B-FZ | GLHR ½NPT 4NC 2NO E Stop & LED 110v/120v |
| 141010C | GLHR ½NPT 4NC 2NO E Stop & LED 230V |
| 141010C-FZ | GLHR ½NPT 4NC 2NO E Stop & LED 230V |
| 141054-AS | GLHR M20 4NC 2NO LED 24V – steady red/green |
| 141054A | GLHR M20 4NC 2NO LED 24V |
| 141054A-FZ | GLHR M20 4NC 2NO LED 24V |
| 141054B | GLHR M20 4NC 2NO LED 110V |
| 141054B-FZ | GLHR M20 4NC 2NO LED 110v/120v |
| 141054C | GLHR M20 4NC 2NO LED 230V |
| 141054C-FZ | GLHR M20 4NC 2NO LED 230V |
| 141056A | GLHR ½NPT 4NC 2NO LED 24V |
| 141056A-FZ | GLHR ½NPT 4NC 2NO LED 24V |
| 141056B | GLHR ½NPT 4NC 2NO LED 110V |
| 141056B-FZ | GLHR ½NPT 4NC 2NO LED 110v/120v |
| 141056C | GLHR ½NPT 4NC 2NO LED 230V |
| 141056C-FZ | GLHR ½NPT 4NC 2NO LED 230V |
