GLHL-SS

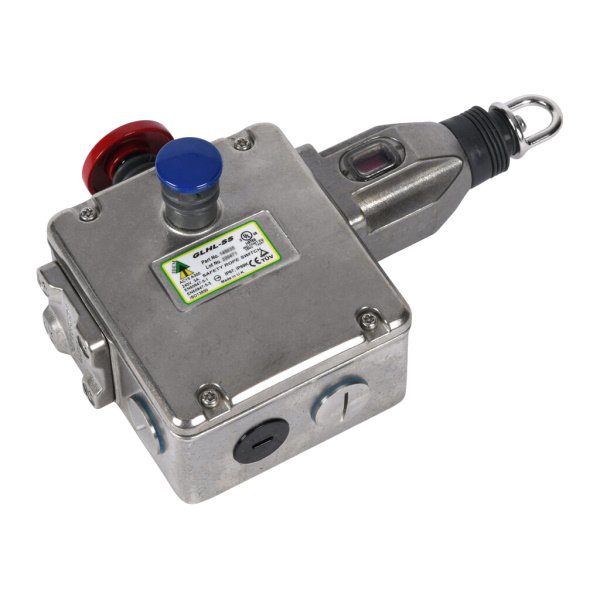

Guardian Line Heavy Duty Safety Rope Pull Switches
The GLHL-SS heavy duty safety rope pull switch has been designed to protect long conveyor lengths, where protection is required up to 125m (using 2 switches) or up to 100m (using 1 switch). The GLHL-SS can be used on its own or in combination with the GLHD-SS to connect up to 125m rope span from the left side.
- Body Material
- Stainless Steel 316
- Ingress Protection
- IP69K
- Contacts
- 4NC + 2NO
- Cable Length (1 Switch)
- 100m left
- Cable Length (2 Switches)
- 125m left
Informații privind UL508
Type 1 Enclosures. Temperature rating 80C. Use 16 - 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range: 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
Note
FZ models for temperatures down to -40°C.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 145035 | GLHL-SS ½NPT 4NC 2NO E stop |
| 145035-FZ | GLHL-SS ½NPT 4NC 2NO E stop |
| 145037 | GLHL-SS M20 4NC 2NO |
| 145037-FZ | GLHL-SS M20 4NC 2NO -(-40° version) |
| 145051 | GLHL-SS M20 4NC 2NO E stop |
| 145051-FZ | GLHL-SS M20 4NC 2NO E stop |
| 145057 | GLHL-SS ½NPT 4NC 2NO |
| 145057-FZ | GLHL-SS 1/2NPT 4NC 2NO – (-40° version) |
| 182109 | GLHL-SS M20 Rope Switch – 2 Wire Bus |
| 182110 | GLHL-SS ½NPT Rope Switch – 2 Wire Bus |
