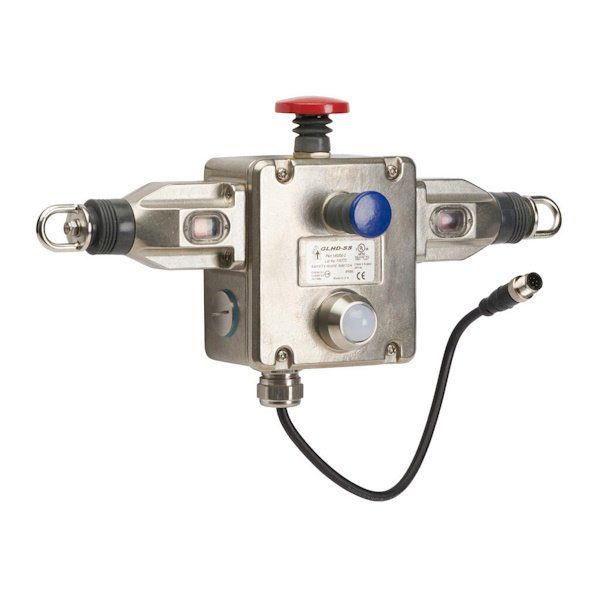

GLHD-SS-Z
Z-Range Heavy Duty Safety Rope Pull Switches with Dual Head
The GLHD-SS-Z heavy duty safety rope pull switch has been designed to protect long conveyor lengths. The dual head is capable of protecting up to 250m and shorter rope spans up to 200m can be achieved using a single switch. This makes for a cost-effective solution, as it reduces electrical wiring runs and the total number of switches required.
- Body Material
- Stainless Steel 316
- Ingress Protection
- IP69K (IP67 at the connector)
- Contacts
- 2 OSSD + 1 Auxiliary Output
- Cable Length (1 Switch)
- 100m left / 100m right
- Cable Length (3 Switches)
- 125m left / 125m right
Information with regard to UL Standards
Type 1 Enclosures. Maximum temperature 50ºC. Maximum output 24V DC 100mA. Powered by Class 2 or equivalent.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere | Configurație contacte | Conectare |
|---|---|---|---|
| 145300-Z | GLHD-SS-Z Z-Range 2 OSSD 1 Auxiliary M12-QC | 2 OSSD PNP + 1 PNP AUX. | 250mm Pigtail M12-QC 8-PIN |
