ES-SS-P

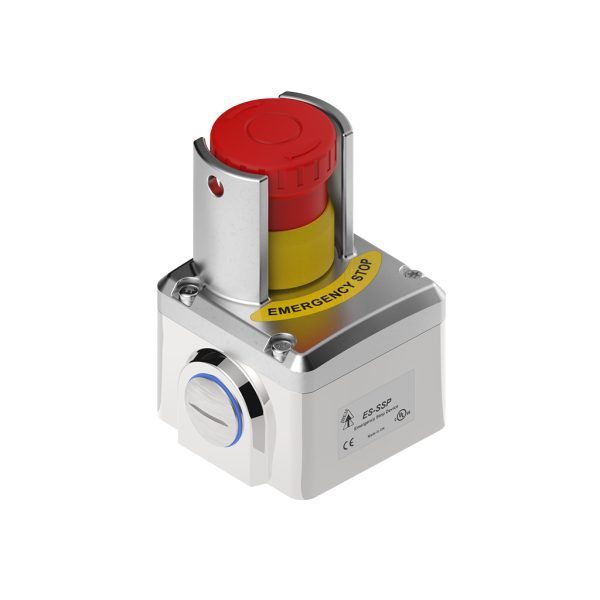

Emergency Stop Device with Shroud 3-Pole Contacts in 316 Stainless Steel
IDEM’s Heavy Duty Emergency Stop Switches are designed to provide robust Emergency Stop protection for exposed conveyors or machines. The IP69K enclosure protection is maintained by a double seal gasket and anti-rust, stainless steel internal screws.
- Body Material
- Mirror Polished 316 Grade Stainless Steel
- Ingress Protection
- IP69K
- Contacts
- 3NC or 2NC + 1NO
- Conduits
- 2 x M20 or ½” NPT
Informații privind UL508
Type 1 Enclosure Contact Blocks A300 230V/3A 120V/6A Wire range: 16AWG – 12AWG Stranded Copper Conductors Terminal Torque 7lb/in (0.8Nm) 24V LED (if fitted) powered by LVLC or Class 2 only.
Notă importantă
Where the risk assessment identifies that inadvertent operation of the E-Stop button may occur during use or breakage and loss of the button function is foreseen, it may be preferable to specify the protection shroud version. When required by local regulations, please affix the supplied yellow emergency stop sticker.
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 231005 | ES-SS(P) M20 2NC 1NO |
| 231006 | ES-SS(P) ½NPT 2NC 1NO |
| 231007 | ES-SS(P) M20 3NC |
