501091

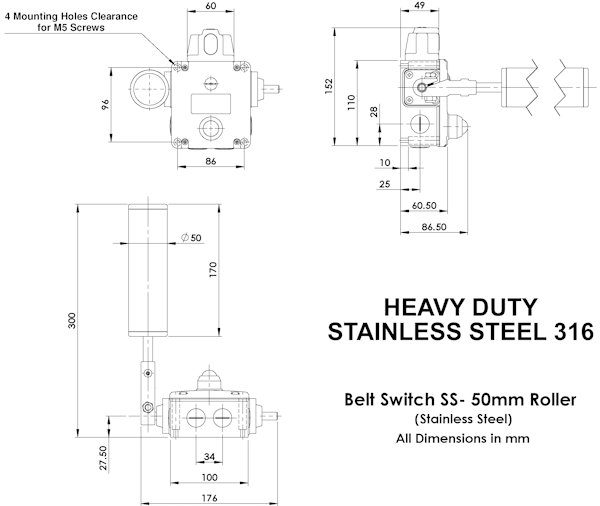

Belt Alignment Switch – Explosion Proof, Heavy Duty, 50mm Diameter with 170mm Length Roller
IDEM’s stainless steel heavy duty conveyor belt alignment switches are designed for use on the running edge of conveyor belts. They are suitable for both indoor and outdoor use and can withstand extreme weather conditions.
- Body Material
- Stainless Steel 316
- Ingress Protection
- IP69K
- Contacts
- 2-Pole or 4-Pole Ex Rated Contact Blocks
- Zones
- 1, 21, 2, 22
- Ex Marking
- Exd IIC T6 (-20 ≤ Ta ≤ +60C) Gb / Ex tb IIIC T85C (-20 ≤ Ta ≤ +60C) Db
Clasificare Ex (ATEX / IECEx)
ATEX Zones 1,21,2,22
II 2G Ex mb IIC T6 Gb
II 2D Ex mb IIIC T80C Db
Notă importantă
Comes with 3m of pre-wired cable (longer available on request).
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 501091 | Belt Switch 50 x 170mm Roller EX 3m pre-wired |
| 501091-5M | Belt Switch 50 x 170mm Roller EX 5m pre-wired |
| 501091-10M | Belt Switch 50 x 170mm Roller EX 10m pre-wired |
| 501091-15M | Belt Switch 50 x 170mm Roller EX 15m pre-wired |
| 501091-20M | Belt Switch 50 x 170mm Roller EX 20m pre-wired |
