HLM-SS-CBA-EX
Miniature Belt Alignment Switch – Explosion Proof, 22mm Diameter with 70mm Length Roller
IDEM’s Stainless Steel miniature conveyor belt alignment switches are designed for use on the running edge of conveyor belts. They are suitable for both indoor and outdoor use and can withstand extreme weather conditions. Unlike the larger belt alignment switches, the mini duty versions only feature a stop signal.
- Body Material
- 316 Stainless Steel Body / Stainless Steel or Plastic Roller
- Ingress Protection
- IP67 / IP69K
- Contacts
- 2-Pole or 4-Pole Ex Rated Contact Blocks
- Zones
- 1, 21, 2, 22
- Ex Marking
- Exd IIC T6 (-20 ≤ Ta ≤ +60C) Gb / Ex tb IIIC T85C (-20 ≤ Ta ≤ +60C) Db
Clasificare Ex (ATEX / IECEx)
ATEX Zones 1,21,2,22
II 2G Ex mb IIC T6 Gb
II 2D Ex mb IIIC T80C Db
Notă importantă
Comes with 3m of pre-wired cable (longer available on request).
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 175413 | Belt Switch Plastic Roller 1NC 1NO 3m Pre-Wired |
| 175414 | Belt Switch Plastic Roller 2NC 3m Pre-Wired |
| 175415 | Belt Switch Plastic Roller 2NC 2NO 3m Pre-Wired |
| 175463 | Belt Switch Stainless Steel Roller 1NC 1NO 3m Pre-Wired |
| 175464 | Belt Switch Stainless Steel Roller 2NC 3m Pre-Wired |
| 175465 | Belt Switch Stainless Steel Roller 2NC 2NO 3m Pre-Wired |
Products in the same category
HLM-CBA
HLM-CBA
Miniature Belt Alignment Switch – Explosion Proof, 22mm Diameter with 70mm Length Roller
500051

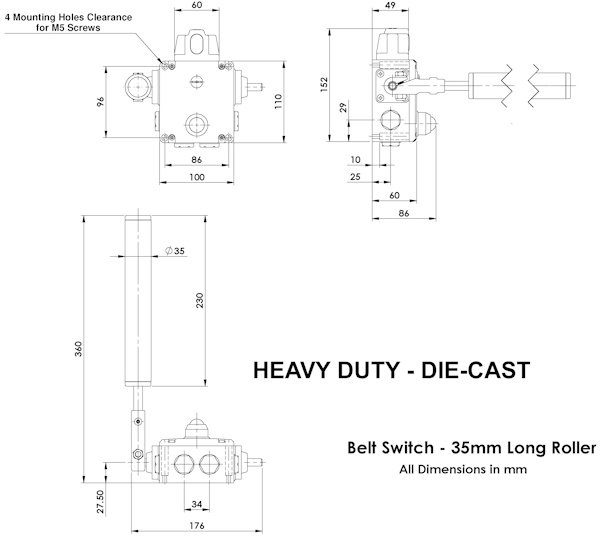

Belt Alignment Switch – Explosion Proof, Heavy Duty, 35mm Diameter with 230mm Length Roller
500021
Belt Alignment Switch – Explosion Proof, Heavy Duty, 35mm Diameter with 120mm Length Roller
500091

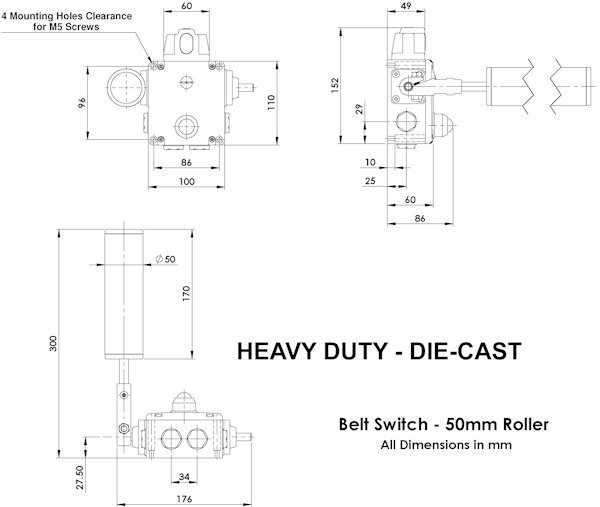

Belt Alignment Switch – Explosion Proof, Heavy Duty, 50mm Diameter with 170mm Length Roller
