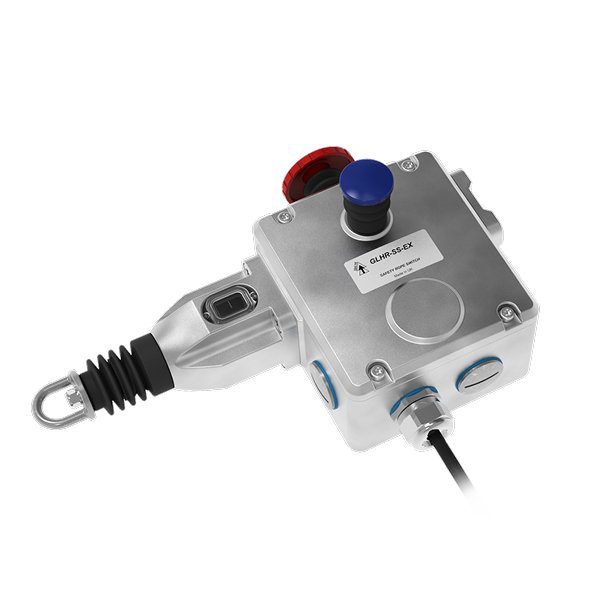

Safety Rope Pull Switch for Hazardous Areas (GLHR-SS-Ex)
The GLHR-SS-EX heavy duty safety rope pull switch has been designed to protect long conveyor lengths, where protection is required up to 125m (using 2 switches) or up to 100m (using 1 switch). The GLHR-SS-EX can be used on its own or in combination with the GLHR-SS-EX to connect up to 125m rope span from the right side.
- Body Material
- Stainless Steel 316
- Ingress Protection
- IP69K
- Contacts
- 2-Pole or 4-Pole Ex Rated Contact Blocks
- Cable Length (1 Switch)
- 100m Right
- Cable Length (2 Switches)
- 125m Right
- Zones
- 1, 21, 2, 22
- Ex Marking
- Exd IIC T6 (-20 ≤ Ta ≤ +60C) Gb / Ex tb IIIC T85C (-20 ≤ Ta ≤ +60C) Db
Clasificare Ex (ATEX / IECEx)
ATEX Zones 1,21,2,22
II 2G Ex mb IIC T6 Gb
II 2D Ex mb IIIC T80C Db
Notă importantă
Comes with 3m of pre-wired cable (longer available on request).
Technical data is taken from the manufacturer's documentation. For safety function sizing, please consult the official data sheet.
| Cod produs | Descriere |
|---|---|
| 145011 | GLHR-SS-Ex 3M ‘1NC 1NO’ c/w E-Stop |
| 145016 | GLHR-SS-Ex 3M ‘3NC 1NO’ c/w E-Stop |
| 145016-5M | GLHR-SS-Ex **5M** ‘3NC 1NO’ c/w E-Stop |
| 145021 | GLHR-SS-Ex 3M ‘2NO’ c/w E-Stop |
| 145022 | GLHR-SS-Ex 3M ‘2NC 2NO’ c/w E-Stop |
