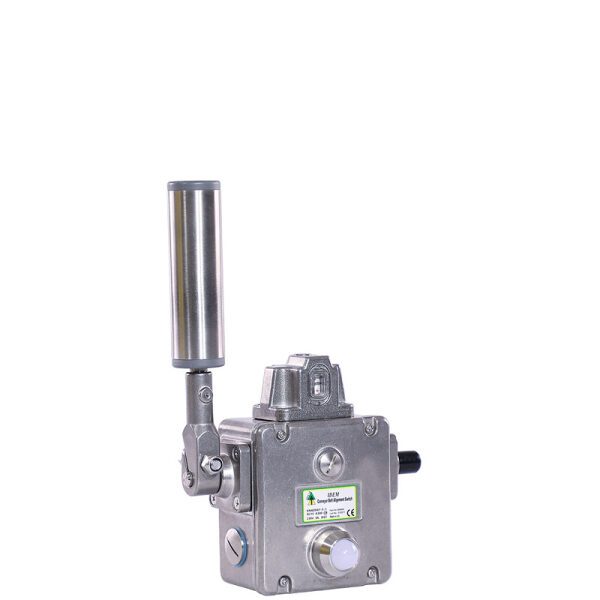

Belt Alignment Switch (Stainless Steel, Heavy Duty, 35mm Diameter with 120mm Length Roller)
IDEM’s stainless steel heavy duty conveyor belt alignment switches are designed for use on the running edge of conveyor belts. They are suitable for both indoor and outdoor use and can withstand extreme weather conditions.
- Body Material
- Stainless Steel 316
- Ingress Protection
- IP69K
- Contacts
- 1NC + 1NO Warning Signal / 1NC + 1NO Stop Signal
- Connectivity
- 4 x M20 or ½” NPT Conduits
Informații privind UL508
Type 1 Enclosures. Use 16 - 14AWG copper conductors, rated 70ºC only. Intended for same polarity use. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 120V.ac 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V.ac 10A. carry only. Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
The device is permitted to control more than one load provided the total load connected to the line at one time does not exceed 1440 volt-amperes, or have a current rating greater than 30 amperes at 51-150 volts or 20 amperes at 151 to 300 volts.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 501001 | Belt Switch SS 35mm Roller Short M20 2NC 2NO |
| 501002 | Belt Switch SS 35mm Roller Short 1/2″ NPT 2NC 2NO |
| 501003A | Belt Switch SS 35mm Roller Short M20 2NC 2NO 24v LED |
| 501003A | Belt Switch SS 35mm Roller Short M20 2NC 2NO 24v LED |
| 501003B | Belt Switch SS 35mm Roller Short M20 2NC 2NO 110v LED |
| 501003C | Belt Switch SS 35mm Roller Short M20 2NC 2NO 230v LED |
| 501004A | Belt Switch SS 35mm Roller Short 1/2″ NPT 2NC 2NO 24v LED |
| 501004B | Belt Switch SS 35mm Roller Short 1/2″ NPT 2NC 2NO 110v LED |
| 501004C | Belt Switch SS 35mm Roller Short 1/2″ NPT 2NC 2NO 230v LED |
| 501021 | Belt Switch SS 35mm Roller Short M20 2NC 2NO EX 3m Pre-Wired |
