HLM-CBA
Mini Belt Alignment Switch – Die-Cast, 22mm Diameter with 70mm Length Roller
IDEM’s die-cast, mini conveyor belt alignment switches are designed for use on the running edge of conveyor belts. They are suitable for both indoor and outdoor use and are sealed to IP67. Unlike the larger belt alignment switches, the mini duty versions only provide a stop signal.
- Body Material
- Die-Cast Metal Painted Red and Black
- Roller Material
- Plastic or 316 Stainless Steel
- Ingress Protection
- IP67
- Contacts
- 1NC+1NO (Snap Acting) / 3NC+1NO / 2NC+2NO / 4NC
- Connectivity
- 1 x M20 or ½” NPT Conduit
Informații privind UL508
Type 1 Enclosures. Use 16 - 12AWG copper conductors, rated 75ºC minimum. Intended for same polarity use. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 240V. 10A. carry only. Wire range: 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) Earth bonding terminal inside enclosure if required.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 174401 | HLM-CBA with Plastic Roller M20 2NC 2NO |
| 174402 | HLM-CBA with Plastic Roller ½ NPT 2NC 2NO |
| 174403 | HLM-CBA with Plastic Roller QC M23 2NC 2NO |
| 174404 | HLM-CBA with Plastic Roller M20 3NC 1NO |
| 174405 | HLM-CBA with Plastic Roller ½ NPT 3NC 1NO |
| 174406 | HLM-CBA with Plastic Roller QC M23 3NC 1NO |
| 174407 | HLM-CBA with Plastic Roller M20 4NC |
| 174408 | HLM-CBA with Plastic Roller ½ NPT 4NC |
| 174409 | HLM-CBA with Plastic Roller QC M23 4NC |
| 174410 | HLM-CBA with Plastic Roller M20 1NC 1NO SNAP |
| 174411 | HLM-CBA with Plastic Roller ½ NPT 1NC 1NO SNAP |
| 174412 | HLM-CBA with Plastic Roller QC M23 1NC 1NO SNAP |
| 174451 | HLM-CBA with SS Roller M20 2NC 2NO |
| 174452 | HLM-CBA with SS Roller ½ NPT 2NC 2NO |
| 174453 | HLM-CBA with SS Roller QC M23 2NC 2NO |
| 174454 | HLM-CBA with SS Roller M20 3NC 1NO |
| 174455 | HLM-CBA with SS Roller ½ NPT 3NC 1NO |
| 174456 | HLM-CBA with SS Roller QC M23 3NC 1NO |
| 174457 | HLM-CBA with SS Roller M20 4NC |
| 174458 | HLM-CBA with SS Roller ½ NPT 4NC |
| 174459 | HLM-CBA with SS Roller QC M23 4NC |
| 174460 | HLM-CBA with SS Roller M20 1NC 1NO SNAP |
| 174461 | HLM-CBA with SS Roller ½ NPT 1NC 1NO SNAP |
| 174462 | HLM-CBA with SS Roller QC M23 1NC 1NO SNAP |
Produse din aceeași categorie
Mini Belt Alignment Switch – Stainless Steel, 22mm Diameter with 70mm Length Roller

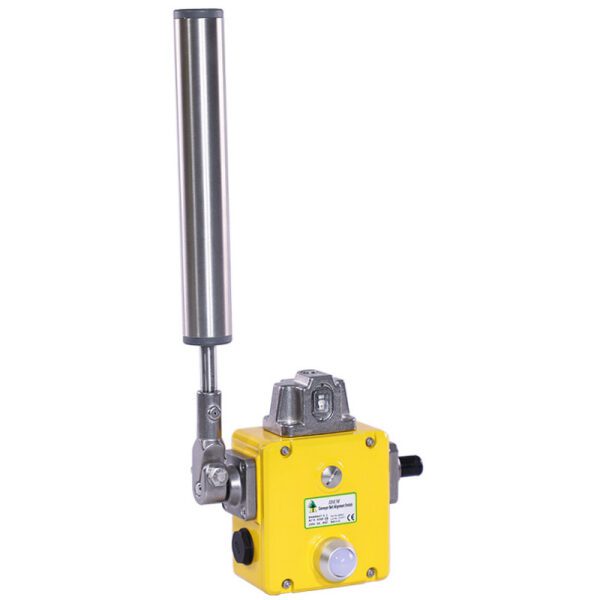

Belt Alignment Switch (Die-Cast, Heavy Duty, 35mm Diameter with 230mm Length Roller)
