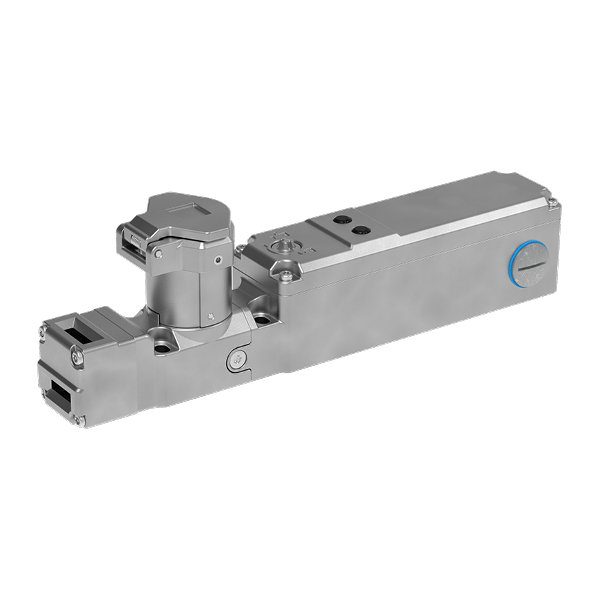

SS-TS-SR
Solenoid Key Release
The SS-TS-SR safety switch with trapped key operates by using a solenoid-controlled release key, which is held captive until an unlock signal is initiated. Removing the key releases the actuator and allows access to the hazardous area. The released key (often referred to as the personnel key) is taken inside the hazardous area to reduce the likelihood of an inadvertent start-up.
Note
Key and Actuator sold separately
Optional pushbutton (PB) and illuminated emergency stop (ES) available
LED2 Green is an auxiliary indication circuit for optional user use
Please note that for trapped key access locks, either a key or an actuator must be ordered with the product. This is required for manufacturing, as the internal mechanism must be configured to trap one of these parts. For assistance, please contact the IDEM Sales team.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Dust Cover Type | Manual Release | Eliberare din spate |
|---|---|---|---|---|
| 815001 | SS-TS-SR 2NC 2NO Manual Release M20 | Standard | YES | NO |
| 815001-LT | SS-TS-SR-LT 2NC 2NO Manual Release M20 (with Lockout Dust Cover) | Lockout | YES | NO |
| 815001-CK | SS-TS-SR-CK 2NC 2NO Manual Release M20 (with Custom Label Dust Cover) | Custom Label | YES | NO |
| 815002 | SS-TS-SR 3NC 1NO Manual Release M20 | Standard | YES | NO |
| 815002-LT | SS-TS-SR-LT 3NC 1NO Manual Release M20 (with Lockout Dust Cover) | Lockout | YES | NO |
| 815002-CK | SS-TS-SR-CK 3NC 1NO Manual Release M20 (with Custom Label Dust Cover) | Custom Label | YES | NO |
| 815301 | SS-TS-SR 2NC 2NO No Manual Release M20 | Standard | NO | NO |
| 815301-LT | SS-TS-SR-LT 2NC 2NO No Manual Release M20 (with Lockout Dust Cover) | Lockout | NO | NO |
| 815301-CK | SS-TS-SR-CK 2NC 2NO No Manual Release M20 (with Custom Label Dust Cover) | Custom Label | NO | NO |
| 815302 | SS-TS-SR 3NC 1NO No Manual Release M20 | Standard | NO | NO |
| 815302-LT | SS-TS-SR-LT 3NC 1NO No Manual Release M20 (with Lockout Dust Cover) | Lockout | NO | NO |
| 815302-CK | SS-TS-SR-CK 3NC 1NO No Manual Release M20 (with Custom Label Dust Cover) | Custom Label | NO | NO |
