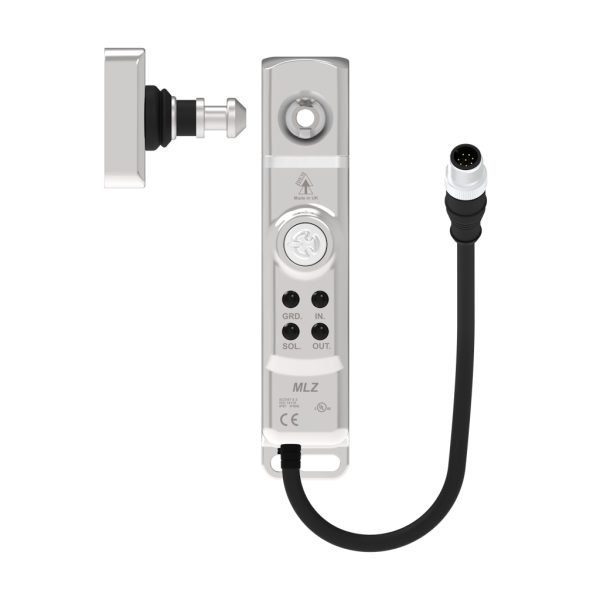

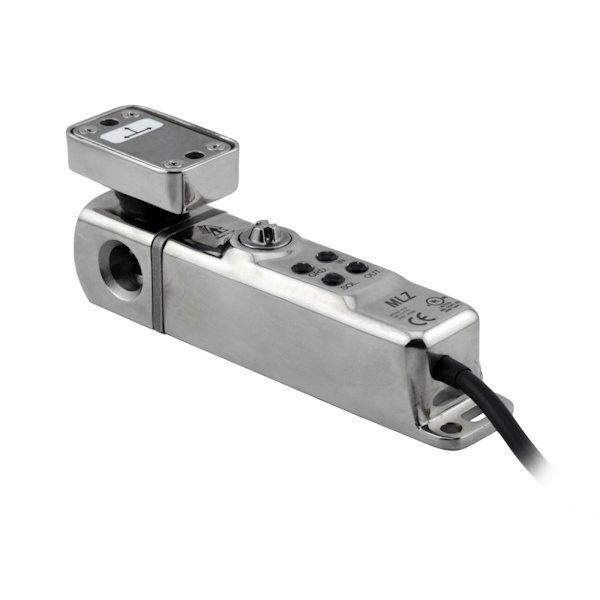

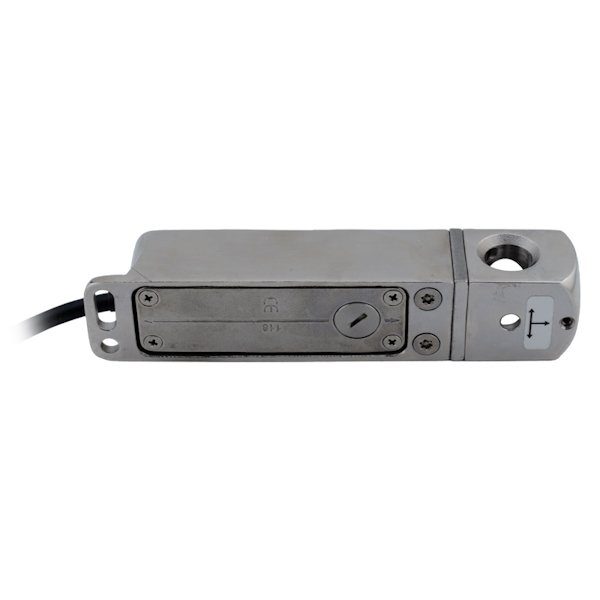

MLZ Compact Guard Locking Safety Switch with RFID, 316 Stainless Steel Housing and IP69K
The MLZ is a compact, 30 mm-wide guard locking safety switch housed in mirror-polished 316 stainless steel and tested to IP69K for demanding washdown environments. Designed for versatile installation, it features three RFID-coded actuator entry points and OSSD outputs, allowing multiple devices to be connected in series.
Its super-compact design makes it ideal for use on even the narrowest machine guard rails, with no mounting plate required. This helps simplify installation, reduce set-up time, and make ongoing maintenance easier.
- Compact Design
- 30mm x 30mm x 133mm
Information with regard to UL Standards
Type 1 enclosure. Use Class 2 power supply or equivalent. Maximum temperature 40°C. Maximum output 24V.dc 100mA.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Part Number | Description | Safety | Aux. | Connectivity |
| Part Number | Description | Safety | Aux. | Connectivity |
| 470001 | MLZ 24Vdc RFID Locking Switch 5m Cable | 2 OSSD | 1 | 5M Pre-Wired |
| 470002 | MLZ 24Vdc RFID Locking Switch 10m Cable | 2 OSSD | 1 | 10M Pre-Wired |
| 470004 | MLZ 24Vdc RFID Locking Switch 15m Cable | 2 OSSD | 1 | 15M Pre-Wired |
| 470005 | MLZ 24Vdc RFID Locking Switch 20m Cable | 2 OSSD | 1 | 20M Pre-Wired |
| 470003 | MLZ 24Vdc RFID Locking Switch QC-M12 8-PIN | 2 OSSD | 1 | 8-PIN QC-M12 |
| 470103 | MLZ 24Vdc RFID Locking Switch QC-M12 5-PIN | 2 OSSD | 0 | 5-PIN QC-M12 |
