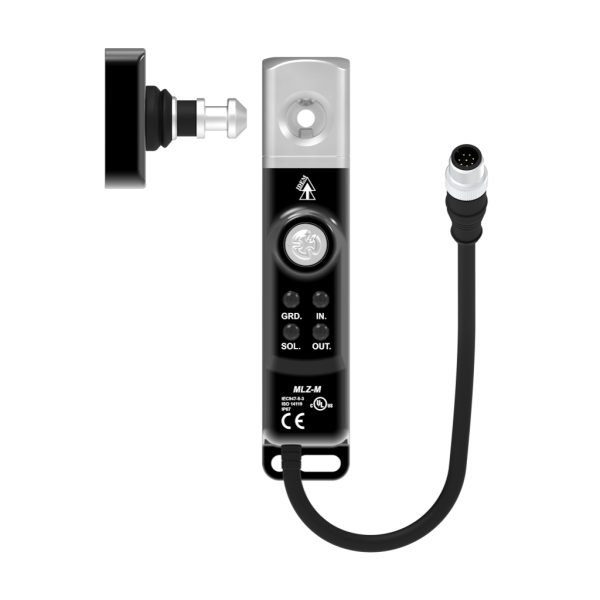

MLZ-M Compact Guard Locking Safety Switch with RFID in a Heavy-Duty Die-Cast Housing
The MLZ-M ultra-compact RFID guard locking safety switch features a robust mirror-polished die-cast metal housing, ensuring durability and resistance to demanding environments. Measuring just 30mm in width, the MLZ-M is perfectly suited for installation on narrow machine guard rails, eliminating the need for additional mounting plates and simplifying both setup and maintenance.
With three RFID-coded entry points, the device offers flexibility in actuator approach, adapting easily to diverse guard configurations. It delivers a high holding force of 4000N, ensuring that guards remain securely locked even under substantial stress, which enhances safety integrity.
Information with regard to UL Standards
Type 1 enclosure. Use Class 2 power supply or equivalent. Maximum temperature 40°C. Maximum output 24V.dc 100mA.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Safety | Aux. | Conectare |
|---|---|---|---|---|
| 473001 | MLZ-M 24Vdc, 5m | 2 OSSD | 1 PNP | 5m Pre-Wired Cable |
| 473002 | MLZ-M 24Vdc, 10m | 2 OSSD | 1 PNP | 10m Pre-Wired Cable |
| 473004 | MLZ-M 24Vdc, 15m Pre-Wired | 2 OSSD | 1 PNP | 15m Pre-Wired Cable |
| 473003 | MLZ-M 24Vdc, QC-M12 8-Way | 2 OSSD | 1 PNP | 250mm Pigtail, QC-M12 8-Way |
| 473103 | MLZ-M, 24Vdc, QC-M12 5-way | 2 OSSD | 0 | 250mm Pigtail, QC-M12 5-Way |
