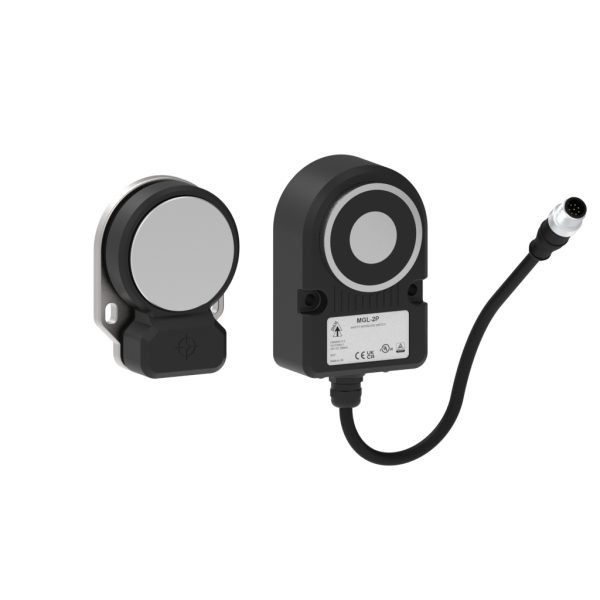

MGL-2P QC-M12
Electromagnetic RFID Switch 1000N
The MGL-2P is a magnetic guard locking safety switch with coded RFID technology, designed to provide high functional safety and reliable electromagnetic guard interlocking in industrial applications. Housed in high-specification polyester and equipped with a QC-M12 connector for quick installation, it is ideally suited to machine guarding systems requiring guard monitoring with a high level of tamper resistance.
Informații privind UL508
Type 1 Enclosures. Maximum temperature 40ºC. Maximum output 24V.dc 200mA. Powered by Class 2 or equivalent. WARNING: Hot surface – risk of burn if used at ambient temperature of +40C degrees. (Affix a warning label to the switch).
Notă importantă
As a power-to-lock device, the MGL range requires careful consideration in the event of power loss, particularly on machines where hazardous motion or risk remains present during run-down before the danger is fully removed.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere | RFID Coding | Residual Hold |
|---|---|---|---|
| 461006 | MGL-2P-M QC-M12 | Master Coded (can be re-taught) | Yes |
| 461006-ZR | MGL-2P-M QC-M12 Zero Residual | Master Coded (can be re-taught) | No |
| 461003 | MGL-2P-U QC-M12 | Uniquely Coded (cannot be re-taught) | Yes |
| 461003-ZR | MGL-2P-U QC-M12 Zero Residual | Uniquely Coded (cannot be re-taught) | No |
