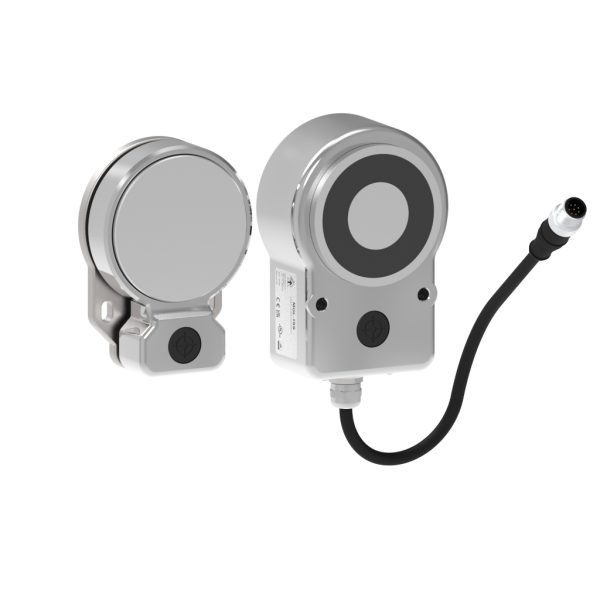

MGL-1SS QC-M12
Electromagnetic RFID Switch 1100N
The MGL-1SS is a magnetic guard locking safety switch with coded RFID technology, designed to deliver high functional safety and reliable electromagnetic guard interlocking in industrial applications. Housed in a mirror-polished 316 stainless steel enclosure and equipped with a QC-M12 connector for quick installation, it is ideally suited for food processing, packaging, and pharmaceutical applications. Its IP69K rating allows the switch to withstand high-pressure hosing with detergent at high temperatures.
Informații privind UL508
Type 1 Enclosures. Maximum temperature 40ºC. Maximum output 24V.dc 200mA. Powered by Class 2 or equivalent. WARNING: Hot surface – risk of burn if used at ambient temperature of +40C degrees. (Affix a warning label to the switch).
Notă importantă
As a power-to-lock device, the MGL range requires careful consideration in the event of power loss, particularly on machines where hazardous motion or risk remains present during run-down before the danger is fully removed.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere | RFID Coding | Residual Hold |
|---|---|---|---|
| 462006 | MGL-1SS-M QC-M12 | Master Coded (can be re-taught) | Yes |
| 462006-ZR | MGL-1SS-M QC-M12 Zero Residual Magnetism | Master Coded (can be re-taught) | No |
| 462003 | MGL-1SS-U QC-M12 | Uniquely Coded (cannot be re-taught) | Yes |
| 462003-ZR | MGL-1SS-U QC-M12 Zero Residual Magnetism | Uniquely Coded (cannot be re-taught) | No |
