LSPS

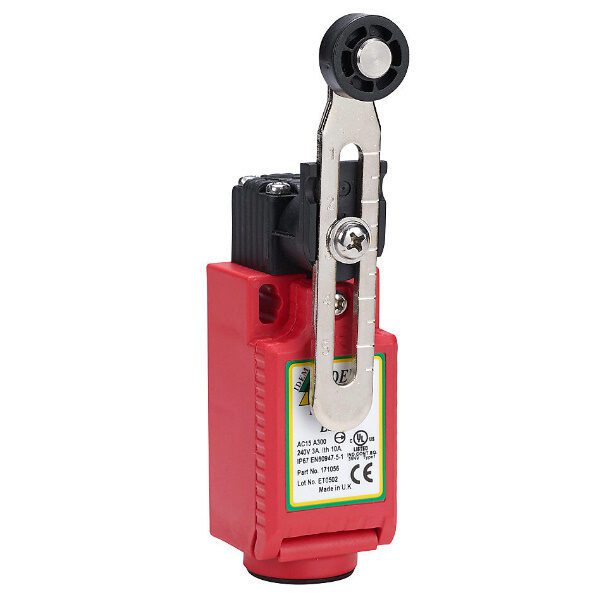

Safety Limit Switches in Plastic with Adjustable Roller Lever
LSPS Limit switches are designed to be mounted for position sensing of moving applications e.g. guard doors, conveyors, machine beds, elevators etc. They are available with linear plungers, rotary levers or roller plungers and either slow or snap action contacts. All contact blocks are positively operated to satisfy IEC 60947-5-1.
- Material
- High Specification Polyester
- Actuation
- Adjustable Roller Lever
- Ingress Protection
- IP67
Information with regard to UL Standards
Type 1 Enclosures. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Braking PF >0.38 (100,000 cycles). 240V. 10A. carry only. Use 16 - 12AWG copper conductors, rated 90ºC minimum. Intended for same polarity use and one polymeric conduit connection.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 171055 | LSPS Adjustable Roller Lever M20 2NC 1NO |
| 171056 | LSPS Adjustable Roller Lever ½NPT 2NC 1NO |
| 171057 | LSPS Adjustable Roller Lever QC M12 2NC 1NO |
| 171058 | LSPS Adjustable Roller Lever M20 3NC |
| 171059 | LSPS Adjustable Roller Lever ½NPT 3NC |
| 171060 | LSPS Adjustable Roller Lever QC M12 3NC |
| 171061 | LSPS Adjustable Roller Lever M20 1NC 1NO Snap |
| 171062 | LSPS Adjustable Roller Lever ½NPT 1NC 1NO Snap |
| 171063 | LSPS Adjustable Roller Lever QC M12 1NC 1NO Snap |
