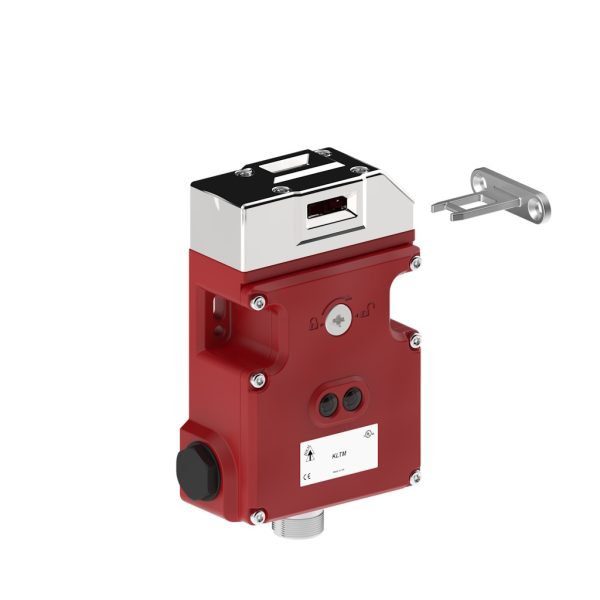

KLTM QC-M23 Guard Locking Safety Switch with M23 Quick Connect
The KLTM guard locking safety interlock features a industry standard metal body and a holding force of up to 3000N to keep small to large guard doors closed until hazards have been removed. The integrated M23 connector reduces installation time, minimizes wiring errors, and makes maintenance or replacement faster and more reliable.
Information with regard to UL Standards
Maximum temperature +40 °C
Terminal Torque e 6 lb ins. (0.7Nm)
Use 16-28AWG stranded copper conductors (rated 90°C)
Intended for same polarity use. A300 Pilot Duty. 240V. 3A
PF 0.38 or greater, tested for 6,000 cycles endurance
Use one polymeric conduit connection
Not suitable for connection to rigid metal conduit
(Earth bonding terminal inside enclosure if required)
Note
Internal selector switch to be used as either power feed to LED 2 or as a voltage free auxiliary circuit to indicate the lock status.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Tensiune | Connection Type | Actuator |
|---|---|---|---|---|
| 450003 | KLTM (Mechanical Only) QC M23 24v | 24V | QC M23 | No Actuator |
| 450003A | KLTM (Mechanical Only) QC M23 24v – Std Actuator | 24V | QC M23 | A – Standard Actuator |
| 450003F | KLTM (Mechanical Only) QC M23 24v – Flat Actuator | 24V | QC M23 | F – Flat Actuator |
| 450003HF | KLTM (Mechanical Only) QC M23 24v – HF Actuator | 24V | QC M23 | HF – Metal Flexible Actuator |
| 450003HFH | KLTM (Mechanical Only) QC M23 24v – HFH Actuator | 24V | QC M23 | HFH – Stainless Steel Flexible Actuator |
| 450006 | KLTM (Mechanical Only) QC M23 110v | 110V | QC M23 | No Actuator |
| 450006A | KLTM (Mechanical Only) QC M23 110v – Std Actuator | 110V | QC M23 | A – Standard Actuator |
| 450006F | KLTM (Mechanical Only) QC M23 110v – Flat Actuator | 110V | QC M23 | F – Flat Actuator |
| 450006HF | KLTM (Mechanical Only) QC M23 110v – HF Actuator | 110V | QC M23 | HF – Metal Flexible Actuator |
| 450006HFH | KLTM (Mechanical Only) QC M23 110v – HFH Actuator | 110V | QC M23 | HFH – Stainless Steel Flexible Actuator |
| 450009 | KLTM (Mechanical Only) QC M23 230v | 230V | QC M23 | No Actuator |
| 450009A | KLTM (Mechanical Only) QC M23 230v – Std Actuator | 230V | QC M23 | A – Standard Actuator |
| 450009F | KLTM (Mechanical Only) QC M23 230v – Flat Actuator | 230V | QC M23 | F – Flat Actuator |
| 450009HF | KLTM (Mechanical Only) QC M23 230v – HF Actuator | 230V | QC M23 | HF – Metal Flexible Actuator |
| 450009HFH | KLTM (Mechanical Only) QC M23 230v – HFH Actuator | 230V | QC M23 | HFH – Stainless Steel Flexible Actuator |
