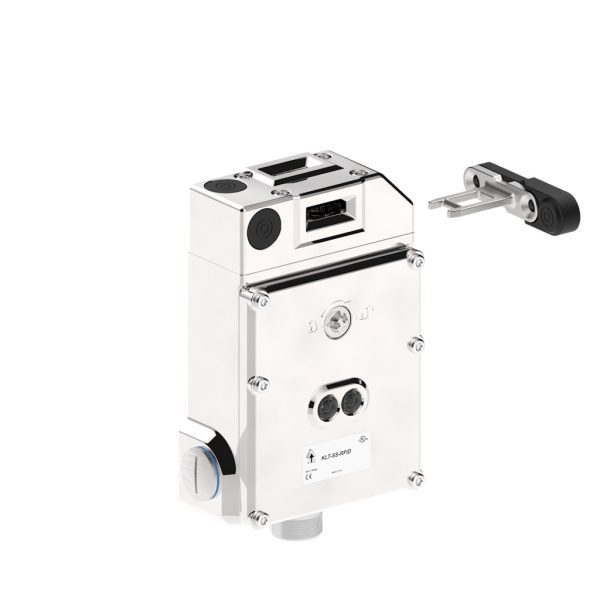

KLT-SS-RFID Guard Locking Safety Switch with RFID and M23 Quick Connect
The KLT-SS-RFID is a heavy-duty Type 4 guard-locking safety switch with integrated RFID technology. Its robust design provides a holding force of up to 3000 N, helping keep medium to large guard doors securely closed until hazards have been removed.
The integrated M23 connector reduces installation time, helps prevent wiring errors, and makes maintenance or replacement faster, simpler, and more reliable.
Information with regard to UL standards
Type 1 enclosure. Maximum temperature 40°C. Use 16-28AWG copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. Safety Circuits (11-31 & 21-41) A300 Pilot Duty. 240V. 3A. (PF 0.38 or greater tested for 6,000 cycles endurance). Use one polymeric conduit connection. Not suitable for connection to rigid metal conduit. (Earth bonding terminal inside enclosure if required – use 16-12AWG conductors)
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 451203 | KLT-SS-RFID (Uniquely Coded) QC M23 24v (Front/End Lower) |
| 451303 | KLT-SS-RFID (Uniquely Coded) QC M23 24v (Rear/Front Upper) |
