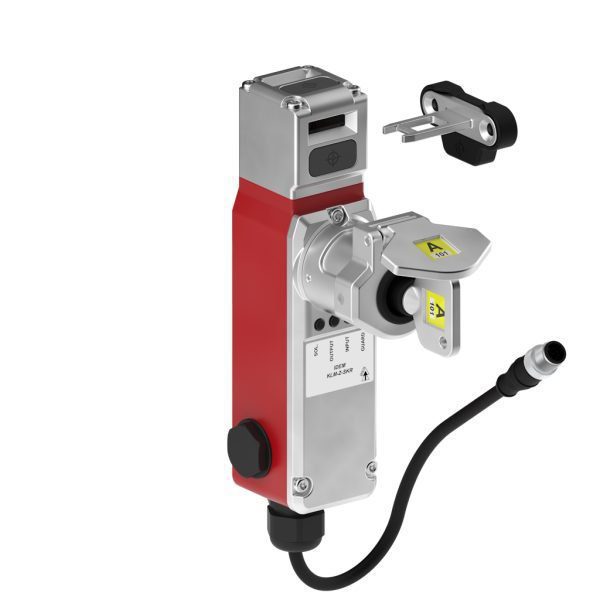

KLM-Z-SKR QC-M12 Guard Locking Safety Switch with RFID, OSSD, Personnel Key and M12 Quick Connect
The KLM-Z-SKR QC-M12 guard locking RFID safety interlock with OSSD outputs, features a slimline metal body profile for 50mm frames to enable easy retrofitting to new or existing guards. The robust design allows for a holding force of up to 3000N to keep medium to large guard doors closed until the hazard/s have been removed. The coded release key (Personnel Key) can be taken inside the hazardous area to allow the user to operate safely and without fear of an inadvertent start-up occurring.
Information with regard to UL Standards
Type 1 enclosure. Use Class 2 power supply or equivalent. Maximum temperature 40°C. Use 16-28AWG copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. Safety Circuits (11-12 & 21-22) 24V.dc 200mA max. Use one polymeric conduit connection. Not suitable for connection to rigid metal conduit. (Earth bonding terminal inside metal enclosures (if required). Use 16-12AWG conductors)
Notă importantă
key sold separately
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Tensiune | Connection Type | Auxiliary Override | Actuator |
|---|---|---|---|---|---|
| 454306AZ | KLM-Z-SKR QC-M12 (no manual release) – Std Actuator | 24V | QC-M12 | No Release | AZ – Standard RFID Actuator |
| 454006AZ | KLM-Z-SKR QC-M12 (side manual release) – Std Actuator | 24V | QC-M12 | Side Only | AZ – Standard RFID Actuator |
