KLM-Z-4ST
Guard Locking RFID Safety Switch with Control Functionality
The KLM-Z-4ST is a Type 4 guard locking safety switch with integrated RFID, OSSD outputs, and additional machine control functionality built directly into the switch lid.

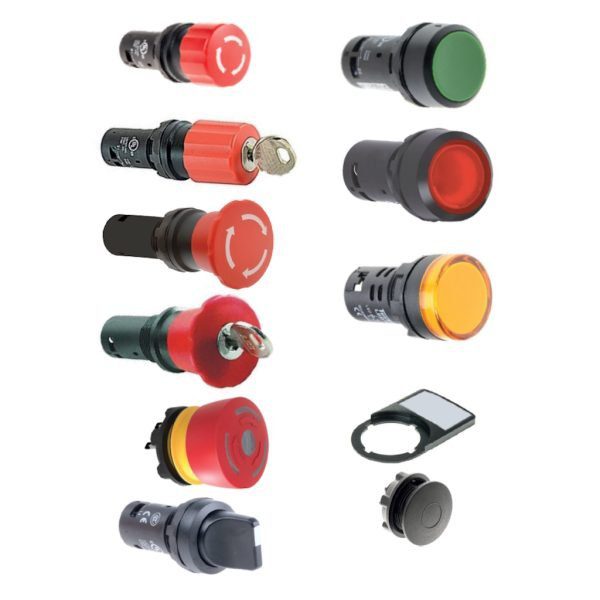

Designed for applications where both guard locking and local machine control are required, the KLM-Z-4ST can incorporate up to four standard 22mm pushbuttons. This helps reduce the number of separate devices required at the gate, simplifies wiring, and provides a more convenient, compact solution for operators.
Information with regard to UL Standards
Type 1 enclosure. Use Class 2 power supply or equivalent. Maximum temperature 40°C. Use 16-28AWG copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. Safety Circuits (11-12 & 21-22) 24V.dc 200mA max. Use one polymeric conduit connection. Not suitable for connection to rigid metal conduit. (Earth bonding terminal inside metal enclosures (if required). Use 16-12AWG conductors)
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Tensiune | Connection Type | Auxiliary Override | Actuator |
|---|---|---|---|---|---|
| 457001AZ | KLM-Z-4ST M20 (manual release lid and side) – std actuator | 24V | M20 | Lid and Side | AZ – Standard RFID Actuator |
| 457001HFZ | KLM-Z-4ST M20 (manual release lid and side) – heavy duty actuator | 24V | M20 | Lid and Side | HFZ – Stainless Steel Flexible RFID Actuator |
| 457301AZ | KLM-Z-4ST M20 (no release) – std actuator | 24V | M20 | No Release | AZ – Standard RFID Actuator |
| 457301HFZ | KLM-Z-4ST M20 (no release) – heavy duty actuator | 24V | M20 | No Release | HFZ – Stainless Steel Flexible RFID Actuator |
| 457401AZ | KLM-Z-4ST M20 (lid only release) – std actuator | 24V | M20 | Lid Only | AZ – Standard RFID Actuator |
| 457401HFZ | KLM-Z-4ST M20 (lid only release) – heavy duty actuator | 24V | M20 | Lid Only | HFZ – Stainless Steel Flexible RFID Actuator |
| 457002AZ | KLM-Z-4ST ½”NPT (manual release lid and side) – std actuator | 24V | ½”NPT | Lid and Side | AZ – Standard RFID Actuator |
| 457002HFZ | KLM-Z-4ST ½”NPT (manual release lid and side) – heavy duty actuator | 24V | ½”NPT | Lid and Side | HFZ – Stainless Steel Flexible RFID Actuator |
| 457402AZ | KLM-Z-4ST ½”NPT (lid only release) – std actuator | 24V | ½”NPT | Lid Only | AZ – Standard RFID Actuator |
| 457402HFZ | KLM-Z-4ST ½”NPT (lid only release) – heavy duty actuator | 24V | ½”NPT | Lid Only | HFZ – Stainless Steel Flexible RFID Actuator |
Produse din aceeași categorie
Guard Locking RFID Safety Switch with Control Functionality, Trapped Key and Rear Release

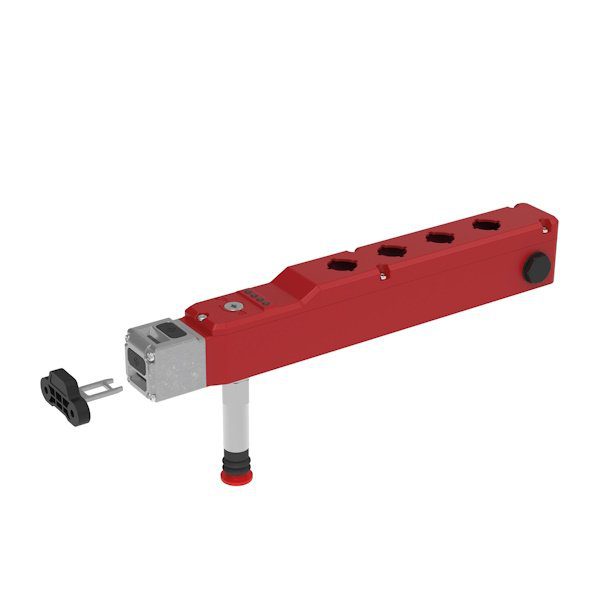

Guard Locking RFID Safety Switch with Control Functionality and Rear Release

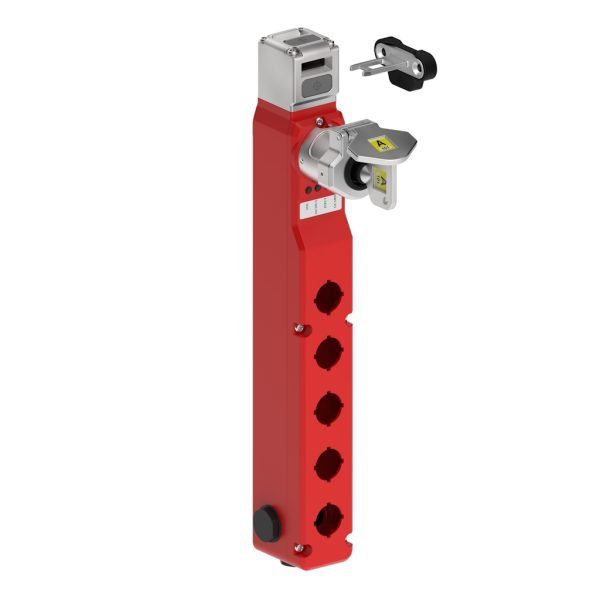

Guard Locking RFID Safety Switch with Control Functionality, Trapped Key
