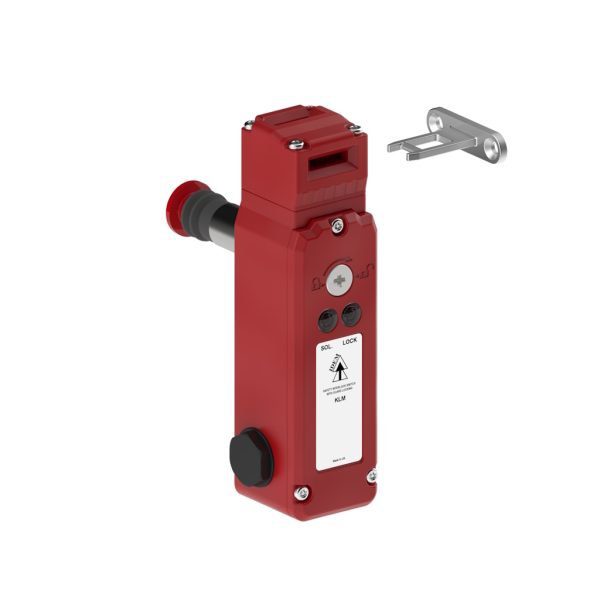

KLM-RR Guard Locking Safety Switch with Rear Release
The KLM-RR (SAMLOCK) guard locking safety interlock features a slimline metal body and a holding force of up to 3000N to keep small to large guard doors closed until hazards have been removed. A non-latching manual escape release is provided to enable quick release of the switch lock in case of emergency.
Fabricat din metal turnat sub presiune
Forță de reținere până la F1Max 3000 N (300 kg)
Funcționează ca dispozitiv cu deblocare la alimentare
Cap rotativ, până la 8 poziții de intrare
Protecție la pătrundere până la IP67
Conectare prin 3 x M20 sau ½” NPT
Information with regard to UL Standards
Maximum temperature +40 °C
Terminal Torque e 6 lb ins. (0.7Nm)
Use 16-28AWG stranded copper conductors (rated 90°C)
Intended for same polarity use. A300 Pilot Duty. 240V. 3A
PF 0.38 or greater, tested for 6,000 cycles endurance
Use one polymeric conduit connection
Not suitable for connection to rigid metal conduit
(Earth bonding terminal inside enclosure if required)
Note
Internal selector switch to be used as either power feed to LED 2 or as a voltage free auxiliary circuit to indicate the lock status.
KLM-RR Rear Escape Release
Where the Risk Assessment for the application permits, a non latching manual escape release version (KLM-RR) enables quick release of the switch lock in case of emergency. The switch can be mounted such that access to the release button is available from inside the active guard area. Pressing and holding the release button will release the lock mechanism and open the lock monitoring contacts, whilst the guard can be pushed open. Measures should be taken to reduce the risk of improper activation.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Tensiune | Connection Type | Auxiliary Override | Actuator |
|---|---|---|---|---|---|
| 212001 | KLM-RR M20 24V (std release) | 24V | M20 | Lid and Side | No Actuator |
| 212001A | KLM-RR M20 24V (std release) – std actuator | 24V | M20 | Lid and Side | A – Standard Actuator |
| 212001F | KLM-RR M20 24V (std release) – flat actuator | 24V | M20 | Lid and Side | F – Flat Actuator |
| 212001HF | KLM-RR M20 24V (std release) – HF actuator | 24V | M20 | Lid and Side | HF – Metal Flexible Actuator |
| 212001HFH | KLM-RR M20 24V (std release) – HFH actuator | 24V | M20 | Lid and Side | HFH – Stainless Steel Flexible Actuator |
| 212301 | KLM-RR M20 24V (no release) | 24V | M20 | No Release | No Actuator |
| 212301A | KLM-RR M20 24V (no release) – std actuator | 24V | M20 | No Release | A – Standard Actuator |
| 212301F | KLM-RR M20 24V (no release) – flat actuator | 24V | M20 | No Release | F – Flat Actuator |
| 212301HF | KLM-RR M20 24V (no release) – HF actuator | 24V | M20 | No Release | HF – Metal Flexible Actuator |
| 212301HFH | KLM-RR M20 24V (no release) – HFH actuator | 24V | M20 | No Release | HFH – Stainless Steel Flexible Actuator |
| 212401 | KLM-RR M20 24V (lid release) | 24V | M20 | Lid Only | No Actuator |
| 212401A | KLM-RR M20 24V (lid release) – std actuator | 24V | M20 | Lid Only | A – Standard Actuator |
| 212401F | KLM-RR M20 24V (lid release) – flat actuator | 24V | M20 | Lid Only | F – Flat Actuator |
| 212401HF | KLM-RR M20 24V (lid release) – HF actuator | 24V | M20 | Lid Only | HF – Metal Flexible Actuator |
| 212401HFH | KLM-RR M20 24V (lid release) – HFH actuator | 24V | M20 | Lid Only | HFH – Stainless Steel Flexible Actuator |
| 212002 | KLM-RR ½”NPT 24V (std release) | 24V | ½”NPT | Lid and Side | No Actuator |
| 212002A | KLM-RR ½”NPT 24V (std release) – std actuator | 24V | ½”NPT | Lid and Side | A – Standard Actuator |
| 212002F | KLM-RR ½”NPT 24V (std release) – flat actuator | 24V | ½”NPT | Lid and Side | F – Flat Actuator |
| 212002HF | KLM-RR ½”NPT 24V (std release) – HF actuator | 24V | ½”NPT | Lid and Side | HF – Metal Flexible Actuator |
| 212002HFH | KLM-RR ½”NPT 24V (std release) – HFH actuator | 24V | ½”NPT | Lid and Side | HFH – Stainless Steel Flexible Actuator |
| 212302 | KLM-RR ½”NPT 24V (no release) | 24V | ½”NPT | No Release | No Actuator |
| 212302A | KLM-RR ½”NPT 24V (no release) – std actuator | 24V | ½”NPT | No Release | A – Standard Actuator |
| 212302F | KLM-RR ½”NPT 24V (no release) – flat actuator | 24V | ½”NPT | No Release | F – Flat Actuator |
| 212302HF | KLM-RR ½”NPT 24V (no release) – HF actuator | 24V | ½”NPT | No Release | HF – Metal Flexible Actuator |
| 212302HFH | KLM-RR ½”NPT 24V (no release) – HFH actuator | 24V | ½”NPT | No Release | HFH – Stainless Steel Flexible Actuator |
| 212402 | KLM-RR ½”NPT 24V (lid release) | 24V | ½”NPT | Lid Only | No Actuator |
| 212402A | KLM-RR ½”NPT 24V (lid release) – std actuator | 24V | ½”NPT | Lid Only | A – Standard Actuator |
| 212402F | KLM-RR ½”NPT 24V (lid release) – flat actuator | 24V | ½”NPT | Lid Only | F – Flat Actuator |
| 212402HF | KLM-RR ½”NPT 24V (lid release) – HF actuator | 24V | ½”NPT | Lid Only | HF – Metal Flexible Actuator |
| 212402HFH | KLM-RR ½”NPT 24V (lid release) – HFH actuator | 24V | ½”NPT | Lid Only | HFH – Stainless Steel Flexible Actuator |
| 212004 | KLM-RR M20 110V (std release) | 110V | M20 | Lid and Side | No Actuator |
| 212004A | KLM-RR M20 110V (std release) – std actuator | 110V | M20 | Lid and Side | A – Standard Actuator |
| 212004F | KLM-RR M20 110V (std release) – flat actuator | 110V | M20 | Lid and Side | F – Flat Actuator |
| 212004HF | KLM-RR M20 110V (std release) – HF actuator | 110V | M20 | Lid and Side | HF – Metal Flexible Actuator |
| 212004HFH | KLM-RR M20 110V (std release) – HFH actuator | 110V | M20 | Lid and Side | HFH – Stainless Steel Flexible Actuator |
| 212304 | KLM-RR M20 110V (no release) | 110V | M20 | No Release | No Actuator |
| 212304A | KLM-RR M20 110V (no release) – std actuator | 110V | M20 | No Release | A – Standard Actuator |
| 212304F | KLM-RR M20 110V (no release) – flat actuator | 110V | M20 | No Release | F – Flat Actuator |
| 212304HF | KLM-RR M20 110V (no release) – HF actuator | 110V | M20 | No Release | HF – Metal Flexible Actuator |
| 212304HFH | KLM-RR M20 110V (no release) – HFH actuator | 110V | M20 | No Release | HFH – Stainless Steel Flexible Actuator |
| 212404 | KLM-RR M20 110V (lid release) | 110V | M20 | Lid Only | No Actuator |
| 212404A | KLM-RR M20 110V (lid release) – std actuator | 110V | M20 | Lid Only | A – Standard Actuator |
| 212404F | KLM-RR M20 110V (lid release) – flat actuator | 110V | M20 | Lid Only | F – Flat Actuator |
| 212404HF | KLM-RR M20 110V (lid release) – HF actuator | 110V | M20 | Lid Only | HF – Metal Flexible Actuator |
| 212404HFH | KLM-RR M20 110V (lid release) – HFH actuator | 110V | M20 | Lid Only | HFH – Stainless Steel Flexible Actuator |
| 212005 | KLM-RR ½”NPT 110V (std release) | 110V | ½”NPT | Lid and Side | No Actuator |
| 212005A | KLM-RR ½”NPT 110V (std release) – std actuator | 110V | ½”NPT | Lid and Side | A – Standard Actuator |
| 212005F | KLM-RR ½”NPT 110V (std release) – flat actuator | 110V | ½”NPT | Lid and Side | F – Flat Actuator |
| 212005HF | KLM-RR ½”NPT 110V (std release) – HF actuator | 110V | ½”NPT | Lid and Side | HF – Metal Flexible Actuator |
| 212005HFH | KLM-RR ½”NPT 110V (std release) – HFH actuator | 110V | ½”NPT | Lid and Side | HFH – Stainless Steel Flexible Actuator |
| 212305 | KLM-RR ½”NPT 110V (no release) | 110V | ½”NPT | No Release | No Actuator |
| 212305A | KLM-RR ½”NPT 110V (no release) – std actuator | 110V | ½”NPT | No Release | A – Standard Actuator |
| 212305F | KLM-RR ½”NPT 110V (no release) – flat actuator | 110V | ½”NPT | No Release | F – Flat Actuator |
| 212305HF | KLM-RR ½”NPT 110V (no release) – HF actuator | 110V | ½”NPT | No Release | HF – Metal Flexible Actuator |
| 212305HFH | KLM-RR ½”NPT 110V (no release) – HFH actuator | 110V | ½”NPT | No Release | HFH – Stainless Steel Flexible Actuator |
| 212405 | KLM-RR ½”NPT 110V (lid release) | 110V | ½”NPT | Lid Only | No Actuator |
| 212405A | KLM-RR ½”NPT 110V (lid release) – std actuator | 110V | ½”NPT | Lid Only | A – Standard Actuator |
| 212405F | KLM-RR ½”NPT 110V (lid release) – flat actuator | 110V | ½”NPT | Lid Only | F – Flat Actuator |
| 212405HF | KLM-RR ½”NPT 110V (lid release) – HF actuator | 110V | ½”NPT | Lid Only | HF – Metal Flexible Actuator |
| 212405HFH | KLM-RR ½”NPT 110V (lid release) – HFH actuator | 110V | ½”NPT | Lid Only | HFH – Stainless Steel Flexible Actuator |
| 212007 | KLM-RR M20 230V (std release) | 230V | M20 | Lid and Side | No Actuator |
| 212007A | KLM-RR M20 230V (std release) – std actuator | 230V | M20 | Lid and Side | A – Standard Actuator |
| 212007F | KLM-RR M20 230V (std release) – flat actuator | 230V | M20 | Lid and Side | F – Flat Actuator |
| 212007HF | KLM-RR M20 230V (std release) – HF actuator | 230V | M20 | Lid and Side | HF – Metal Flexible Actuator |
| 212007HFH | KLM-RR M20 230V (std release) – HFH actuator | 230V | M20 | Lid and Side | HFH – Stainless Steel Flexible Actuator |
| 212307 | KLM-RR M20 230V (no release) | 230V | M20 | No Release | No Actuator |
| 212307A | KLM-RR M20 230V (no release) – std actuator | 230V | M20 | No Release | A – Standard Actuator |
| 212307F | KLM-RR M20 230V (no release) – flat actuator | 230V | M20 | No Release | F – Flat Actuator |
| 212307HF | KLM-RR M20 230V (no release) – HF actuator | 230V | M20 | No Release | HF – Metal Flexible Actuator |
| 212307HFH | KLM-RR M20 230V (no release) – HFH actuator | 230V | M20 | No Release | HFH – Stainless Steel Flexible Actuator |
| 212407 | KLM-RR M20 230V (lid release) | 230V | M20 | Lid Only | No Actuator |
| 212407A | KLM-RR M20 230V (lid release) – std actuator | 230V | M20 | Lid Only | A – Standard Actuator |
| 212407F | KLM-RR M20 230V (lid release) – flat actuator | 230V | M20 | Lid Only | F – Flat Actuator |
| 212407HF | KLM-RR M20 230V (lid release) – HF actuator | 230V | M20 | Lid Only | HF – Metal Flexible Actuator |
| 212407HFH | KLM-RR M20 230V (lid release) – HFH actuator | 230V | M20 | Lid Only | HFH – Stainless Steel Flexible Actuator |
| 212008 | KLM-RR ½”NPT 230V (std release) | 230V | ½”NPT | Lid and Side | No Actuator |
| 212008A | KLM-RR ½”NPT 230V (std release) – std actuator | 230V | ½”NPT | Lid and Side | A – Standard Actuator |
| 212008F | KLM-RR ½”NPT 230V (std release) – flat actuator | 230V | ½”NPT | Lid and Side | F – Flat Actuator |
| 212008HF | KLM-RR ½”NPT 230V (std release) – HF actuator | 230V | ½”NPT | Lid and Side | HF – Metal Flexible Actuator |
| 212008HFH | KLM-RR ½”NPT 230V (std release) – HFH actuator | 230V | ½”NPT | Lid and Side | HFH – Stainless Steel Flexible Actuator |
| 212308 | KLM-RR ½”NPT 230V (no release) | 230V | ½”NPT | No Release | No Actuator |
| 212308A | KLM-RR ½”NPT 230V (no release) – std actuator | 230V | ½”NPT | No Release | A – Standard Actuator |
| 212308F | KLM-RR ½”NPT 230V (no release) – flat actuator | 230V | ½”NPT | No Release | F – Flat Actuator |
| 212308HF | KLM-RR ½”NPT 230V (no release) – HF actuator | 230V | ½”NPT | No Release | HF – Metal Flexible Actuator |
| 212308HFH | KLM-RR ½”NPT 230V (no release) – HFH actuator | 230V | ½”NPT | No Release | HFH – Stainless Steel Flexible Actuator |
| 212408 | KLM-RR ½”NPT 230V (lid release) | 230V | ½”NPT | Lid Only | No Actuator |
| 212408A | KLM-RR ½”NPT 230V (lid release) – std actuator | 230V | ½”NPT | Lid Only | A – Standard Actuator |
| 212408F | KLM-RR ½”NPT 230V (lid release) – flat actuator | 230V | ½”NPT | Lid Only | F – Flat Actuator |
| 212408HF | KLM-RR ½”NPT 230V (lid release) – HF actuator | 230V | ½”NPT | Lid Only | HF – Metal Flexible Actuator |
| 212408HFH | KLM-RR ½”NPT 230V (lid release) – HFH actuator | 230V | ½”NPT | Lid Only | HFH – Stainless Steel Flexible Actuator |
