KLM-P2L QC-M23 Guard Locking Safety Switch with Power to Lock

KLM-P2L QC-M23 Guard Locking Safety Switch with Power to Lock

The KLM-P2L guard-locking safety interlock features a slimline die-cast metal body and a holding force of up to 3000N, helping to keep medium to large guard doors securely closed until hazards have been removed. The guard remains locked while 24Vdc is supplied to the solenoid, providing controlled access to hazardous areas.

Construcție din metal turnat sub presiune

Cap din oțel inoxidabil 316

Forță de reținere până la F1Max 3000 N (300 kg)

Funcționează ca dispozitiv cu blocare la alimentare

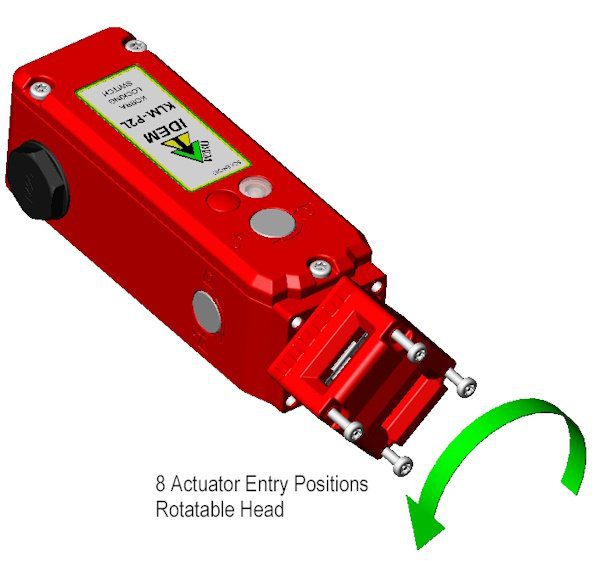

Cap rotativ, cu până la 8 poziții de intrare

Protecție la pătrundere până la IP67

Conectare prin conector rapid M23 cu 12 pini, tată

Information with regard to UL Standards

Type 1 enclosure. Maximum temperature 40°C. Use 16-28AWG stranded copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. A300 Pilot Duty. 240V. 3A. PF 0.38 or greater, tested for 6,000 cycles endurance Use one polymeric conduit connection. Not suitable for connection to rigid metal conduit.

Cere ofertă Pagina oficială ↗

Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.

Glisați lateral pentru a vedea tot tabelul

Cod produs	Descriere	Tensiune	Connection Type	Actuator
202023	KLM-P2L QC M23 24V	24V	QC M23	No Actuator
202023-SS	KLM-P2L QC M23 24V SS head	24V	QC M23	No Actuator
202023A	KLM-P2L QC M23 24V – std actuator	24V	QC M23	A – Standard Actuator
202023A-SS	KLM-P2L QC M23 24V SS head – std actuator	24V	QC M23	A – Standard Actuator
202023F	KLM-P2L QC M23 24V – flat actuator	24V	QC M23	F – Flat Actuator
202023F-SS	KLM-P2L QC M23 24V SS head – flat actuator	24V	QC M23	F – Flat Actuator
202023HF	KLM-P2L QC M23 24V – HF actuator	24V	QC M23	HF – Metal Flexible Actuator
202023HF-SS	KLM-P2L QC M23 24V SS head – HF actuator	24V	QC M23	HF – Metal Flexible Actuator
202023HFH	KLM-P2L QC M23 24V – HFH actuator	24V	QC M23	HFH – Stainless Steel Flexible Actuator
202023HFH-SS	KLM-P2L QC M23 24V SS head – HFH actuator	24V	QC M23	HFH – Stainless Steel Flexible Actuator
202026	KLM-P2L QC M23 110V	110V	QC M23	No Actuator
202026-SS	KLM-P2L QC M23 110V SS Head	110V	QC M23	No Actuator
202026A	KLM-P2L QC M23 110V – std actuator	110V	QC M23	A – Standard Actuator
202026A-SS	KLM-P2L QC M23 110V SS Head – std actuator	110V	QC M23	A – Standard Actuator
202026F	KLM-P2L QC M23 110V – flat actuator	110V	QC M23	F – Flat Actuator
202026F-SS	KLM-P2L QC M23 110V SS Head – flat actuator	110V	QC M23	F – Flat Actuator
202026HF	KLM-P2L QC M23 110V – HF actuator	110V	QC M23	HF – Metal Flexible Actuator
202026HF-SS	KLM-P2L QC M23 110V SS Head – HF actuator	110V	QC M23	HF – Metal Flexible Actuator
202026HFH	KLM-P2L QC M23 110V – HFH actuator	110V	QC M23	HFH – Stainless Steel Flexible Actuator
202026HFH-SS	KLM-P2L QC M23 110V SS Head – HFH actuator	110V	QC M23	HFH – Stainless Steel Flexible Actuator
202029	KLM-P2L QC M23 230V	230V	QC M23	No Actuator
202029-SS	KLM-P2L QC M23 230V SS Head	230V	QC M23	No Actuator
202029A	KLM-P2L QC M23 230V – std actuator	230V	QC M23	A – Standard Actuator
202029A-SS	KLM-P2L QC M23 230V SS Head – std actuator	230V	QC M23	A – Standard Actuator
202029F	KLM-P2L QC M23 230V – flat actuator	230V	QC M23	F – Flat Actuator
202029F-SS	KLM-P2L QC M23 230V SS Head – flat actuator	230V	QC M23	F – Flat Actuator
202029HF	KLM-P2L QC M23 230V – HF actuator	230V	QC M23	HF – Metal Flexible Actuator
202029HF-SS	KLM-P2L QC M23 230V SS Head – HF actuator	230V	QC M23	HF – Metal Flexible Actuator
202029HFH	KLM-P2L QC M23 230V – HFH actuator	230V	QC M23	HFH – Stainless Steel Flexible Actuator
202029HFH-SS	KLM-P2L QC M23 230V SS Head – HFH actuator	230V	QC M23	HFH – Stainless Steel Flexible Actuator
