KL3-SS QC-M23 Guard Locking Safety Switch with M23 Quick Connect

KL3-SS QC-M23 Guard Locking Safety Switch with M23 Quick Connect

The KL3-SS QC-M23 guard-locking safety interlock features a slimline, mirror-polished 316 stainless steel body and a holding force of up to 3000 N, helping keep medium to large guard doors securely closed until hazards have been removed.

The integrated M23 connector reduces installation time, minimises wiring errors, and makes maintenance or replacement faster and more reliable.

Corp din oțel inoxidabil calitate 316, lustruit oglindă

Forță de reținere până la F1Max 3000 N (300 kg)

Funcție de interblocare cu deblocare la alimentare

Cap rotativ, cu până la 8 poziții de intrare a actuatorului

Ingress protection up to IP69K (connector rated to IP67)

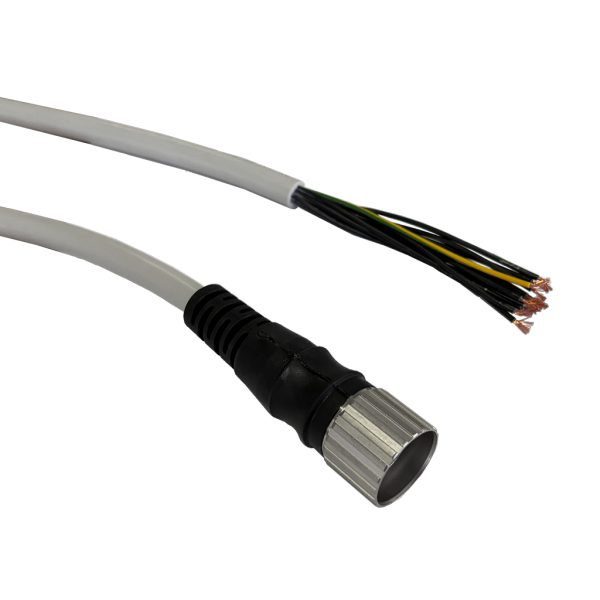

Connectivity via M23 12way male quick connect

Information with regard to UL Standards

Maximum temperature +40 °C

Terminal Torque e 6 lb ins. (0.7Nm)

Use 16-28AWG stranded copper conductors (rated 90°C).

Intended for same polarity use. A300 Pilot Duty. 240V. 3A

PF 0.38 or greater, tested for 6,000 cycles endurance

Use one polymeric conduit connection.

Not suitable for connection to rigid metal conduit

(Earth bonding terminal inside enclosure if required).

Note

Internal selector switch to be used as either power feed to LED 2 or as a voltage free auxiliary circuit to indicate the lock status.

Cere ofertă Pagina oficială ↗

Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.

Glisați lateral pentru a vedea tot tabelul

Cod produs	Descriere	Tensiune	Connection Type	Actuator
205003	KL3-SS QC M23 12way 24v (std release)	24v	QC M23 12way	No Actuator
205303	KL3-SS QC M23 12way 24v (no release)	24v	QC M23 12way	No Actuator
205403	KL3-SS QC M23 12way 24v (lid release)	24v	QC M23 12way	No Actuator
205003A	KL3-SS QC M23 12way 24v (std release) – std actuator	24v	QC M23 12way	A – Standard Actuator
205303A	KL3-SS QC M23 12way 24v (no release) – std actuator	24v	QC M23 12way	A – Standard Actuator
205403A	KL3-SS QC M23 12way 24v (lid release) – std actuator	24v	QC M23 12way	A – Standard Actuator
205003F	KL3-SS QC M23 12way 24v (std release) – flat actuator	24v	QC M23 12way	F – Flat Actuator
205303F	KL3-SS QC M23 12way 24v (no release) – flat actuator	24v	QC M23 12way	F – Flat Actuator
205403F	KL3-SS QC M23 12way 24v (lid release) – flat actuator	24v	QC M23 12way	F – Flat Actuator
205003HF	KL3-SS QC M23 12way 24v (std release) – HF actuator	24v	QC M23 12way	HF – Metal Flexible Actuator
205303HF	KL3-SS QC M23 12way 24v (no release) – HF actuator	24v	QC M23 12way	HF – Metal Flexible Actuator
205403HF	KL3-SS QC M23 12way 24v (lid release) – HF actuator	24v	QC M23 12way	HF – Metal Flexible Actuator
205003HFH	KL3-SS QC M23 12way 24v (std release) – HFH actuator	24v	QC M23 12way	HFH – Stainless Steel Flexible Actuator
205303HFH	KL3-SS QC M23 12way 24v (no release) – HFH actuator	24v	QC M23 12way	HFH – Stainless Steel Flexible Actuator
205403HFH	KL3-SS QC M23 12way 24v (lid release) – HFH actuator	24v	QC M23 12way	HFH – Stainless Steel Flexible Actuator
205006	KL3-SS QC M23 12way 110v (std release)	110v	QC M23 12way	No Actuator
205306	KL3-SS QC M23 12way 110v (no release)	110v	QC M23 12way	No Actuator
205406	KL3-SS QC M23 12way 110v (lid release)	110v	QC M23 12way	No Actuator
205006A	KL3-SS QC M23 12way 110v (std release) – std actuator	110v	QC M23 12way	A – Standard Actuator
205306A	KL3-SS QC M23 12way 110v (no release) – std actuator	110v	QC M23 12way	A – Standard Actuator
205406A	KL3-SS QC M23 12way 110v (lid release) – std actuator	110v	QC M23 12way	A – Standard Actuator
205006F	KL3-SS QC M23 12way 110v (std release) – flat actuator	110v	QC M23 12way	F – Flat Actuator
205306F	KL3-SS QC M23 12way 110v (no release) – flat actuator	110v	QC M23 12way	F – Flat Actuator
205406F	KL3-SS QC M23 12way 110v (lid release) – flat actuator	110v	QC M23 12way	F – Flat Actuator
205006HF	KL3-SS QC M23 12way 110v (std release) – HF actuator	110v	QC M23 12way	HF – Metal Flexible Actuator
205306HF	KL3-SS QC M23 12way 110v (no release) – HF actuator	110v	QC M23 12way	HF – Metal Flexible Actuator
205406HF	KL3-SS QC M23 12way 110v (lid release) – HF actuator	110v	QC M23 12way	HF – Metal Flexible Actuator
205006HFH	KL3-SS QC M23 12way 110v (std release) – HFH actuator	110v	QC M23 12way	HFH – Stainless Steel Flexible Actuator
205306HFH	KL3-SS QC M23 12way 110v (no release) – HFH actuator	110v	QC M23 12way	HFH – Stainless Steel Flexible Actuator
205406HFH	KL3-SS QC M23 12way 110v (lid release) – HFH actuator	110v	QC M23 12way	HFH – Stainless Steel Flexible Actuator
205009	KL3-SS QC M23 12way 230v (std release)	230v	QC M23 12way	No Actuator
205309	KL3-SS QC M23 12way 230v (no release)	230v	QC M23 12way	No Actuator
205409	KL3-SS QC M23 12way 230v (lid release)	230v	QC M23 12way	No Actuator
205009A	KL3-SS QC M23 12way 230v (std release) – std actuator	230v	QC M23 12way	A – Standard Actuator
205309A	KL3-SS QC M23 12way 230v (no release) – std actuator	230v	QC M23 12way	A – Standard Actuator
205409A	KL3-SS QC M23 12way 230v (lid release) – std actuator	230v	QC M23 12way	A – Standard Actuator
205009F	KL3-SS QC M23 12way 230v (std release) – flat actuator	230v	QC M23 12way	F – Flat Actuator
205309F	KL3-SS QC M23 12way 230v (no release) – flat actuator	230v	QC M23 12way	F – Flat Actuator
205409F	KL3-SS QC M23 12way 230v (lid release) – flat actuator	230v	QC M23 12way	F – Flat Actuator
205009HF	KL3-SS QC M23 12way 230v (std release) – HF actuator	230v	QC M23 12way	HF – Metal Flexible Actuator
205309HF	KL3-SS QC M23 12way 230v (no release) – HF actuator	230v	QC M23 12way	HF – Metal Flexible Actuator
205409HF	KL3-SS QC M23 12way 230v (lid release) – HF actuator	230v	QC M23 12way	HF – Metal Flexible Actuator
205009HFH	KL3-SS QC M23 12way 230v (std release) – HFH actuator	230v	QC M23 12way	HFH – Stainless Steel Flexible Actuator
205309HFH	KL3-SS QC M23 12way 230v (no release) – HFH actuator	230v	QC M23 12way	HFH – Stainless Steel Flexible Actuator
205409HFH	KL3-SS QC M23 12way 230v (lid release) – HFH actuator	230v	QC M23 12way	HFH – Stainless Steel Flexible Actuator
