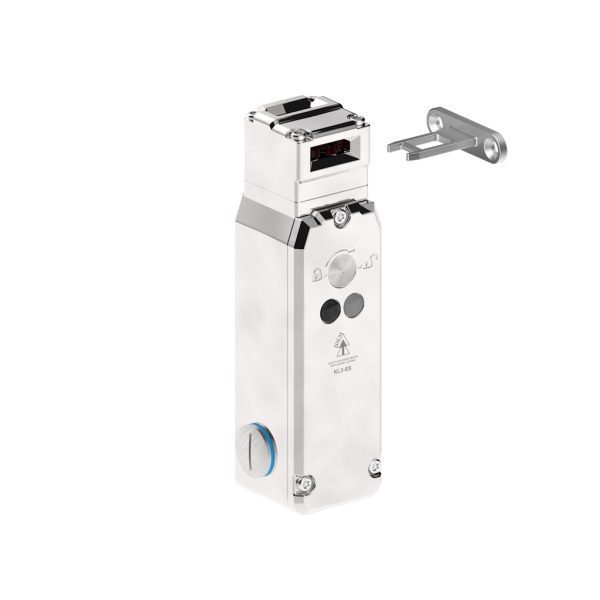

KL3-SS-P2L Guard Locking Safety Switch with Power to Lock
The KL3-SS-P2L is a power-to-lock guard-locking safety interlock with a hygienic, mirror-polished 316 stainless steel body. With a holding force of up to 3000 N, it is designed to keep medium to large guard doors securely closed until hazardous motion or processes have stopped.
It is suitable for applications requiring strict washdown procedures, including high-temperature, high-pressure washing and exposure to corrosive cleaning chemicals.
- Conduit
- 3 x M20 or ½” NPT (Quick Connect Available)
Information with regard to UL Standards
Type 1 enclosure. Maximum temperature 40°C. Use 16-28AWG stranded copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. A300 Pilot Duty. 240V. 3A. PF 0.38 or greater, tested for 6,000 cycles endurance Use one polymeric conduit connection. Not suitable for connection to rigid metal conduit.
Note
Suitable for Splash Zones in accordance with EHEDG guidelines.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
Glisați lateral pentru a vedea tot tabelul
| Cod produs | Descriere | Tensiune | Conduit Type | Actuator |
|---|---|---|---|---|
| 205021 | KL3-SS-P2L- M20 24v | 24v | M20 | No Actuator |
| 205021A | KL3-SS-P2L M20 24v – std actuator | 24v | M20 | A – Standard Actuator |
| 205021F | KL3-SS-P2L M20 24v – flat actuator | 24v | M20 | F – Flat Actuator |
| 205021HF | KL3-SS-P2L M20 24v – HF actuator | 24v | M20 | HF – Metal Flexible Actuator |
| 205021HFH | KL3-SS-P2L M20 24v – HFH actuator | 24v | M20 | HFH – Stainless Steel Flexible Actuator |
| 205022 | KL3-SS-P2L ½NPT 24v | 24v | ½NPT | No Actuator |
| 205022A | KL3-SS-P2L ½NPT 24v – std actuator | 24v | ½NPT | A – Standard Actuator |
| 205022F | KL3-SS-P2L ½NPT 24v – flat actuator | 24v | ½NPT | F – Flat Actuator |
| 205022HF | KL3-SS-P2L ½NPT 24v – HF Actuator | 24v | ½NPT | HF – Metal Flexible Actuator |
| 205022HFH | KL3-SS-P2L ½NPT 24v – HFH Actuator | 24v | ½NPT | HFH – Stainless Steel Flexible Actuator |
| 205025A | KL3-SS-P2L ½NPT 110v – std actuator | 110v | ½NPT | A – Standard Actuator |
