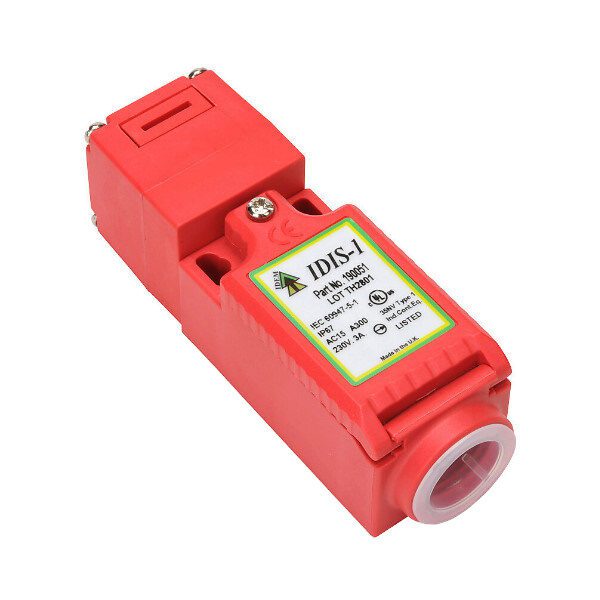

IDIS-1
Tongue Interlock Safety Switch
The compact body is only 31.5mm wide with industry standard 22mm fixing centres, ideal for restricted spaces.
- Housing/Fixing
- Compact, 22mm fixing profile
- Contacts
- Up to 3 N/C or 2 N/C + 1 N/O
- Connection
- Wired or M12 Quick Connect
Information with regard to UL Standards
Use 16 - 12AWG stranded copper insulated conductors rated 90ºC minimum. (75C. ampacity).
Terminal tightening torque 7ibs ins (0.8Nm)
Intended for same polarity use and one polymeric conduit connection
Not suitable for connection to a rigid metal conduit system
Electrical Rating Pilot Duty A300 240V.ac 3A. 6,000 cycles
Maximum Ambient Temperature +40ºC
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 190050 | IDIS-1 M20 2NC 1NO – no actuator |
| 190050A | IDIS-1 M20 2NC 1NO – angled actuator |
| 190050F | IDIS-1 M20 2NC 1NO – flat actuator |
| 190050PF | IDIS-1 M20 2NC 1NO – PF actuator |
| 190051 | IDIS-1 ½NPT 2NC 1NO – no actuator |
| 190051A | IDIS-1 ½NPT 2NC 1NO – angled actuator |
| 190051F | IDIS-1 ½NPT 2NC 1NO – flat actuator |
| 190051PF | IDIS-1 ½NPT 2NC 1NO – PF actuator |
| 190052 | IDIS-1 QC ½UNF 6way 2NC 1NO – no actuator |
| 190052A | IDIS-1 QC ½UNF 6way 2NC 1NO – angled actuator |
| 190052F | IDIS-1 QC ½UNF 6way 2NC 1NO – flat actuator |
| 190052PF | IDIS-1 QC ½UNF 6way 2NC 1NO – PF actuator |
| 190053 | IDIS-1 QC M12 8way 2NC 1NO – no actuator |
| 190053A | IDIS-1 QC M12 8way 2NC 1NO – angled actuator |
| 190053F | IDIS-1 QC M12 8way 2NC 1NO – flat actuator |
| 190053PF | IDIS-1 QC M12 8way 2NC 1NO – PF actuator |
| 190054 | IDIS-1 M20 3NC – no actuator |
| 190054A | IDIS-1 M20 3NC – angled actuator |
| 190054F | IDIS-1 M20 3NC – flat actuator |
| 190054PF | IDIS-1 M20 3NC – PF actuator |
| 190055 | IDIS-1 ½NPT 3NC – no actuator |
| 190055A | IDIS-1 ½NPT 3NC – angled actuator |
| 190055F | IDIS-1 ½NPT 3NC – flat actuator |
| 190055PF | IDIS-1 ½NPT 3NC – PF actuator |
| 190056 | IDIS-1 QC ½UNF 6way 3NC – no actuator |
| 190056A | IDIS-1 QC ½UNF 6way 3NC – angled actuator |
| 190056F | IDIS-1 QC ½UNF 6way 3NC – flat actuator |
| 190056PF | IDIS-1 QC ½UNF 6way 3NC – PF actuator |
| 190057 | IDIS-1 QC M12 8way 3NC – no actuator |
| 190057A | IDIS-1 QC M12 8way 3NC – angled actuator |
| 190057F | IDIS-1 QC M12 8way 3NC – flat actuator |
| 190057PF | IDIS-1 QC M12 8way 3NC – PF actuator |
| 190058 | IDIS-1 M20 1NC 1NO Snap – no actuator |
| 190058A | IDIS-1 M20 1NC 1NO Snap – angled actuator |
| 190058F | IDIS-1 M20 1NC 1NO Snap – flat actuator |
| 190058PF | IDIS-1 M20 1NC 1NO Snap – PF actuator |
| 190059 | IDIS-1 ½NPT 1NC 1NO Snap – no actuator |
| 190059A | IDIS-1 ½NPT 1NC 1NO Snap – angled actuator |
| 190059F | IDIS-1 ½NPT 1NC 1NO Snap – flat actuator |
| 190059PF | IDIS-1 ½NPT 1NC 1NO Snap – PF actuator |
| 190060 | IDIS-1 QC ½UNF 6way 1NC 1NO Snap – no actuator |
| 190060A | IDIS-1 QC ½UNF 6way 1NC 1NO Snap – angled actuator |
| 190060F | IDIS-1 QC ½UNF 6way 1NC 1NO Snap – flat actuator |
| 190060PF | IDIS-1 QC ½UNF 6way 1NC 1NO Snap – PF actuator |
| 190061 | IDIS-1 QC M12 8way 1NC 1NO Snap – no actuator |
| 190061A | IDIS-1 QC M12 8way 1NC 1NO Snap – angled actuator |
| 190061F | IDIS-1 QC M12 8way 1NC 1NO Snap – flat actuator |
| 190061PF | IDIS-1 QC M12 8way 1NC 1NO Snap – PF actuator |
