GLM

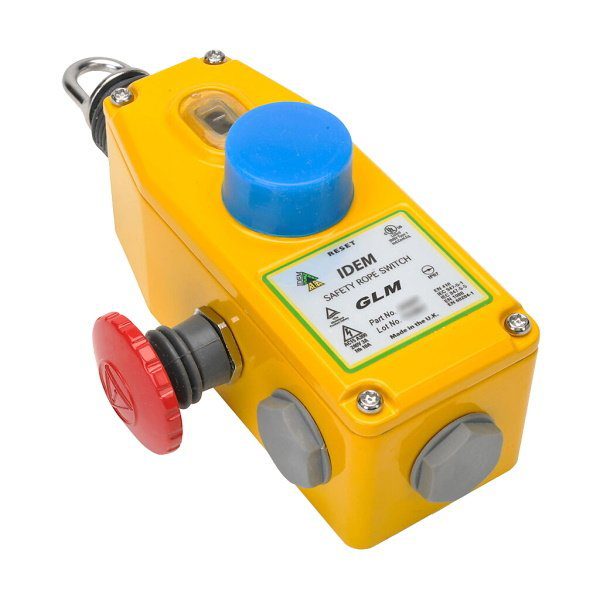

Guardian Line Mini Duty Rope Pull Safety Switches
The GLM mini duty safety rope pull switch has been designed to protect short to medium conveyor lengths, where protection is required up to 50m (using 2 switches) or up to 30m (using 1 switch).
- Body Material
- Die-Cast Metal; Painted Yellow
- Ingress Protection
- IP67
- Contacts
- 3-Pole or 4-Pole Contacts
- Lungime cablu (1 întrerupător)
- 30 m
- Lungime cablu (2 întrerupătoare)
- 50 m
Informații privind UL508
Type 1 Enclosures. Temperature rating 80C. Use 16 - 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range: 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 143001 | GLM M20 2NC 1NO |
| 143001-QCM12 | GLM QC M12 2NC 1NO |
| 143002 | GLM ½NPT 2NC 1NO |
| 143003 | GLM M20 3NC |
| 143004 | GLM ½NPT 3NC |
| 143005 | GLM M20 2NC 1NO E Stop |
| 143005-QCM12 | GLM QC M12 2NC 1NO E Stop |
| 143006 | GLM ½NPT 2NC 1NO E Stop |
| 143007 | GLM M20 3NC E Stop |
| 143008 | GLM ½NPT 3NC E Stop |
| 143050 | GLM M20 3NC 1NO |
| 143050-QCM23 | GLM QC M23 3NC 1NO |
| 143051 | GLM ½NPT 3NC 1NO |
| 143052 | GLM M20 2NC 2NO |
| 143052-QCM23 | GLM QC M23 2NC 2NO |
| 143053 | GLM ½NPT 2NC 2NO |
| 143054 | GLM M20 4NC |
| 143055 | GLM ½NPT 4NC |
| 143056 | GLM M20 3NC 1NO E Stop |
| 143056-QCM23 | GLM QC M23 3NC 1NO E Stop |
| 143057 | GLM ½NPT 3NC 1NO E Stop |
| 143058 | GLM M20 2NC 2NO E Stop |
| 143058-QCM23 | GLM QC M23 2NC 2NO E Stop |
| 143059 | GLM ½NPT 2NC 2NO E Stop |
| 143060 | GLM M20 4NC E Stop |
| 143061 | GLM ½NPT 4NC E Stop |
