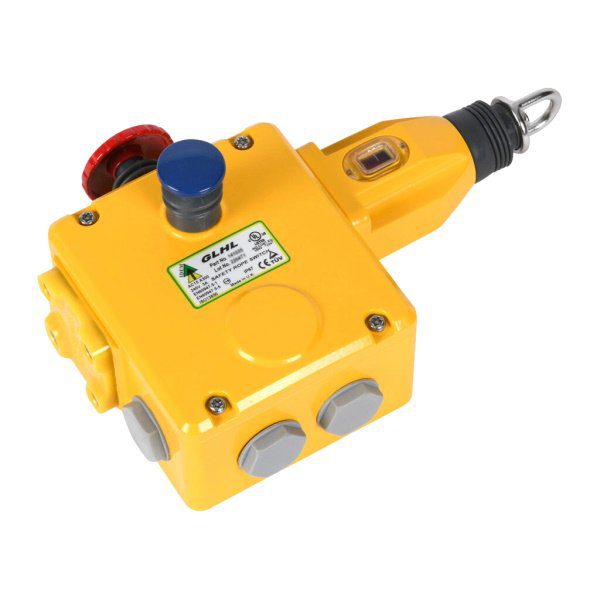

GLHL
Guardian Line Heavy Duty Safety Rope Pull Switches
The GLHL heavy duty safety rope pull switch has been designed to protect long conveyor lengths, where protection is required up to 125m (using 2 switches) or up to 100m (using 1 switch). The GLHL can be used on its own or in combination with the GLHD to connect up to 125m rope span from the left side.
- Body Material
- Die-Cast Metal; Painted Yellow
- Ingress Protection
- IP67
- Contacts
- 4NC + 2NO
- Lungime cablu (1 întrerupător)
- 100 m pe stânga
- Lungime cablu (2 întrerupătoare)
- 125 m pe stânga
Informații privind UL508
Type 1 Enclosures. Temperature rating 80C. Use 16 - 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range: 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
Note
FZ models for temperatures down to -40°C.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 141035 | GLHL ½NPT 4NC 2NO E stop |
| 141035-FZ | GLHL ½NPT 4NC 2NO E stop |
| 141037 | GLHL M20 4NC 2NO |
| 141037-FZ | GLHL M20 4NC 2NO |
| 141037-QCM12 | GLHL QC M12 4NC 2NO |
| 141037-QCM23 | GLHL QC M23 4NC 2NO |
| 141051 | GLHL M20 4NC 2NO E stop |
| 141051-FZ | GLHL M20 4NC 2NO E stop |
| 141051-QCM12 | GLHL QC M12 4NC 2NO E stop |
| 141051-QCM23 | GLHL QC M23 4NC 2NO E stop |
| 141057 | GLHL ½NPT 4NC 2NO |
| 141057-FZ | GLHL ½NPT 4NC 2NO |
Produse din aceeași categorie

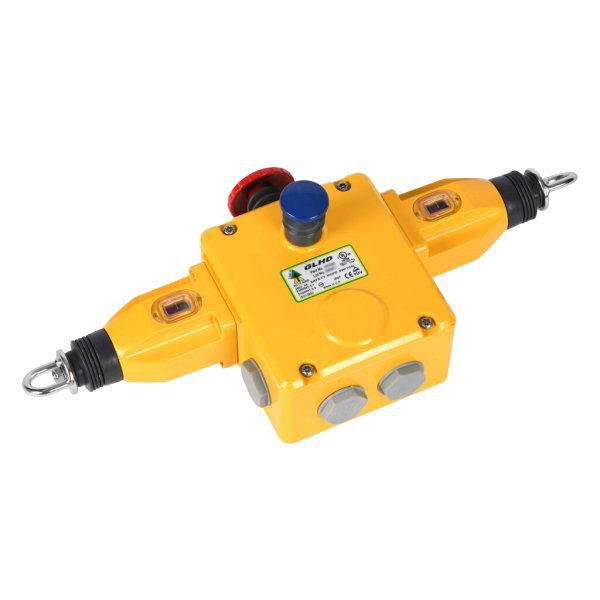

Guardian Line Heavy Duty Safety Rope Pull Switches with Dual Head
Guardian Line Heavy Duty Safety Rope Pull Switches with Dual Head and Indication (GLHD with LED)

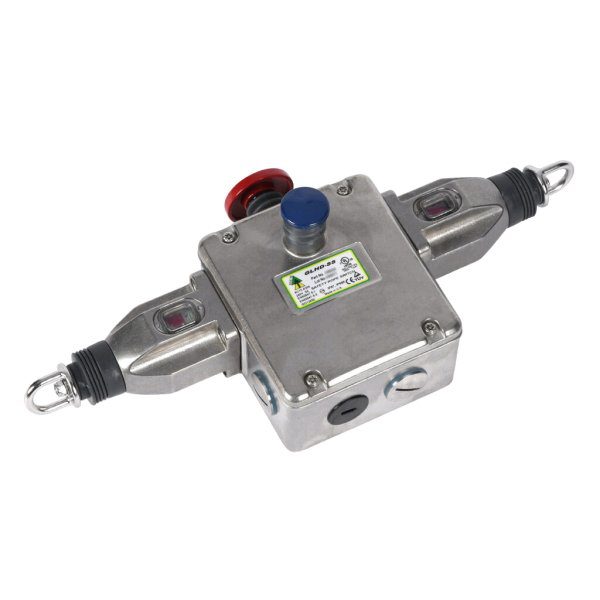

Guardian Line Heavy Duty Safety Rope Pull Switches with Dual Head
