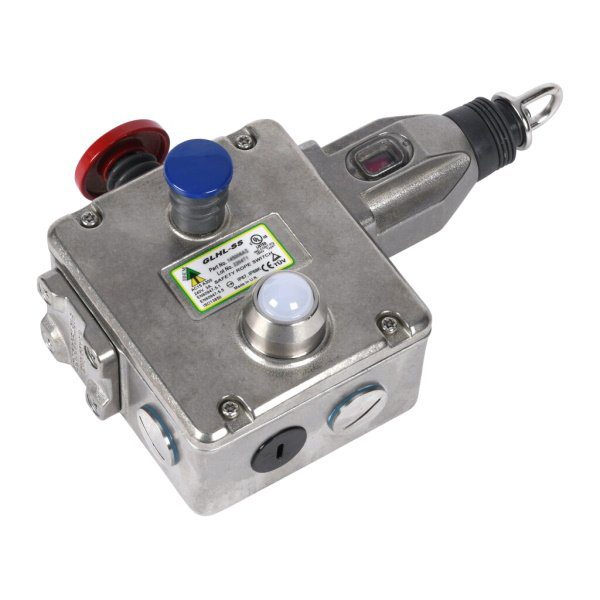

Guardian Line Heavy Duty Safety Rope Pull Switches with Indication (GLHL-SS with LED)
The GLHL-SS heavy duty safety rope pull switch has been designed to protect long conveyor lengths, where protection is required up to 125m (using 2 switches) or up to 100m (using 1 switch). The GLHL-SS can be used on its own or in combination with the GLHD-SS to connect up to 125m rope span from the left side.
- Body Material
- Stainless Steel 316
- Ingress Protection
- IP69K
- Contacts
- 4NC + 2NO
- LED Voltage
- 24Vdc, 100Vac or 230Vac
- Lungime cablu (1 întrerupător)
- 100 m pe stânga
- Lungime cablu (2 întrerupătoare)
- 125 m pe stânga
Informații privind UL508
Type 1 Enclosures. Temperature rating 80C. Use 16 - 12AWG copper conductors, rated 75ºC only. Intended for same polarity use and one polymeric conduit connection. Electrical Rating: A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Breaking PF >0.38 (100,000 cycles) 240V. 10A. carry only. Wire range: 16AWG – 12AWG Copper Torque 7lb/in (0.8Nm) LED powered by LVLC or Class 2 only. Earth bonding terminal inside enclosure if required.
Note
FZ models for temperatures down to -40°C.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 145005-AS | GLHL-SS M20 4NC 2NO E Stop & Steady LED 24V |
| 145005A | GLHL-SS M20 4NC 2NO E Stop & LED 24V |
| 145005A-FZ | GLHL-SS M20 4NC 2NO E Stop & LED 24V |
| 145005B | GLHL-SS M20 4NC 2NO E Stop & LED 110V |
| 145005B-FZ | GLHL-SS M20 4NC 2NO E Stop & LED 110v/120v |
| 145005C | GLHL-SS M20 4NC 2NO E Stop & LED 230V |
| 145005C-FZ | GLHL-SS M20 4NC 2NO E Stop & LED 230V |
| 145006A | GLHL-SS ½NPT 4NC 2NO E Stop & LED 24V |
| 145006A-FZ | GLHL-SS ½NPT 4NC 2NO E Stop & LED 24V |
| 145006B | GLHL-SS ½NPT 4NC 2NO E Stop & LED 110V |
| 145006B-FZ | GLHL-SS ½NPT 4NC 2NO E Stop & LED 110v/120v |
| 145006C | GLHL-SS ½NPT 4NC 2NO E Stop & LED 230V |
| 145006C-FZ | GLHL-SS ½NPT 4NC 2NO E Stop & LED 230V |
| 145053-AS | GLHL-SS M20 4NC 2NO LED Steady Red/Green 24V |
| 145053A | GLHL-SS M20 4NC 2NO LED 24V |
| 145053A-FZ | GLHL-SS M20 4NC 2NO LED 24V |
| 145053B | GLHL-SS M20 4NC 2NO LED 110V |
| 145053B-FZ | GLHL-SS M20 4NC 2NO LED 110v/120v |
| 145053C | GLHL-SS M20 4NC 2NO LED 230V |
| 145053C-FZ | GLHL-SS M20 4NC 2NO LED 230V |
| 145055A | GLHL-SS ½NPT 4NC 2NO LED 24V |
| 145055A-FZ | GLHL-SS ½NPT 4NC 2NO LED 24V |
| 145055B | GLHL-SS ½NPT 4NC 2NO LED 110V |
| 145055B-FZ | GLHL-SS ½NPT 4NC 2NO LED 110v/120v |
| 145055C | GLHL-SS ½NPT 4NC 2NO LED 230V |
| 145055C-FZ | GLHL-SS ½NPT 4NC 2NO LED 230V |
